7 CABLE LENGTHS
When connecting Blackline systems to an amplifier, it is recommended that
the return resistance of the cable used is less than one tenth of the nominal
impedance of the system or systems in parallel. The table below gives an
indication of the maximum permissible cable runs for various conductor
cross-sectional areas.
Conductor CSA Maximum Cable Run
4 ohms 8 ohms 16 ohms
1.0mm
2
11m 22m 44m
1.5mm
2
17m 34m 68m
2.0mm
2
22m 44m 88m
2.5mm
2
29m 58m 116m
4.0mm
2
44m 88m 176m
6.0mm
2
66m 132m 264m
8 SYSTEM CONFIGURATIONS
There are many different system combinations possible with the Blackline
Series. Shown below are some typical configurations. The number of full-
range or mid/high systems required to match the efficiency of one sub-bass
system is shown as a recommended cabinet ratio (RCR). Please note that
for simplicity only the left channel is shown and that each line in the
diagram represents a pair of wires.
8.1 Passive systems
F12/F15 Full-range
Because the F12 and F15 are passive systems embodying correct acoustic
design principles, they can be used without a controller provided
recommended amplifier power is not exceeded and care is taken to avoid
amplifier clipping. Use of an optional M3 controller with its system-specific
low frequency EQ and built-in limiters will result in improved bass response
and system protection.
Martin Audio – Blackline Series
ENGLISH
8

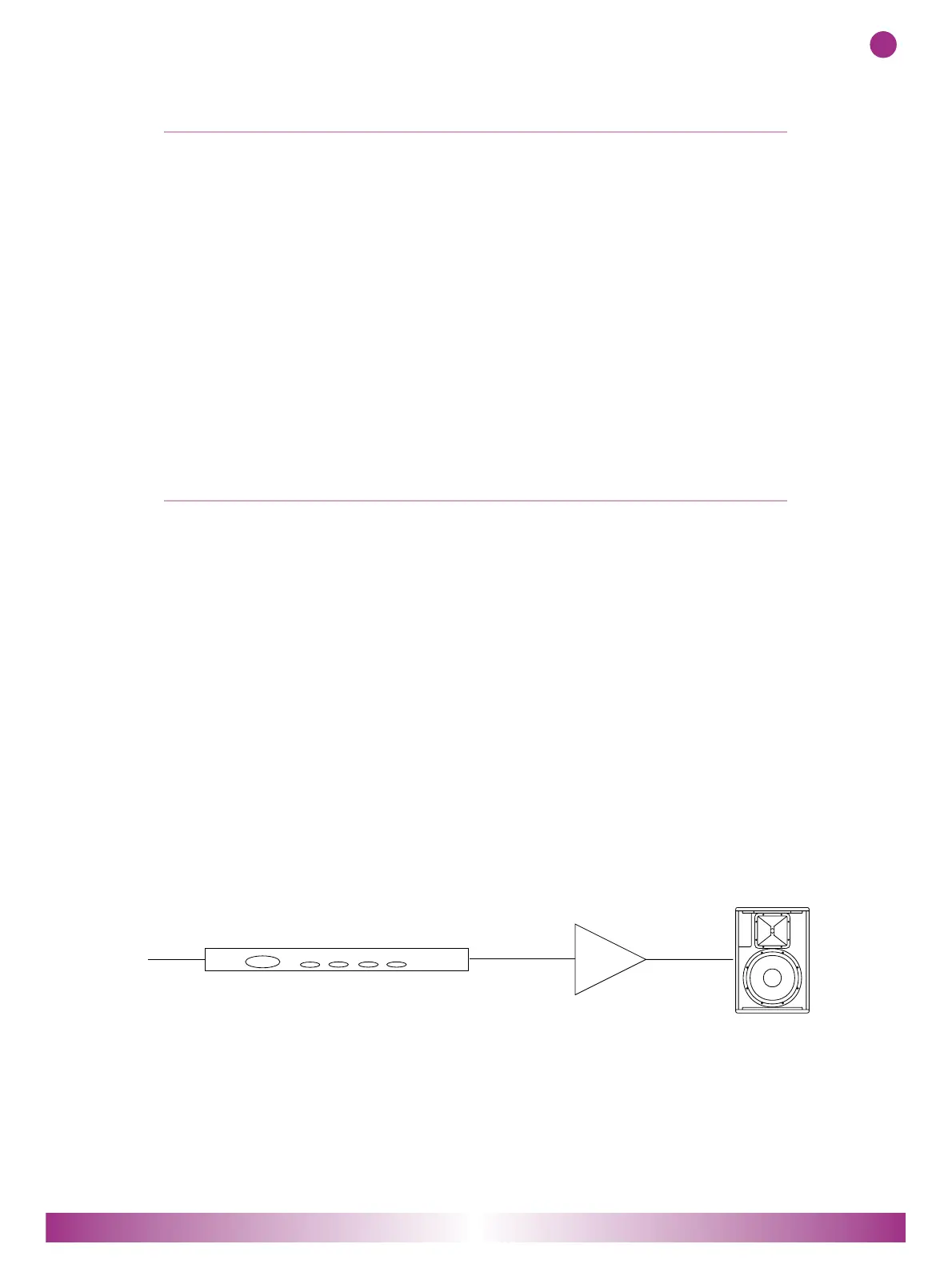

F12/F15
Optional M3 Controller
M3-F12-F15
Ch2 Out
Left In
Amplifier
All material © 2007. Martin Audio Ltd. Subject to change without notice.
