All material © 2007. Martin Audio Ltd. Subject to change without notice.

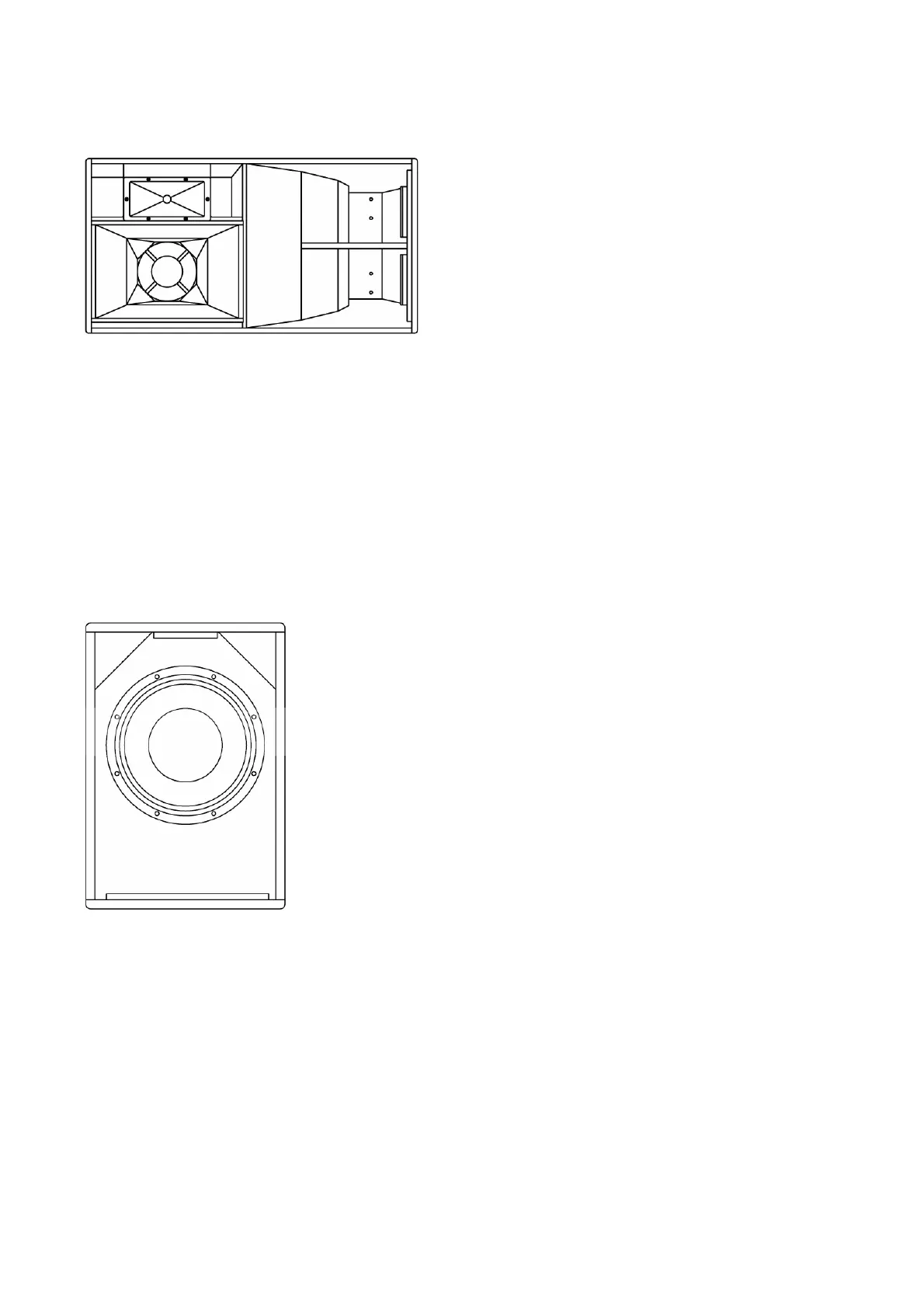

H3H
+
The Blackline H3H
+
is a very high performance, all-horn, three-way system in a single, wide-bandwidth
package. The H3H
+
offers all the attributes of the standard H3
+
but is horizontally formatted making it
suitable for venues with restricted ceilings height.
The H3H
+
is bi-amplified and must be used with a system controller. Martin Audio M3
+
, DX1, DX2 or
Engineer system controllers may be configured to provide the recommended 2-way crossover and limiter
functions.
Martin Audio DX1, DX2 or Engineer - or series connected M3
+
system controllers - may also be used to
configure H3H
+
systems for additional sub-bass cabinets – e.g. H3H
+
with S218
+
.
3.4 Sub-bass systems
S12
+
The Blackline S12
+
is an extremely compact sub-bass system. It has been designed for use with the F8
+
and F10
+
full-range loudspeakers in situations where extended low frequency output and increased system
headroom are required.
The S12
+
has an integral, user-selectable 120Hz passive crossover. When switched to Passive mode, the
S12
+
may be parallel-connected to F8
+
or F10
+
systems to provide low frequency extension without the
need for an additional amplifier.
An M3
+
, DX1, DX2 or Engineer system controller may also be used to provide an active crossover with
enhanced control facilities.
The S12
+
is provided with a top hat fitting that can be used to pole mount an F8
+
or F10
+
above the
enclosure.
