ML-503 / Product Description
4, 7, 9. Serial Digital “BNC” Connectors
SDI input and non-reclocking loop out. Compatible with SD-SDI, HD-SDI
and 3G-SDI inputs. Embedded audio may be monitored at the Headphone
jack and visually monitored on-screen.
5, 8, 10. HDMI Digital Video Connectors
HDMI input and loop out. Embedded audio may be monitored at the
Headphone jack and visually monitored on-screen.
6. USB Service Ports
USB input - Used for firmware updates and Lookup Table “LUT” loading.
11. Ethernet LAN RJ-45 Connector
LAN port. The monitor can be operated from a Windows™ computer using the
PCSet Terminal application available from the Marshall Electronics website.

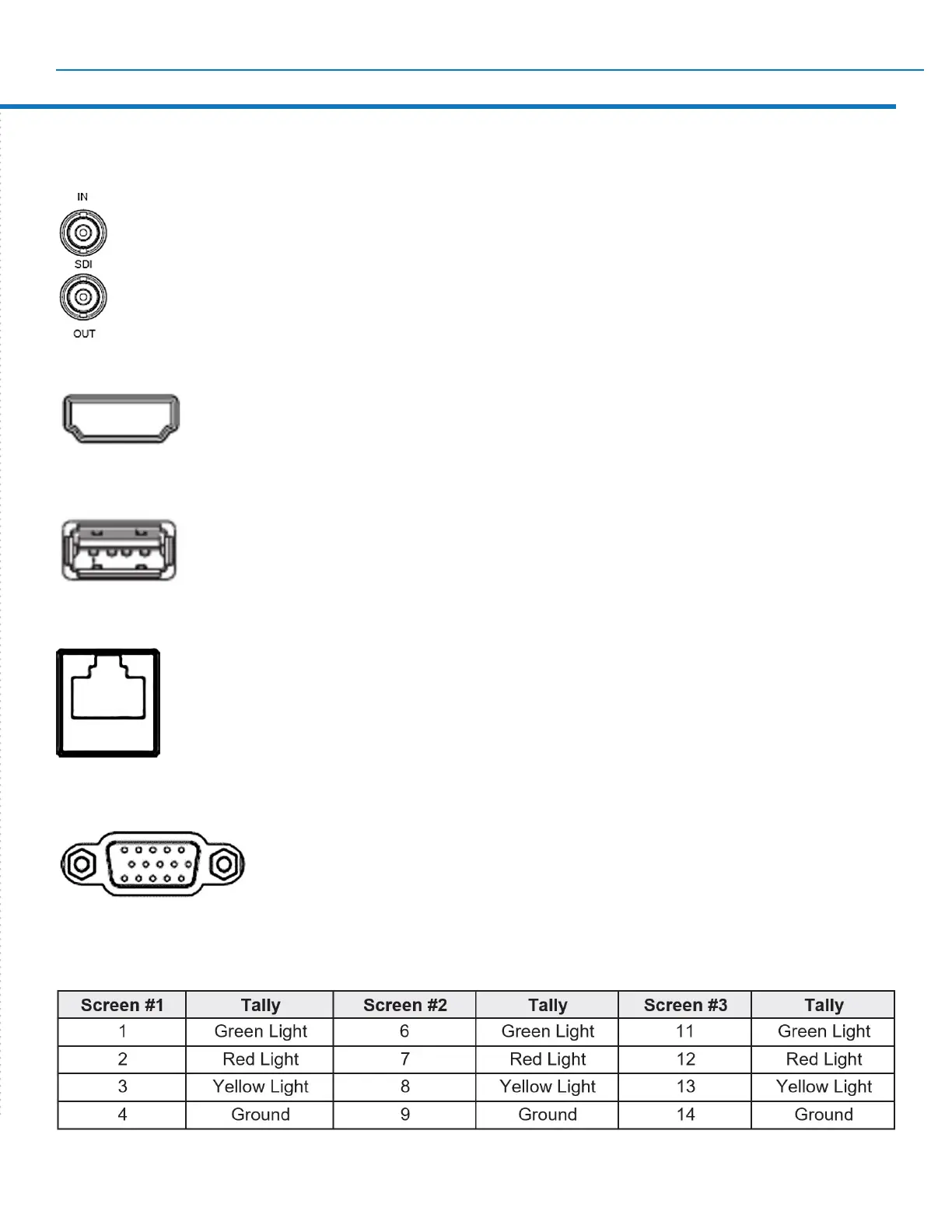

12. TALLY Connector
A red, green, or yellow on-screen tally bar can be made to ap-
pear by grounding the appropriate pin on the Tally connector as
shown in the table. It is compatible with “open collector” and
“pull down” type GPI controls. CAUTION: External power should never be applied to
the Tally connector.
