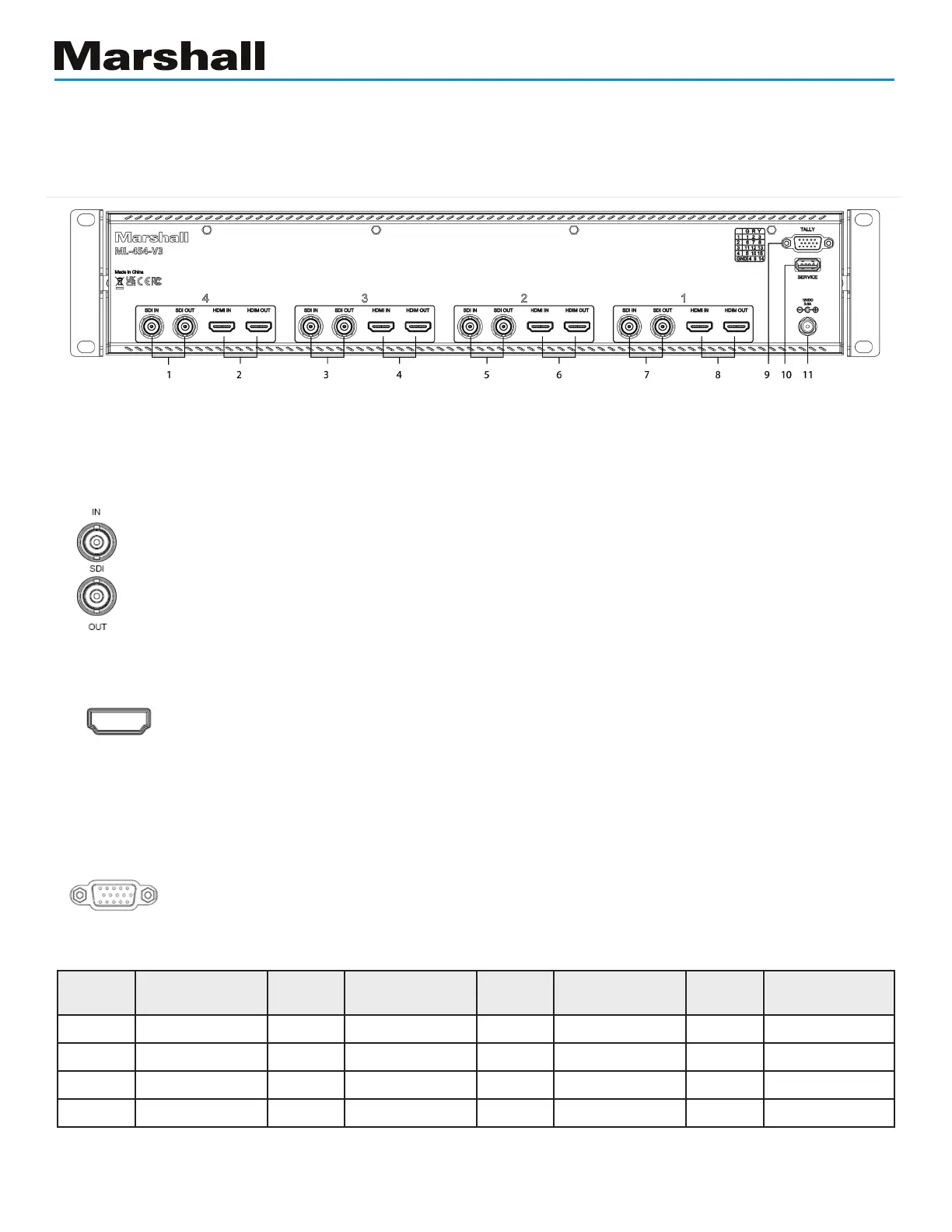

BACK PANEL FEATURES
Note: Each screen has its own full complement of video input connections.
Power and TALLY connectors apply to all screens
1, 3, 5, & 7. Serial Digital “BNC” Connectors
SDI input and loop out. Compatible with SD-SDI, HD-SDI and 3G-SDI inputs. Embedded
audio may be monitored at the Headphone jack and visually monitored on-screen.
NOTE: SDI loop outs remain operational when screen power is turned OFF.
2, 4, 6, & 8. HDMI Digital Video Connectors
HDMI input and loop out. Embedded audio may be monitored at the Headphone jack and
visually monitored on-screen.
NOTE: HDMI loop outs remain operational when screen power is turned OFF.
9. TALLY Connector
The on-screen tally indicator at the center-top of each monitor is controlled by
grounding the appropriate pin on the Tally connector as shown in the table.
Caution: External power should never be applied to the Tally connector.
Screen
#1
Tally
Screen
#2
Tally
Screen
#3
Tally
Screen
#4
Tally
1
Green Light
6
Green Light
11
Green Light
5
Green Light
2
Red Light
7
Red Light
12
Red Light
10
Red Light
3
Yellow Light
8
Yellow Light
13
Yellow Light
15
Yellow Light
4
Ground
9
Ground
14
Ground
