1. Required Hardware

Ensure that all required hardware is included before beginning the installation.

 4 x 3/8-16 Concrete anchors, washers, and nuts, torque nuts to 247 in-lbs. [27.9 Nm]

 12 x 6-32 flat head screws (installed on unit), torque to 10 in-lbs. [1.1 Nm]

 4 x 10-32 button head screws, torque to 30 in-lbs. [3.4 Nm]

 2 x 1/4-20 socket head cap screw, nylon locking, torque to 78 in-lbs. [8.9 Nm]

2. Mount Installation

2.1 Pendant Mount

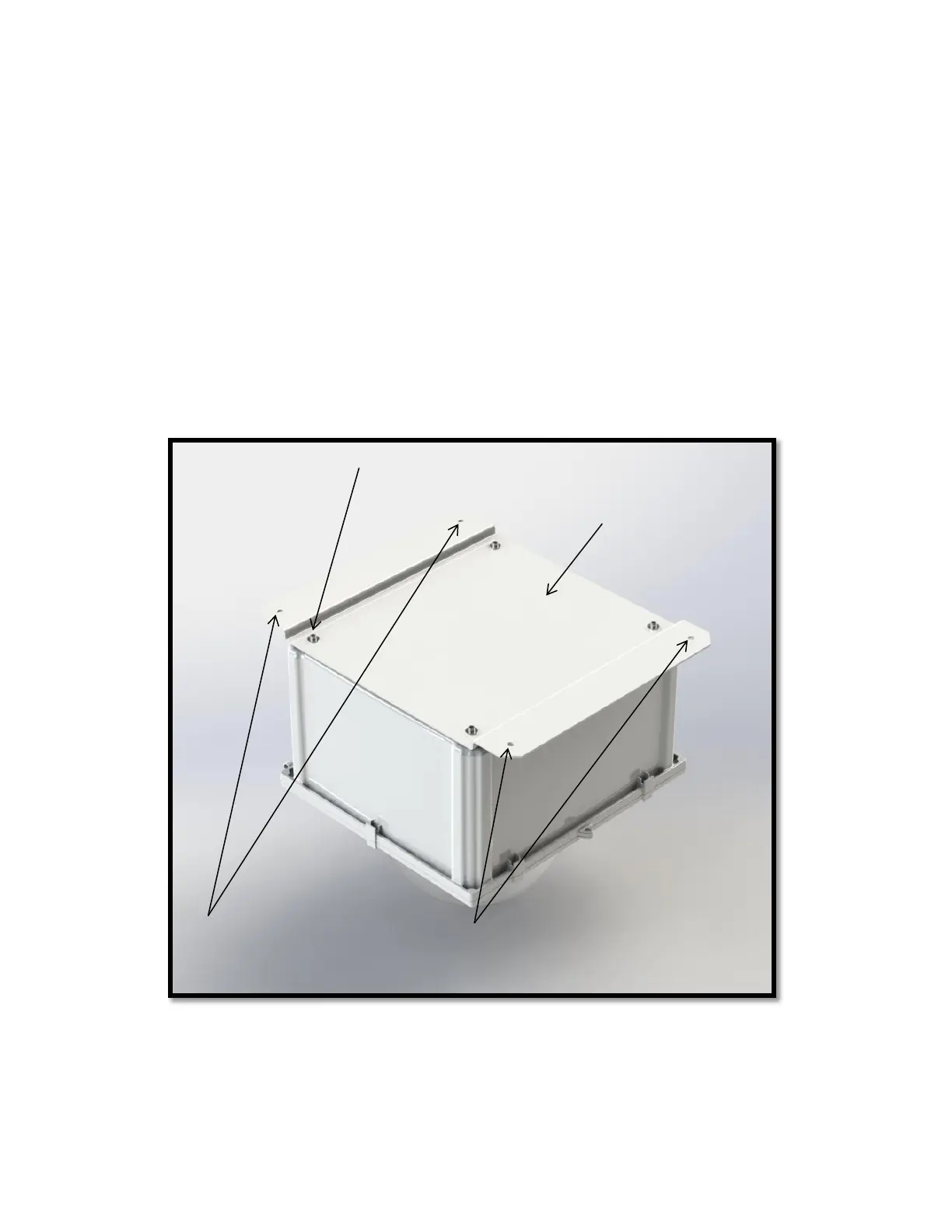

2.1.1 Separate the Mounting Plate form the enclosure. Place hardware aside in a safe place for

later re-installation.

2.1.2 Hold the Mounting Plate up to the desired mounting location. Using the Mounting Plate as a

template, mark the mounting surface at the location of the 4 indicated mounting holes for

MOUNTING PLATE

REMOVE SCREWS AND WASHERS

4 PLACES

MARK SURFACE USING THESE HOLES
