CV730-ND3/N D3W
www.marshall-usa.com

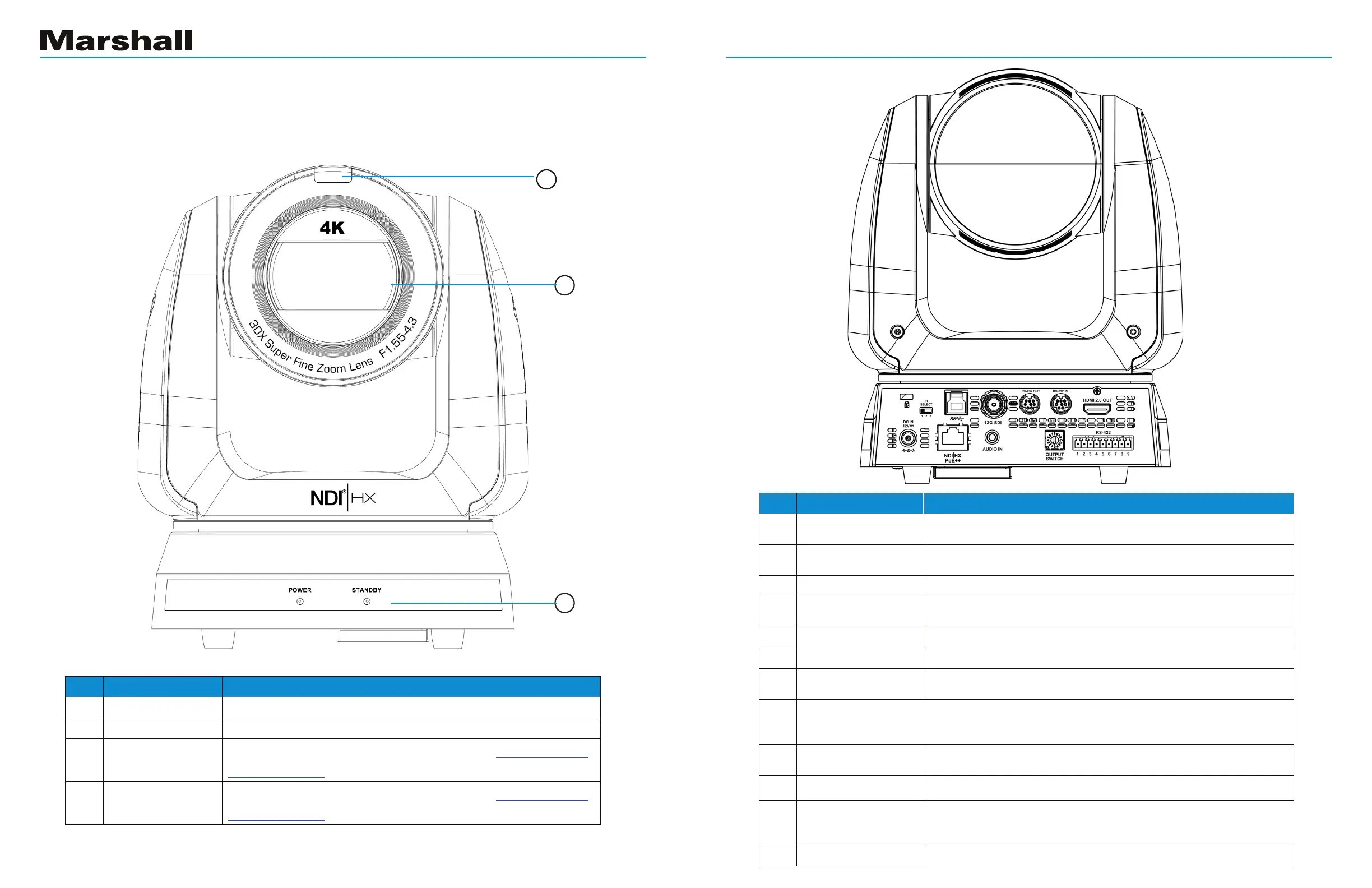

2.1 I/O Functions Introduction
2.1.1 Front View
1
2
3
Chapter 2: Function Introduction
2.1.2 Back View
NO. Item Function Descriptions
1. RS-232 output
RS-232 output port, at most 7 cameras can be connected in a
serial connection
2. RS-232 input
RS-232 input port, at most 7 cameras can be connected in a
serial connection
3. HDMI 2.0 output
HDMI 2.0 output (Audio output supported)
4. RS-422 port
RS-422 port, at most 7 cameras can be connected in a serial
connection
5. OUTPUT SWITCH Adjust the resolution setting. The default is 3840 x 2160/ 59.94p
6. Audio input Support Line In / Mic In
7. Network port
Network cable connection port supports routers or hubs of PoE++
(IEEE 802.3bt) with power supply
8.
DC 12V power
connector
AC power supply port
9. IR SELECT
The remote control ID setting is only controlled after
corresponding to the Camera Select on the remote control
10. Kensington lock hole Safety lock slot
11. USB 3.0 port
Connects to the USB port of the computer and provides USB
signal images
<Remark> Support up to 3840 x 2160/ 29.97p
12. 12G-SDI output 12G-SDI output (Audio output supported)
NO. Item Function Descriptions
1. Tally Light Display the Tally Lamp status of the camera
2. Camera lens
3.
Power LED
indicator
Display the status of the camera, please refer to 2.3 Description
of LED indicator
4.
Standby LED
indicator
Display the status of the camera, please refer to 2.3 Description
of LED indicator
30X
Camera lens
