7 8
CV630-BI/WI/ND3/ND3W
User Manual

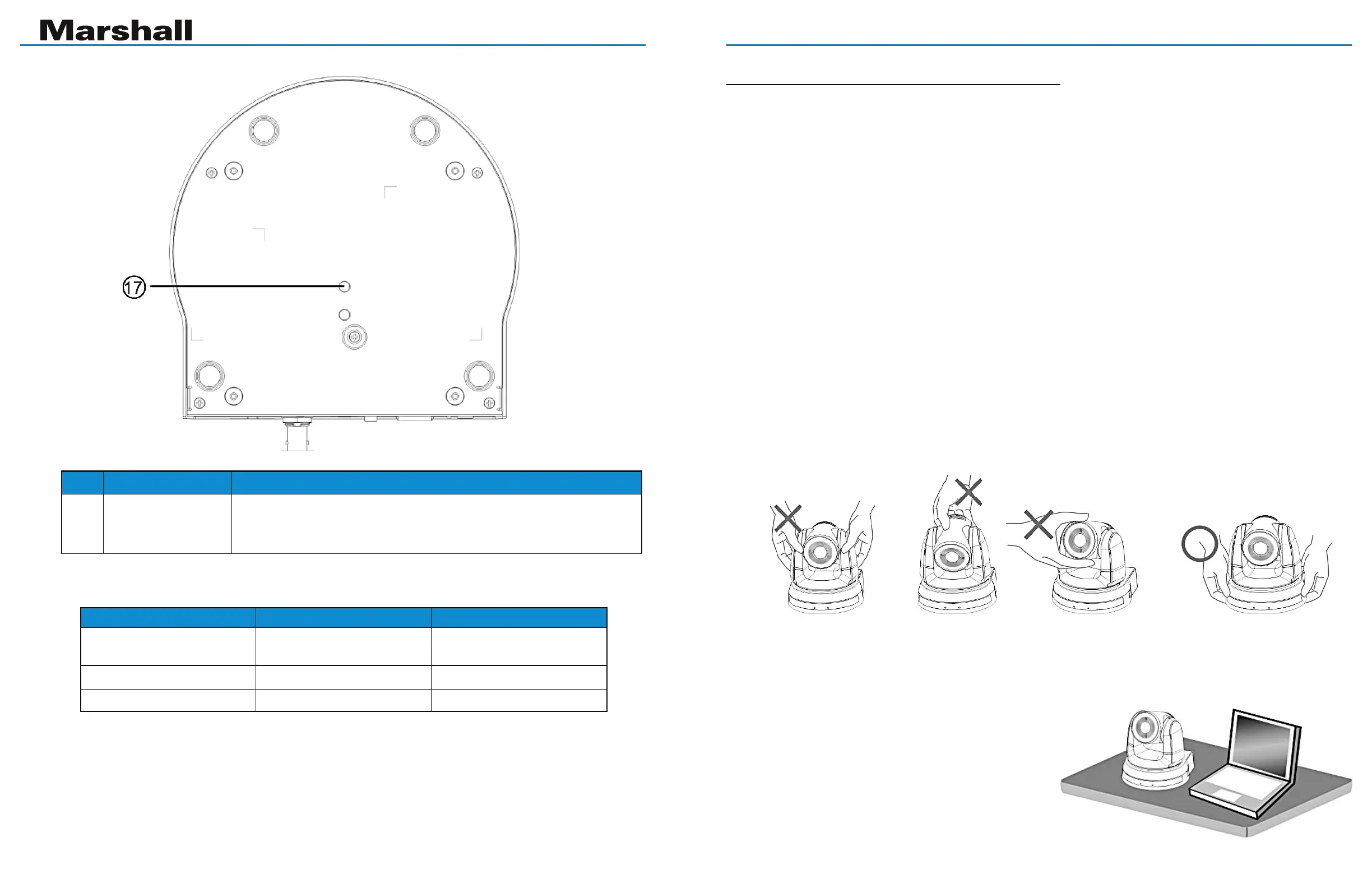

3.3: Tally Indicator Light Function Description
The tally indicator light function can be enabled through RS-232 command.
Please refer to RS-232 command set document.
NO. Item Function Descriptions
17.
Tripod lock hole
The camera is mounted on a (specification) 1/4” - 20 UNC
tripod
3.2: Description of LED indicator
Status
Power
Standby
Startup in progress
(initialization)
Green light Orange light
In use Green light No indicator
In standby mode No indicator Orange light
4.1 Preparation before installation
Installation and connection of the camera requires special skills. To install by yourself, please follow
necessary steps, ensure steady and tight installation of the device, and pay attention to your safety
to avoid any accident.
4.1.1 Ensure the safety of the installation environment.
Please do not install the device on unstable ceiling or in a place where the device is in
danger of falling to avoid any accident.
4.1.2 Please check whether accessories in the box are complete or not.
Please contact the supplier for any shortage, and make sure to keep the accessories in the box intact.
4.1.3 Please choose a proper place for installation of camera in advance.
Please determine an installation place according to the following requirements
4.1.3.1 Conrm the position for the object to be captured.
4.1.3.2 Conrm whether the camera is set at a proper distance from other light sources.
4.2 Instruction for installation
4.2.1 I would like to install camera on the desk
4.2.1.1 Precautions for installation
• Please install the machine on a at desk
• Do not grab the camera head by hand when handling the device
• Do not rotate the camera head by hand, improper rotation may result in breakdown of the camera
Chapter 4: Instruction for installation
4.2.1.2 Installation steps
1. Please adjust DIP switch at rst prior to installation
Please refer to Chapter 7 DIP Switch Setting for the relevant descriptions on DIP switch.
2. Place the camera on a at desk directly to ensure the normal vertical and horizontal
operation of the machine
4.2.2 I would like to install the camera on the ceiling
4.2.2.1 Prepare for the parts and equipment
required during the installation
