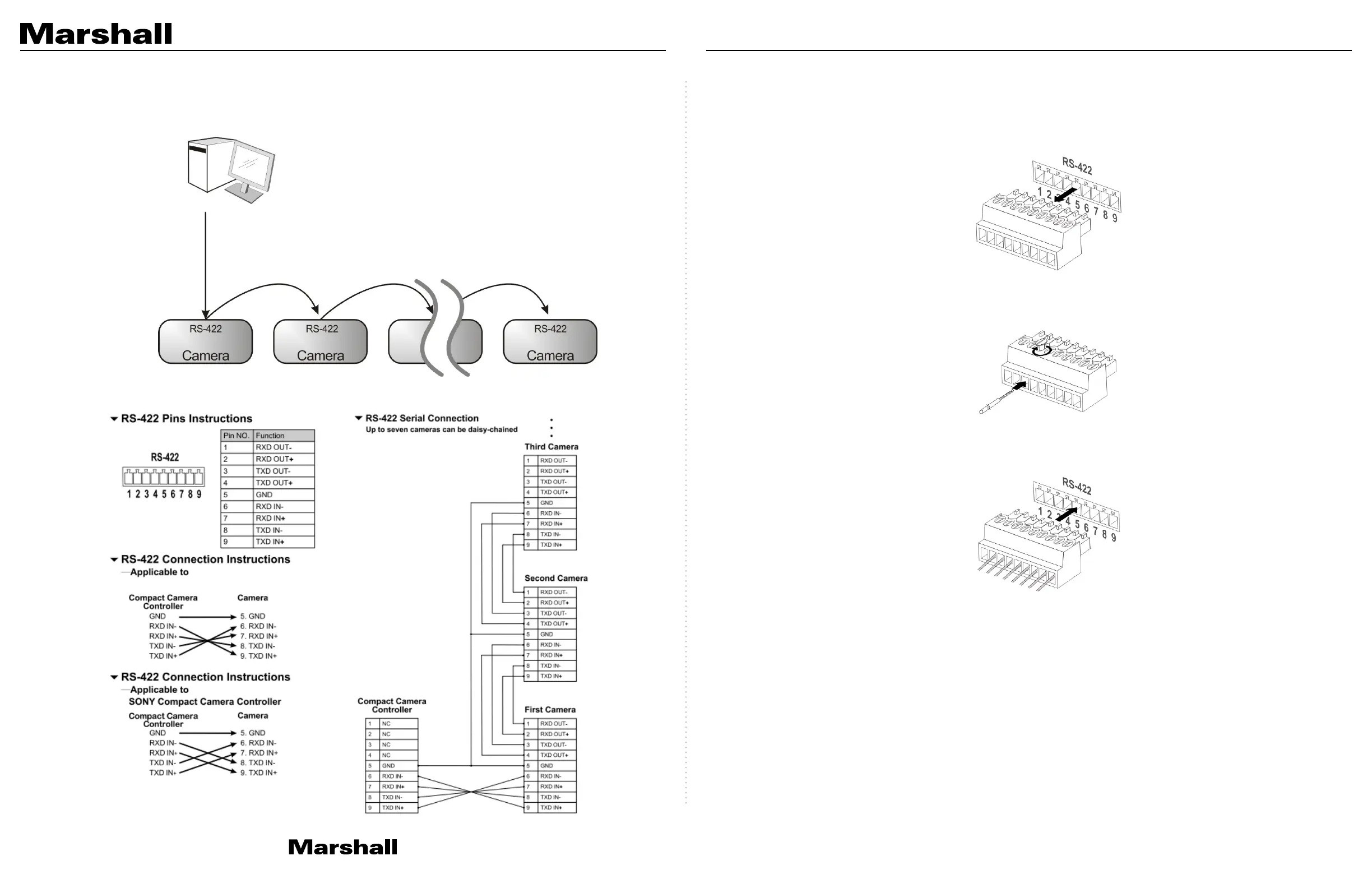

4.3.6 Connecting RS-422
With RS-422, at most 7 Marshall cameras can be connected.
<Note> When RS-422 connection is being used, do not use RS-232 connection.
RS-422 pins definition instructions
Marshall
RS-422 connection instructions
1. Hold the two sides of RS-422 connector and pull out in the direction shown by the arrow
in the figure below
2. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the connector
hole; then use flat screwdriver to fix it
3. Insert the wired RS-422 connector back to the Camera. Now the connection is
completed
Marshall Compact Camera Controller
CV630-NDI Manual
