www.marshall -usa.com
9 10
CV630-BI/WI/ND3/ND3W
User Manual
1. Accessories in the box (metal plates A, B, M3 screw silver x 8, black x 2)
2. Screw for locking on ceiling mounted hanger x 4
3. Drilling machine, screwdriver, ladder

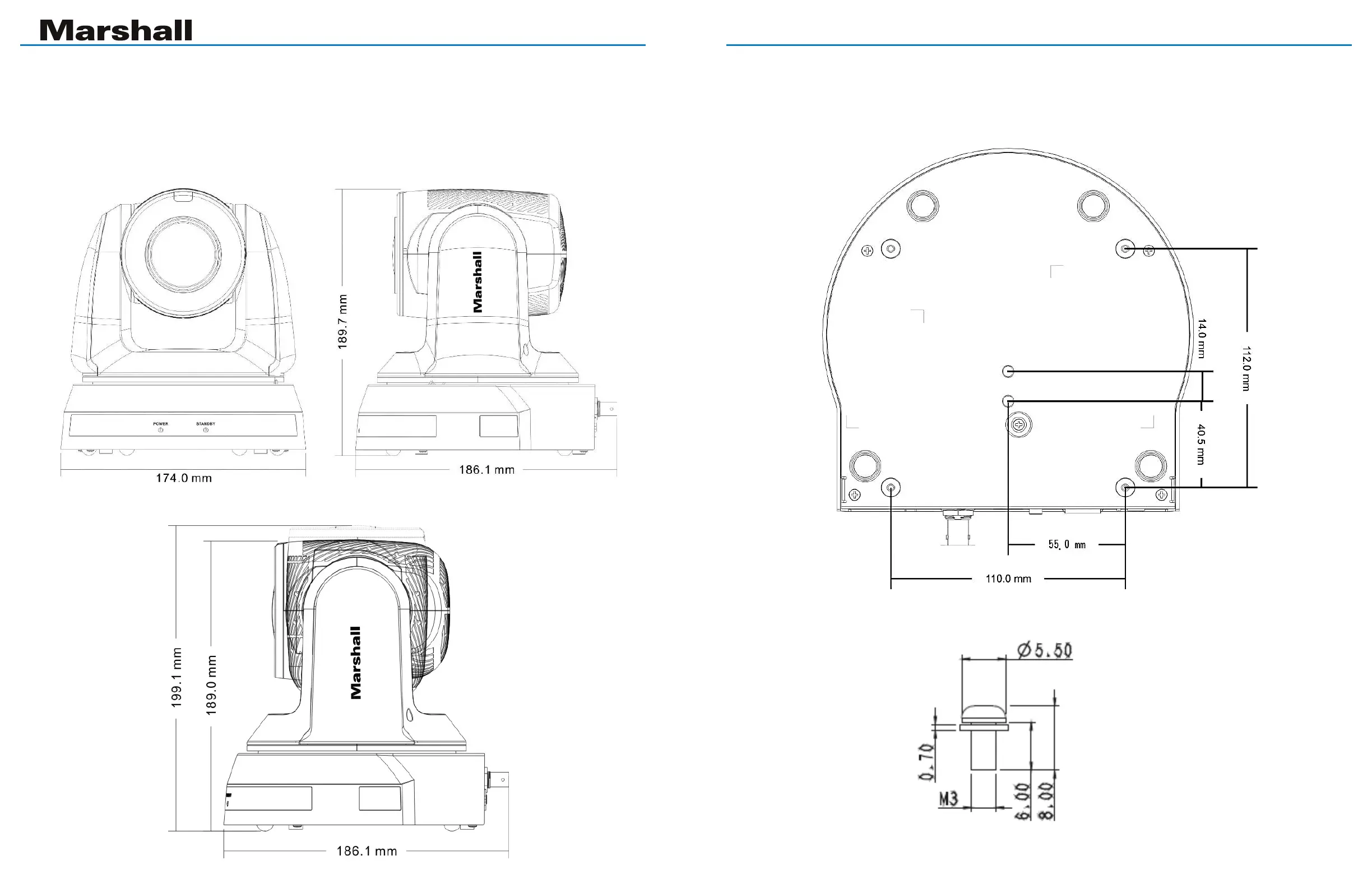

4.2.2.2 Camera Size
L x W x H : 174 x 187 x 190 mm Weight: 2.0 Kg
4.2.2.3 Max. rotation dimension of camera
4.2.2.4 Size Diagram
1. Bottom of machine
The camera can be mounted on a 1/4”, -20 UNC PTZ tripod deck by using the lock holes
on the bottom for the tripod.
2. Metal Plate size diagram
• Metal plate A - machine side
Metal plate A - Locking Screw
