CV630-BI/WI/ND3/ND3W
User Manual
•

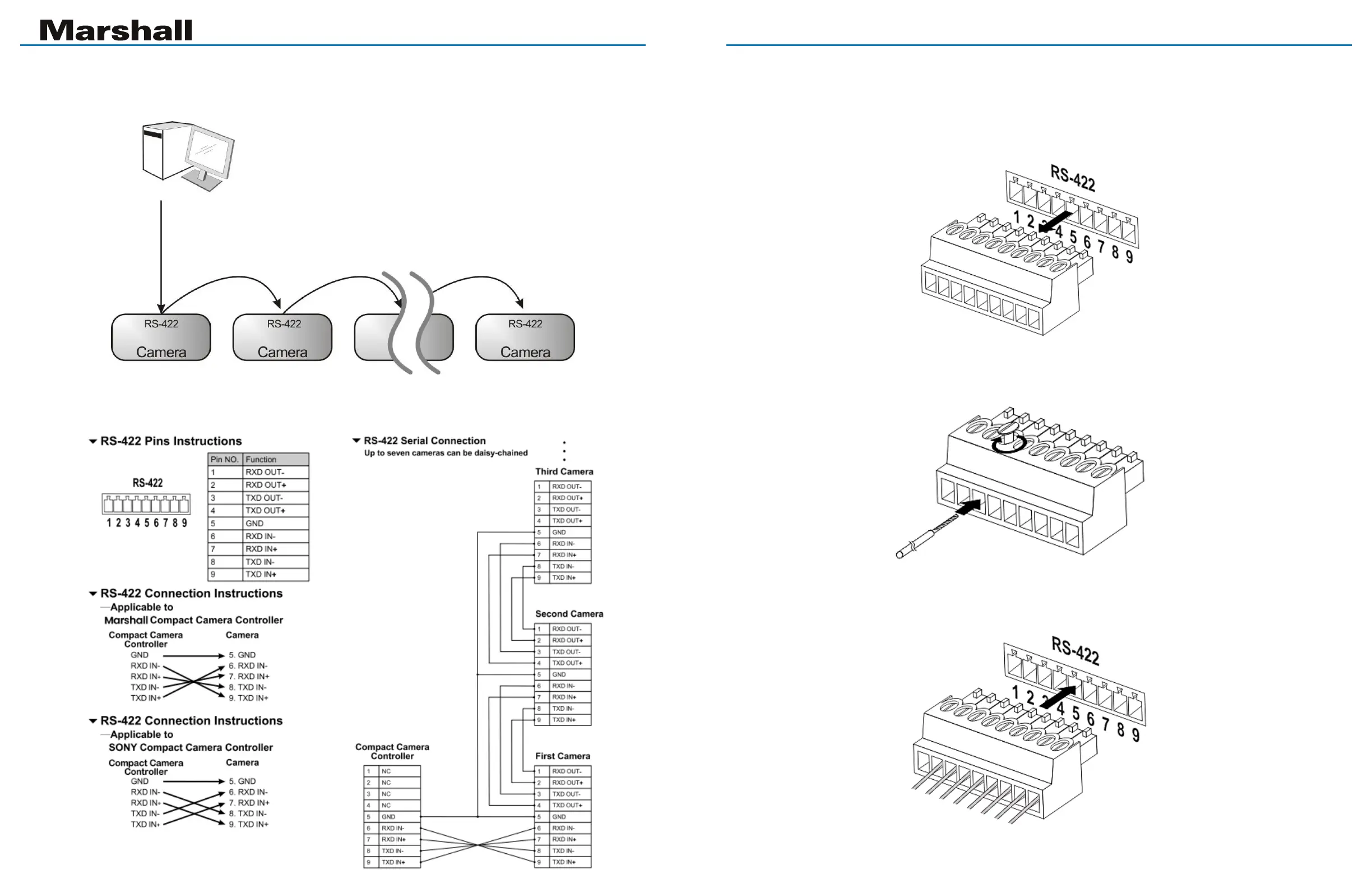

RS-422 PINS DEFINITION INSTRUCTIONS
4.3.6 Connecting RS-422
CAUTION: When RS-422 connection is being used, do not use RS-232 connection.
•
RS-422 CONNECTION INSTRUCTIONS
1. Hold the two sides of RS-422 connector and pull out in the direction shown by the arrow
in the gure below
2. Peel off a section of copper wire (AWG Nos. 28 to 18) and insert it into the connector hole; then use at
screwdriver to x it
3. Insert the wired RS-422 connector back to the Camera. Now the connection is completed
