CV620-B12/W12 User Manual
www.marshall-usa.com

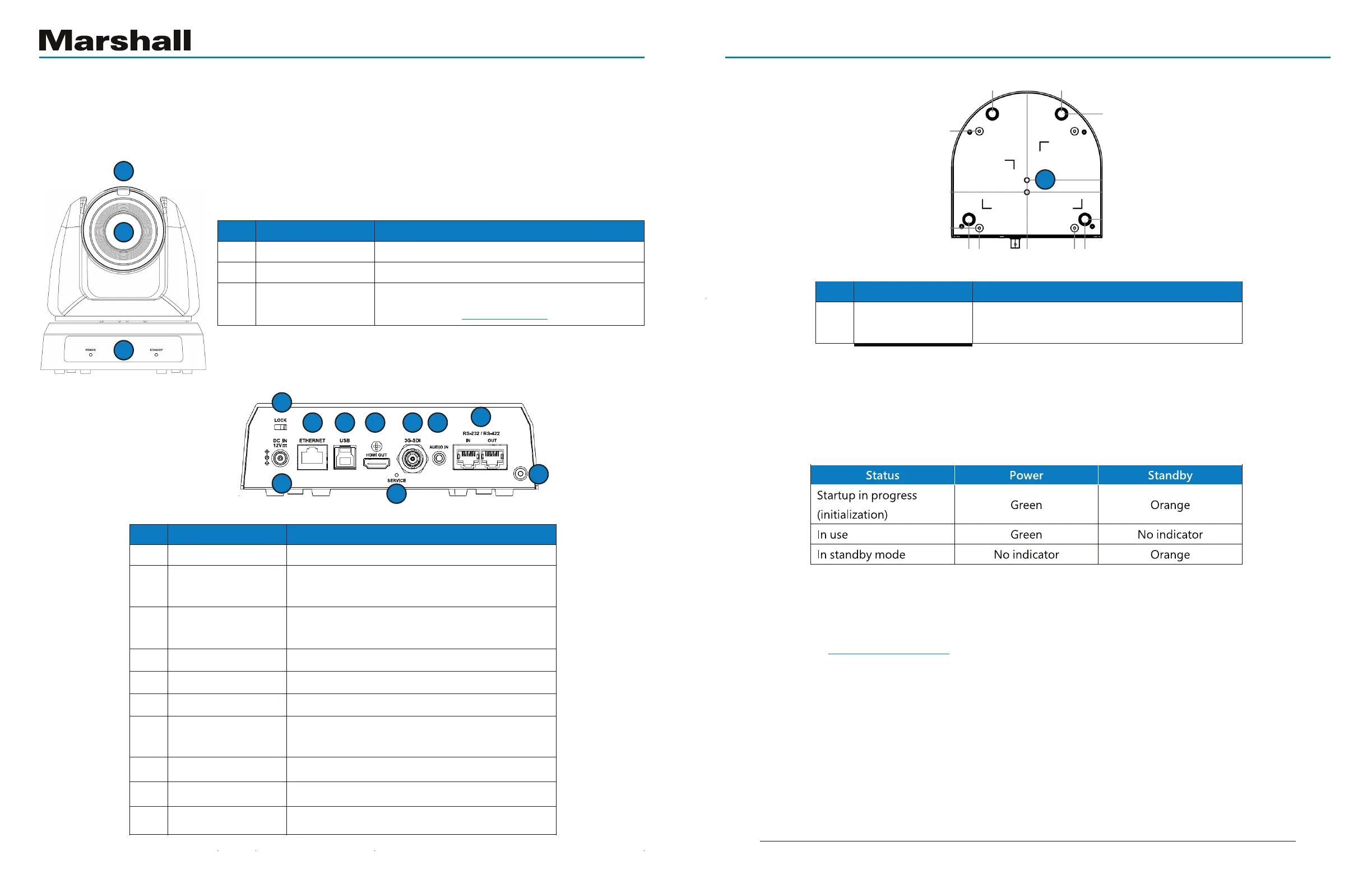

Chapter 2: Function Introduction
2.1 I/O Functions Introduction
1
2
3
NO. Item Function Descriptions
14 Tripodlockhole Thecameraismountedona(specication)
1/4”-20 UNC tripod
4
5 6 7 8 9
10
11
12
13
14
2.2 LED Indicator
2.3 Tally Lamp
The Tally lamp function may be enabled through the RS232 command.
Please refer to RS-232 command set document
NO. Item Function Descriptions
1 Camera lens HD camera lens
2 Tally Lamp Displaying the Tally Lamp status of the camera
3 Power/Standby Displaying the status of the camera,
LED indicator please refer to 2.2 LED indicator
NO. Item Function Descriptions
4 Lock Safety lock slot
5 Ethernet Network port supports
PoE(IEEE802.3af)
6 USB output The USB port is for connecting to the USB port of
the computer and providing USB signal images
7 HDMIoutput HDMIoutput(Audiooutputsupported)
8 3G-SDI 3G-SDIoutput(Audiooutputsupported)
9 Audio output Support Line ln / Mic In
10 RS-232/ RS-422 RS-232/ RS-422 port, up to 7 cameras can be
OUT/ IN connected in a serial connection
11 DC IN 12V AC power supply connecting port
12 Service Reset the camera to the default setting
13 Lock Safety lock slot
