Solder Bridge Adress Keyboard
15
14
X15
X16
X17
X18
K3
K2
Position of the
soldering bridge on
the circuit board
K3
K3
K3
K3

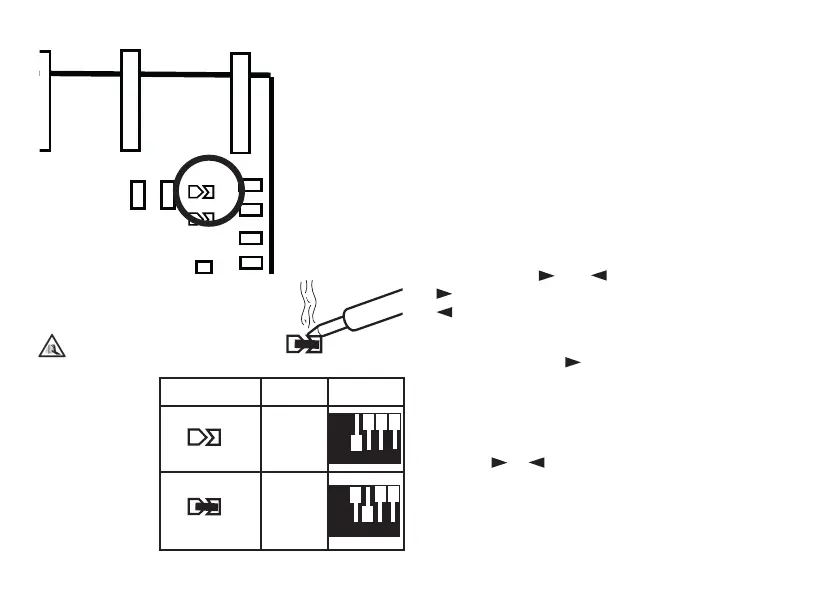

Changing the address by closing or ope-
ning the solder bridge
There is a danger of burning yourself
when working with a soldering station.
on
on
Address Settings
Operating the turntable
The deck can be started in single-step operation in both direc-
tions with the “step” > buttons < and . The deck will stop automat-
ically at the next spoke track. If the “step” button ist kept pressed,
the deck will pass on to the next spoke track.
To turn a locomotive, the deck can be turned 180° from any posi-
tion by pressing the turn button.
Any spoke track can be reached at the press of a button, regard-
less of the position of the deck, by using the track indexing feature.
Just press the button with the number for the desired spoke track
from 1 to 24. Spoke track numbers not programmed are ignored.
The direction of rotation (for turning and track indexing) can be
selected with the and buttons:
turning to the right (clockwise),
turning to the left (counterclockwise).
The direction set remains until it is changed. The direction of ro-
tation to the right is indicated by the monitor light (only keyboard
6040) above the button marked.
The end button can be pressed to stop the turntable before re-
aching a desired spoke track. The turntable will stop at the next
edge segment, even if there is no spoke track there. After pres-
sing the clear button, the control procedure begun is continued.
During the interruption the direction of rotation can be changed
with the o r buttons.
When there is an interruption of the digital operation (short cir-
cuit or emergency halt with the „stop“ button on a locomotive
controller), the deck on the turntable completely ends the control
procedure previously begun. After the digital system ist turned
back, the operation of the turntable can be continued as desired.
