Installation and Connection
Read the following section carefully. Not paying attention to the input signal level, to the routing of the
signal and to the assignment of the signal will result in unwanted distortion, a corrupted signal or no sound
at all.
Power Connection
Use the same fuse as marked on the fuse holder near the power connector. Connect RHA6 to a standard
power outlet using the enclosed power cable.
Audio Connection
The RHA6 uses balanced XLR and 1/4” (6.35 mm) TRS phones jack. It can be connected to other units in a
variety of ways to support a vast range of applications without experiencing a signal loss.

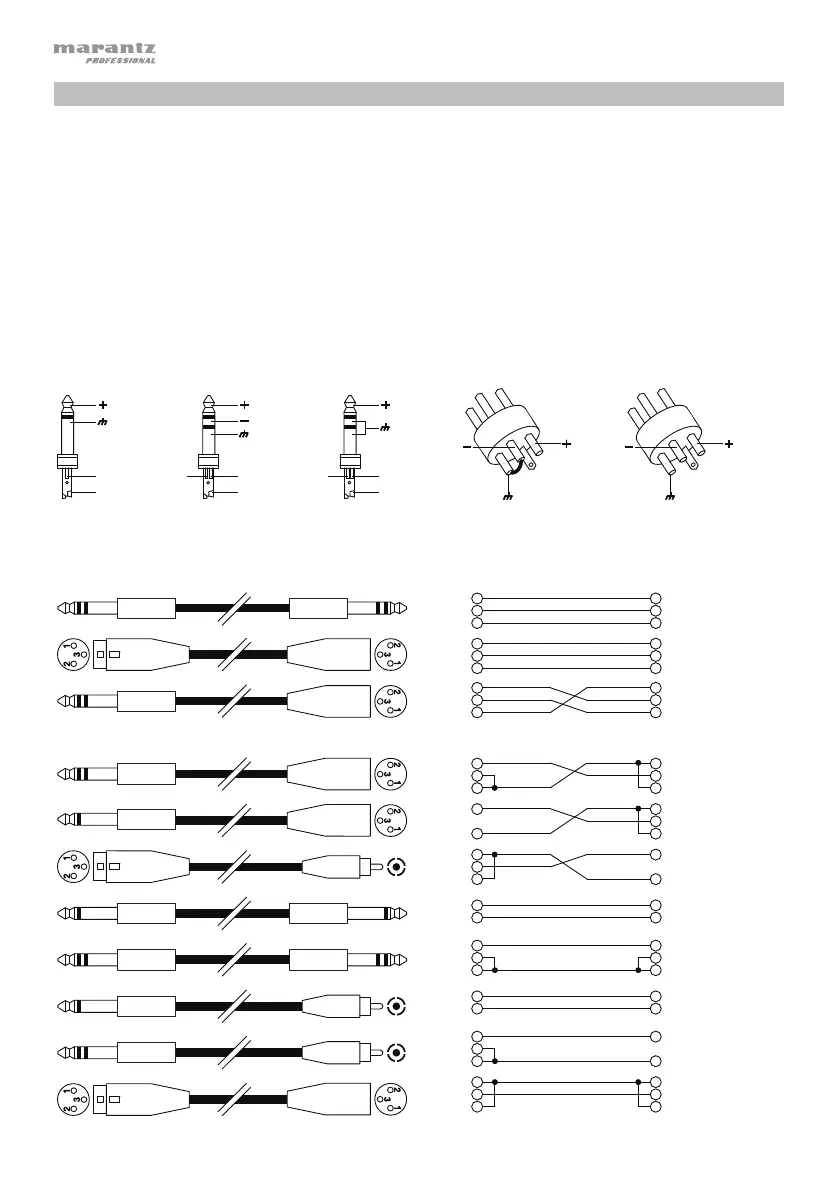

Wiring Configuration
You can wire your XLR or 1/4” (6.35 mm) TRS cables as balanced or unbalanced. Here are some examples:
Determine the wiring configuration you need for your application and audio connections:
Tip
Sleeve
Pin 2
Pin 3
Pin 1,
linked to Pin 3
Balanced
Unbalanced
Tip
Ring
Sleeve
Tip
Sleeve
Ring
Pin 1
Tip
Ring
Sleeve
1
2
3
1
2
3
Tip
Ring
Sleeve
1
2
3
Tip
Ring
Sleeve
1
2
3
Tip
Sleeve
1
2
3
1
2
3
Center
Screen
Tip
Sleeve
Tip
Sleeve
Tip
Ring
Sleeve
Tip
Ring
Sleeve
Tip
Sleeve
Center
Screen
Tip
Ring
Sleeve
Center
Screen
1
2
3
1
2
3
Pin 3
Tip
Sleeve
Ring
Pin 2
