8 ENGLISH

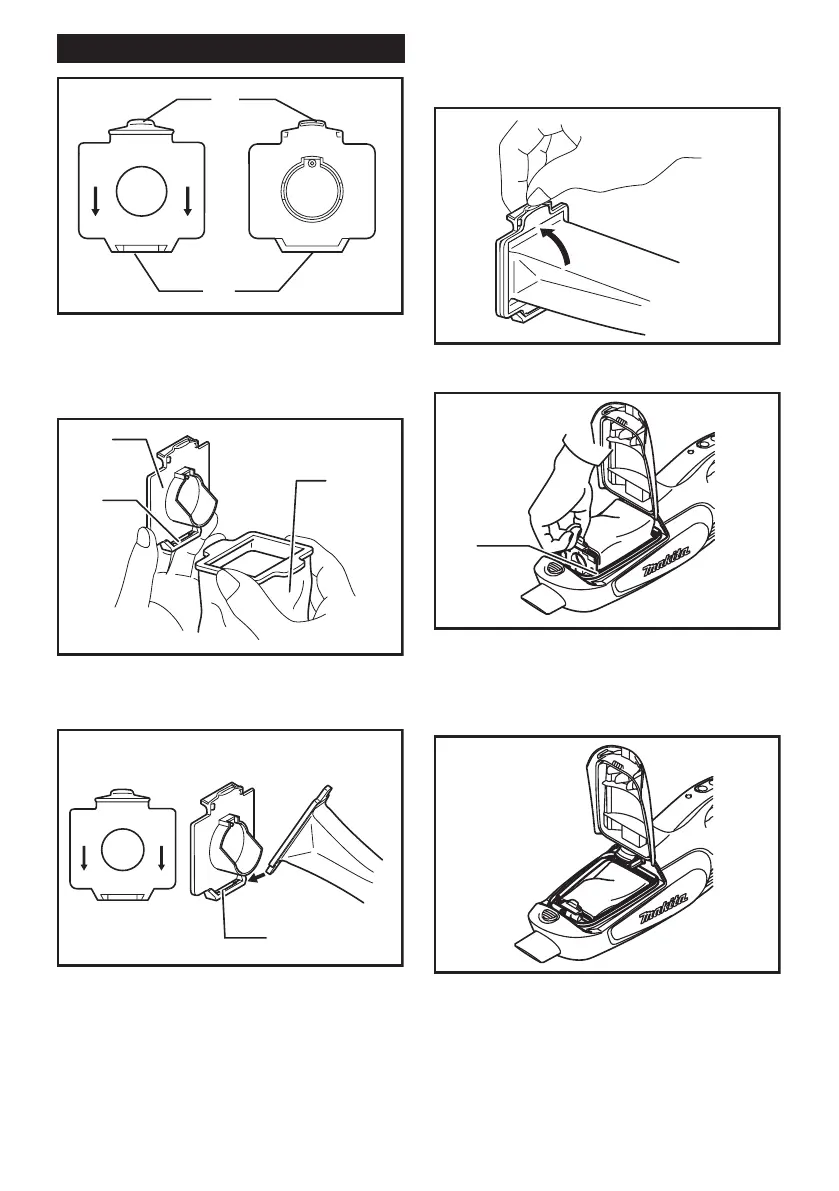

Installing dust bag
1
2
► 1. Upper side of dust stopper 2. Lower side of dust
stopper
Use the dust stopper when installing dust bag. Be
careful not to take the upper side for the lower side by
mistake because they are different each other.
1
2
3
► 1. Dust stopper 2. Groove 3. Dust bag
1. Insert the protrusion of the dust bag into the
groove in the dust stopper as shown in the gure.
1
► 1. Lower groove
2. There is no distinction between the upper and
lower sides of the dust bag. You may insert its
protrusion of any side into the lower groove of the
dust stopper.
3. Overlap the frame of dust stopper with that of the
dust bag.
1
► 1. Cleaner cavity
4. Place the dust stopper and the dust bag together
into the cleaner cavity in the same direction of
arrow on the dust stopper. Insert them all the way
into the slots in the cleaner cavity.
