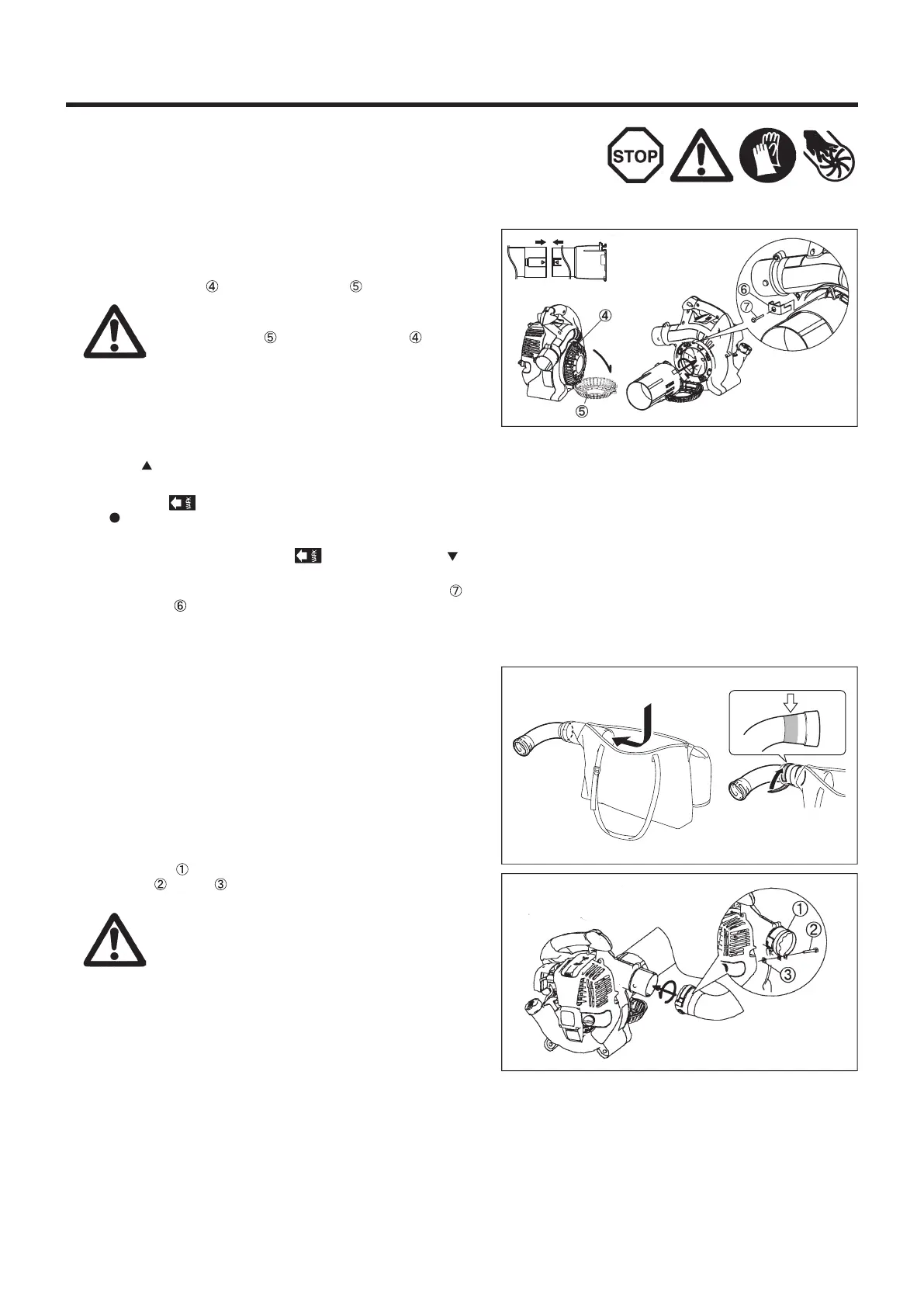

ASSEMBLY INSTRUCTIONS
CAUTION: Before performing any work on the blower/vacuum,
always stop the engine and pull the spark plug
connectors o the spark plug.
Always wear protective gloves!
CAUTION: Start the blower/vacuum only after having assem-
bled it completely.
ASSEMBLY OF VACUUM ATTACHMENT
1) Installing Vacuum pipe (nozzle)
(1) Loosen the screw and open the protector .
WARNING!
When using the blower for blowing operation, always
close the protector and tighten the screw before
operation.
Otherwise the bare impeller may catch your body or
clothing and cause serious injury.
Always use the vacuum pipe A and B together. Otherwise
contact with the impeller may cause serious injury when
the operator attempts to remove jammed debris in the
pipe.
(2) Align “
” mark on the vacuum pipe A and B. Insert the vacuum
pipe A into the vacuum pipe B until three latches snap in.
(3) Align the
indicated on the vacuum pipe A with the
“ ” indicated on the blower. Then insert the vacuum pipe into the
blower.
(4) Turn the vacuum pipe until the
is aligned with the “ ”
indicated on the blower to lock the vacuum pipe.
(5) Fasten the vacuum pipe securely to the blower with screw
and bracket . Do not tighten the screw too much to avoid parts
breakage.
Note: The engine will not start unless the vacuum pipe is mounted
completely.
2) Installing Elbow and Dust Bag
(1) Open the fastener of the dust bag.
(2) Insert the elbow’s railed side into the dust bag, take it out through
the bag’s entry.
(3) Fasten the elbow with hook-and-loop fastener around the place
indicated in the gure.
CAUTION
Install the dust bag away from railed side of the
elbow. If the dust bag is placed near the engine, the
exhaust gas may scorch the dust bag.
(4) Install the elbow on the blower.
(5) Place clamp
around the opening of the elbow. Fasten securely
with bolt and nut .
WARNING!
Do not attempt to pick up large wood chips, metals,
glass, stones, liquids, lighted cigarettes, re works
or the like.
