13

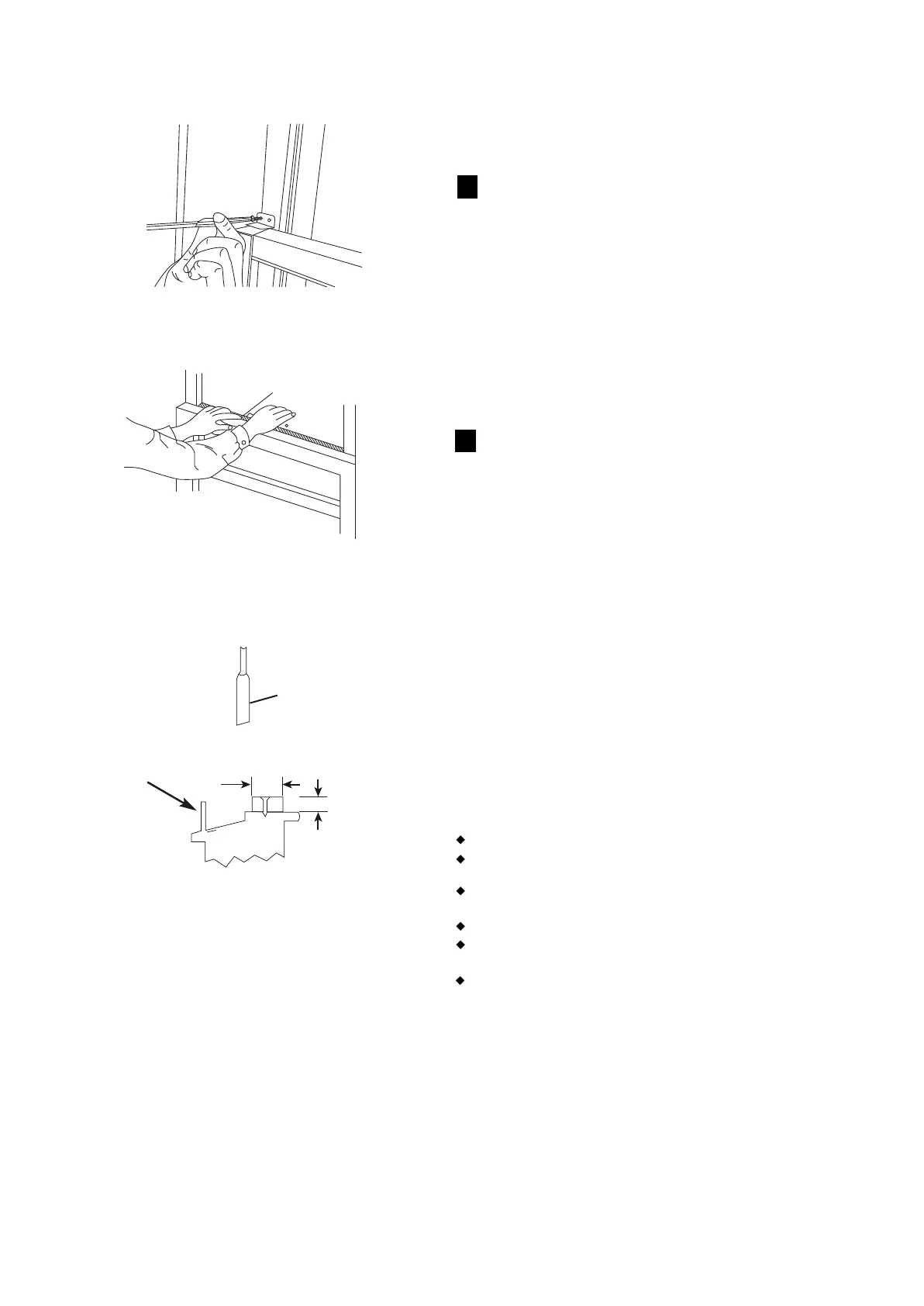

To secure lower sash in place, attach right angle
sash lock with 3/4" (19mm) or 1 screw as
shown(Fig.8).
/2" (12.7mm)
6
Cut and insert it in the
space between the upper and lower sashes (Fig.9).
Window sash seal foam
7
Fig.9
If AC is Blocked by Storm Window
Add wood as shown in Fig.10, or remove storm
window before air conditioner is installed.
If Storm Window Frame must remain, be sure the
drain holes or slots are not caulked or painted shut.
Accumulated Rain Water or Condensation must be
allowed to drain out.
Board
thickness
as required,
for proper
pitch to rear,
along entire
sill. Fasten
with nails or
screws.
Fig.10
Removing AC From Window
Turn AC off, and disconnect power cord.
Remove sash seal from between windows, and
unscrew safety sash lock.
Remove screws installed through frame and frame-
lock.
Close (slide) side panels into frame.
Keeping a firm grip on air conditioner, raise sash
and carefully remove.
Be carefully not to spill any remaining water while
lifting unit from window. Store parts WITH air
conditioner.
NOTE: After installing,make sure the air
conditioner is tilted 3~4 to the outside to
allow water drainagea ndp erfect c ooling
efficiency.
O
FOAM SEAL
Fig.8
Storm window
frame or other
obstruction.
SASH
1-1/2"min
(38 mm)
