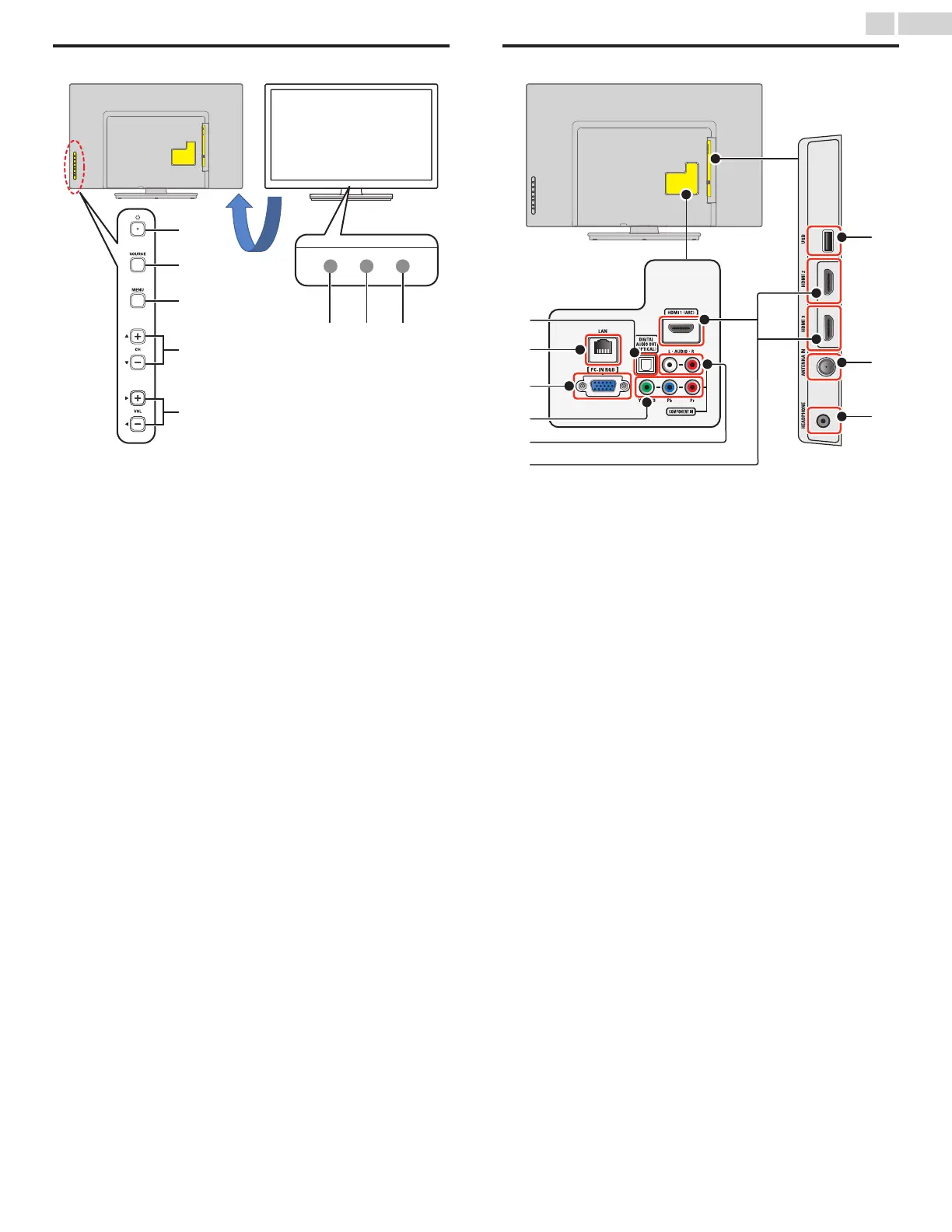

Control Panel
e
d
c
b
a
h
f
g
a
B (POWER / STANDBY)
Turns the TV On from Standby or Off to Standby mode.
b
SOURCE
Selects Connected Devices.
c
MENU
Opens the Main On-screen Menu.
d
CH H / I
Selects a Channel in the Memorized Channel Ring (Low to High or
High to Low). In the Menu screen, moves the Cursor Up ( H ) (+) /
Down ( I ) (–).
e
VOL J / K
Adjusts the Volume.
VOL J (–)
: Volume Down
VOL K (+)
: Volume Up
In the Menu screen, moves the Cursor Left ( J ) (–) / Right ( K )
(+).
f
Remote Control Sensor
Receives IR Signal from Remote control.
Do Not Block this Remote Control Sensor window to allow proper
operation.
g
Ambient Light Sensor
Alters the brightness of the TV screen Automatically by detecting
your room lighting level. Do Not Block this Light Sensor window to
allow proper operation.
h
Power On / Standby Indicator
(On : no light, Standby : red light)
Terminals
i
k
j
m
n
o
p
q
l
i
Digital Audio Output jack
Digital Audio (S/PDIF) Output to home theaters and other Digital
Audio systems.
j
Ethernet port
For Internet connection using an Ethernet Cable with an RJ-45
connector.
k
PC Input jack
VGA cable connection for PC.
l
Component (Y/Pb/Pr) / Composite Video (VIDEO) Input jack(s)
for VIDEO
Composite Video Input (VIDEO) jack is a shared jack with
Component Video Input (Y) jack.
m
Analog Audio (L/R) Input jacks
Connect Analog Audio signals from;
–
HDMI-DVI / Analog Audio (L/R) jacks signal
–
Component Video / Analog Audio (L/R) jacks signal
–
Composite Video / Analog Audio (L/R) jacks signal
–
PC Connection / Analog Audio (L/R) jacks signal with Stereo mini
3.5mm plug Audio cable on PC
n
HDMI Input jack(s)
Digital Audio and Video Input from high definition Digital devices
such as DVD / Blu-ray disc players, Cable / Satellite Set-top Boxes,
PC’s, etc.
* For HDMI 1 only
In addition to normal HDMI and HDMI-DVI functionality, it
outputs TV Audio to an HDMI-ARC-compliant device, such as a
home theater system.
o
USB terminal
Data Input from USB Memory Stick only.
Do not connect any device to this terminal such as Digital camera,
keyboard, mouse, etc.
p
75 ohm Cable / Antenna connection
Signal Input from an Antenna or Cable / Satellite Set-top Boxes.
q
Headphone Audio Output jack
Headphone 3.5mm stereo jack for personal listening.
12
.English
Continued on next page.
