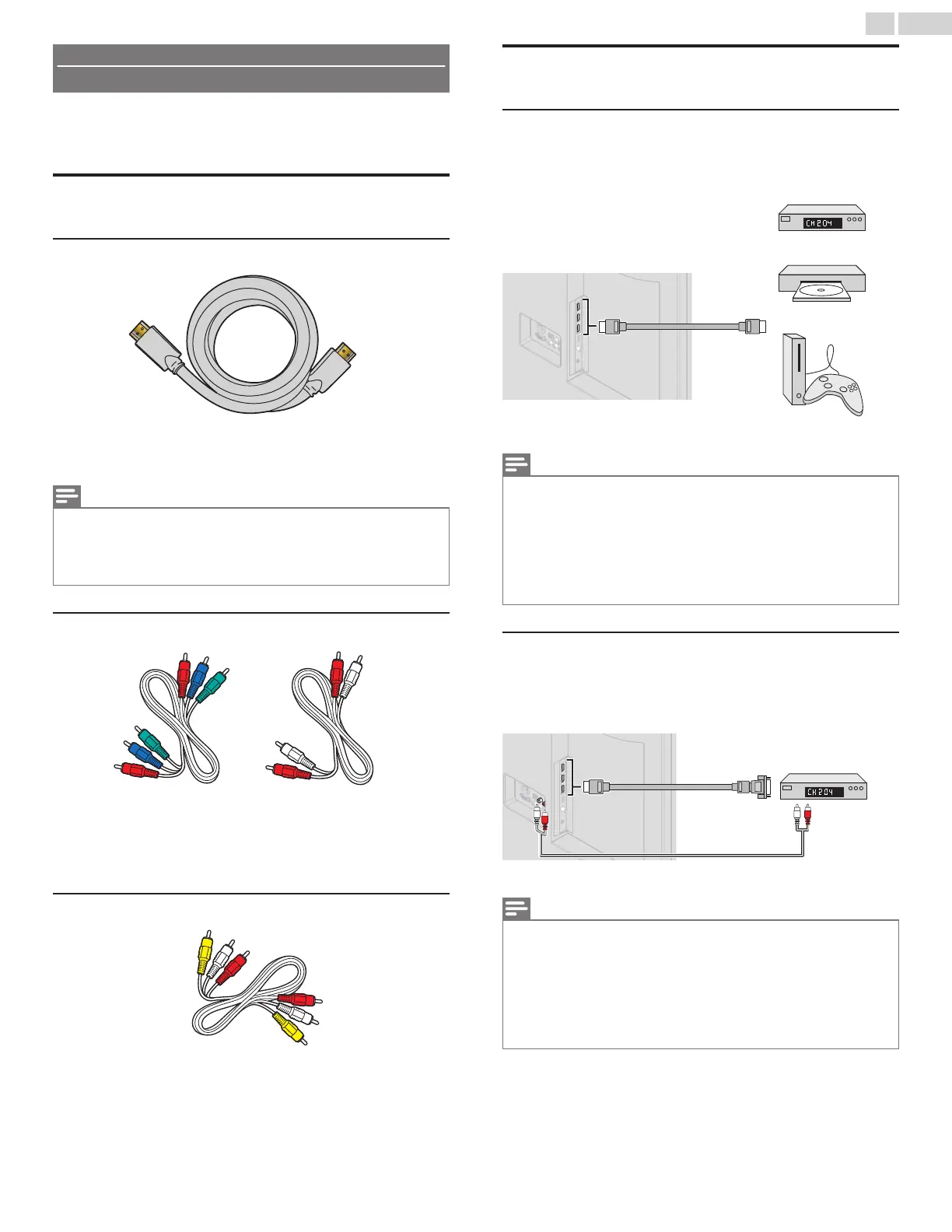

No supplied cables are used with these connections:
●
Please purchase the Necessary Cables at your local store.
Before you connect the AC Power Cord:
Be sure other Devices are connected properly before plugging in the AC
Power Cord.
Selecting your Connection quality
HDMI - Highest quality
Supports high-definition Digital signals and gives highest picture and sound
quality. Video and Audio signals are combined in one cable. You must use
HDMI for full high-definition Video and to enable HDMI-CEC.
Note(s)
●
MAGNAVOX HDMI supports HDCP (High-bandwidth Digital Contents Protection). HDCP
is a form of Digital Rights Management that protects High-Definition content in Blu-ray Discs
or DVDs.
●
The HDMI-ARC connector on the TV features HDMI-ARC functionality. This allows
output of TV Audio to an HDMI-ARC-compliant Device.
Component (Y Pb Pr) - High quality
Supports High-Definition Analog signals but gives lower picture quality
than HDMI. Component (Y/Pb/Pr) Video cables combine red / green /
blue Video cables with red / white Audio (L/R) Cables. Match the cable
colors when you connect to the TV.
Composite - Basic quality
For Analog Connections. Composite Video / Audio Analog cable usually
combine a yellow Video Cable with red / white Audio (L/R) Cables. With
this Unit, yellow cable must be connected to Y (green) jack on the
Component Video Input jacks.
Connecting your Devices
HDMI Digital Connection
HDMI Connection offers the Highest Picture quality.
HDMI (High-Definition Multimedia Interface) transports High-Definition
Digital Video and multi-channel Digital Audio through a single cable.
HD game console
or
Blu-ray Disc/DVD Player
or
Set-top Box
OUT
IN
ININ
HDMI cable
HDMI cableHDMI cable
Note(s)
●
Some HDMI cables and devices may not be compatible with the TV due to different HDMI
specifications.
●
Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI cable
is recommended for the Better compatibility.
●
The Unit accepts 480i / 480p / 720p / 1080i, 1080p, 2160p 24/30/60Hz of Video signals,
32kHz / 44.1kHz and 48kHz of Audio signals.
●
This Unit accepts LPCM, AC-3, DD+ Audio signal.
●
This Unit accepts only signals in compliance with EIA861.
HDMI-DVI Connection
This Unit can be connected to your Device that has a DVI Terminal.
Use an HDMI-DVI Conversion Cable for this Connection and it requires
Audio Cable for Analog Audio signal as well.
Cable Receiver or Satellite
Set-top Box with the DVI
Output jack
OUT
HDMI-DVI conversion
cable
HDMI-DVI conversion
cable
HDMI-DVI conversion
cable
IN
IN
IN
OUT
Audio (L/R) cables
IN
IN
IN
Note(s)
●
Some HDMI cables and devices may not be compatible with the TV due to different HDMI
specifications.
●
Use an HDMI cable with the HDMI logo (a certified HDMI cable). High Speed HDMI cable
is recommended for the Better compatibility.
●
The Unit accepts 480i, 480p, 720p, 1080i, 1080p and 2160p Video signals.
●
HDMI-DVI Connection requires separate Audio Connections as well and the Audio signals
are Output as Analog (L/R) Audio.
●
DVI does not display 480i image which is not in compliance with EIA/CEA-861/861B.
14 .English
Continued on next page.
