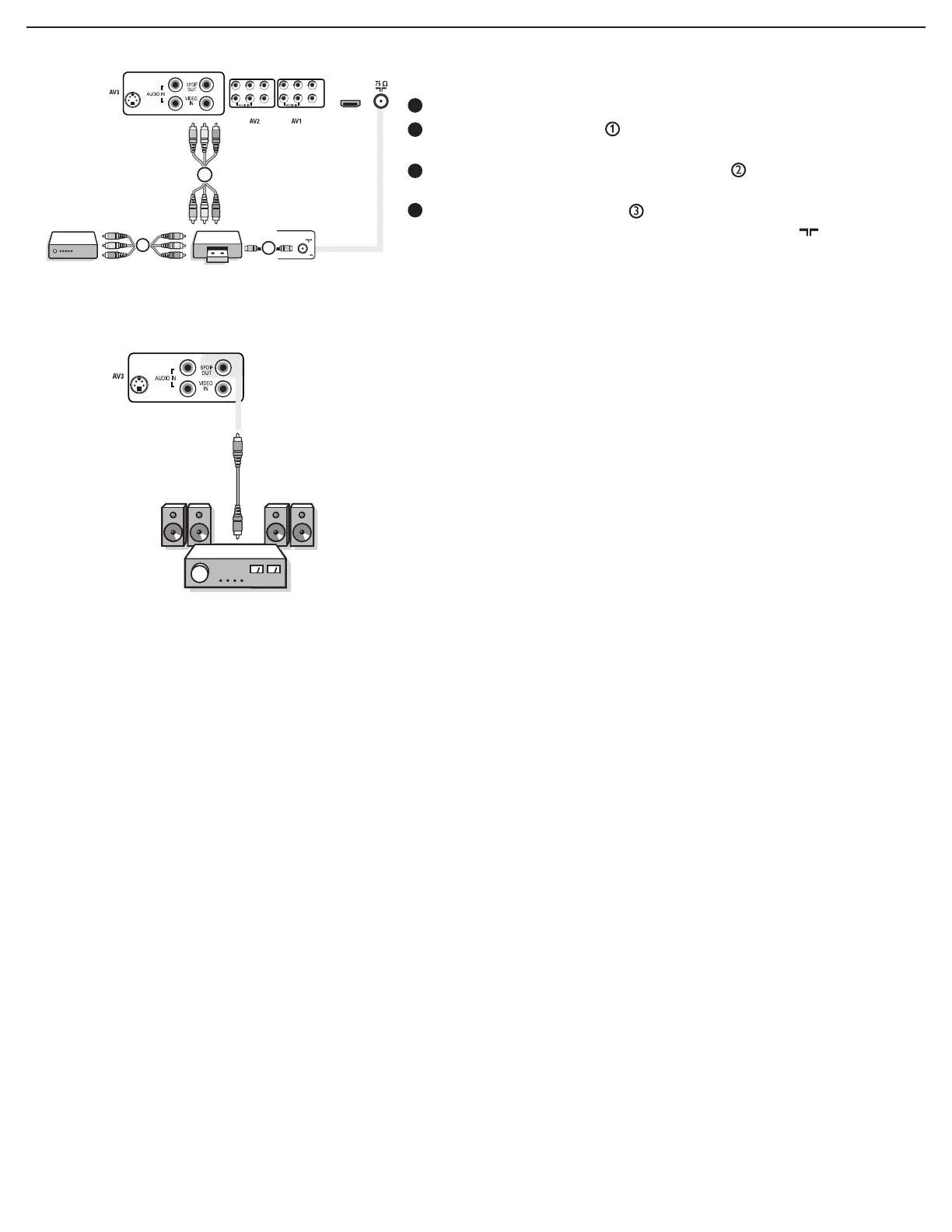

Connect the RF Antenna or Cable TV cable as described above.
Connect the AV cables to the satellite receiver’s or cable box’s
AV OUT jacks and to the recorder’s AV IN jacks.
Connect the recorder’s AV OUT jacks to the TV’s AV3
jacks as described above.
Connect another RF cable from the output out of your
recorder to the TV’s input CABLE/ANTENNA jack.
Recorder and Satellite Receiver / cable box with AV outputs
Digital Surround receiver
Connect a Digital Multi Channel Surround receiver to the
DIGITAL AUDIO OUT (SPDIF OUT) connector at the bottom of
the TV.
AV3:
L + R + VIDEO
2
Pb
Y
Pr
VIDEO
R
L
Y
Pb
Pr
VIDEO
R
L
S-VIDEO
R
L
RECORDER
OUT
OUT
IN
IN
1
O
UT
STB
OUT
CABLE OR ANTENNA
7
5
3
HDMI
S-VIDEO
R
L
DIGITAL
AUDIO
OUT
1
2
3
4
