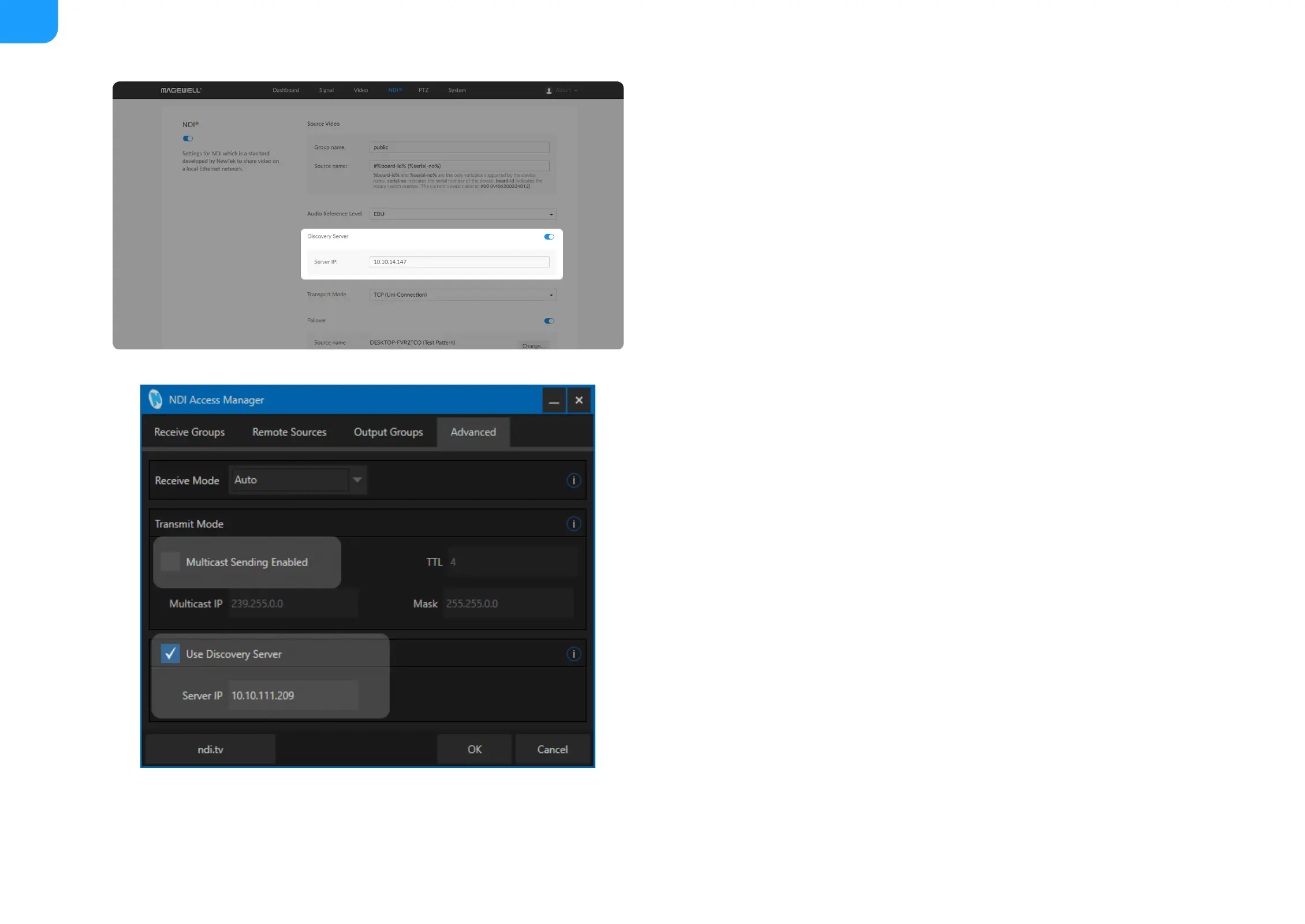

Figure 1 Set discovery server in the Web UI

Figure 2 Set discovery server in the NDI Access Manager tool

Setting Discovery Server

By turning on the Discovery server, the encoder can only be received by the

specified receiver, and the mDNS auto-discovery function is unavailable.

Pro Convert encoder can be used as a discovery server due to the build-in

Discovery Service feature. It starts automatically when device booting, and

requires zero configuration. Or you can deploy NDI Discovery Service on

another server considering your studio environment.

1. Ensure that the receiver and encoder can ping each other.

This function works between encoder and receiver that can ping each

other even from differential network segment. After setting, the output

stream of your encoder can be received by specified server.

2. Use Pro Convert encoder as the Discovery Server: in the encoder WebUI,

enable Discovery server, and specify the Server IP to IP address of the

Pro Convert encoder.

3. Launch the NDI Access Manager tool installed in the receive computer,

and specify the discovery server parameters.

i. Enter the Advanced tab.

ii. Disable Multicast Sending Enabled, check Use Discovery Server,

and specify Server IP to the IP address of the receiver server running

discovery service function.

Note: The Server IP of NDI Access Manager and encoder WebUI

should be the same.

Download the NDI Access Manager from the NewTek official site

www.newtek.com/ndi/tools for free.
