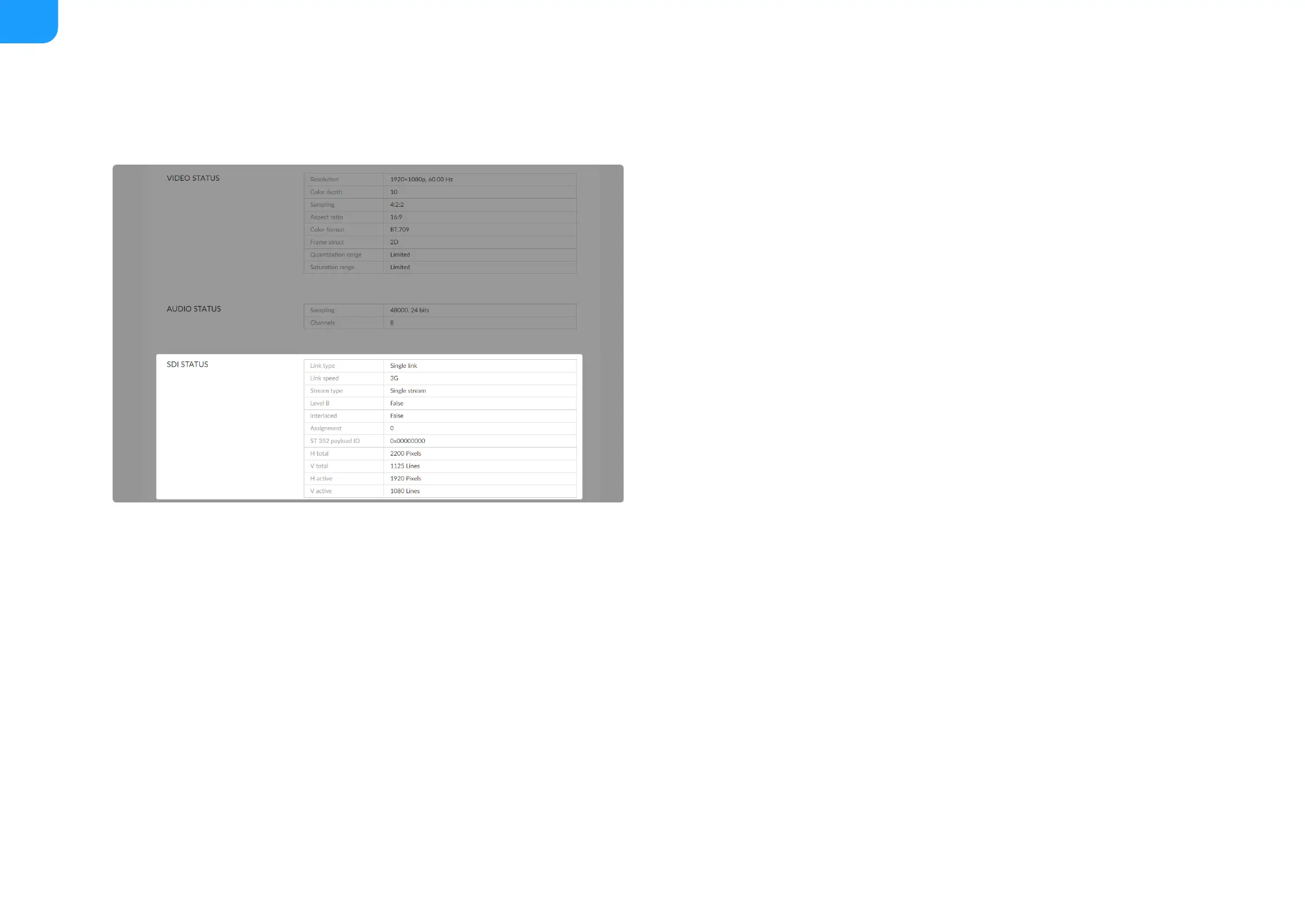

Checking SDI STATUS

NOTE: This parameter is available for SDI products.

Timing-V back porch shows the size of the vertical Back Porch in pixels.

■

Link type shows link type of input SDI signal, including single link, dual link,

quad link.

■

Link speed shows the current data speed.

■

Stream type shows the number of streams that is contained in the data

source.

■

Level B shows whether the input signal is level B format.

■

Interlaced shows whether the input signal is interlaced.

■

Assignment shows the link number, especially when be fed into a source of

multi-link interfaces.

■

ST 352 payload ID shows the SMPTE ST 352 video payload identification

code for SDI.

■

H total shows the total number of pixels, horizontally.

■

V total shows the total number of pixels, vertically.

■

H active shows the number of active pixels, horizontally.

■

V active shows the number of active pixels, vertically.

■
