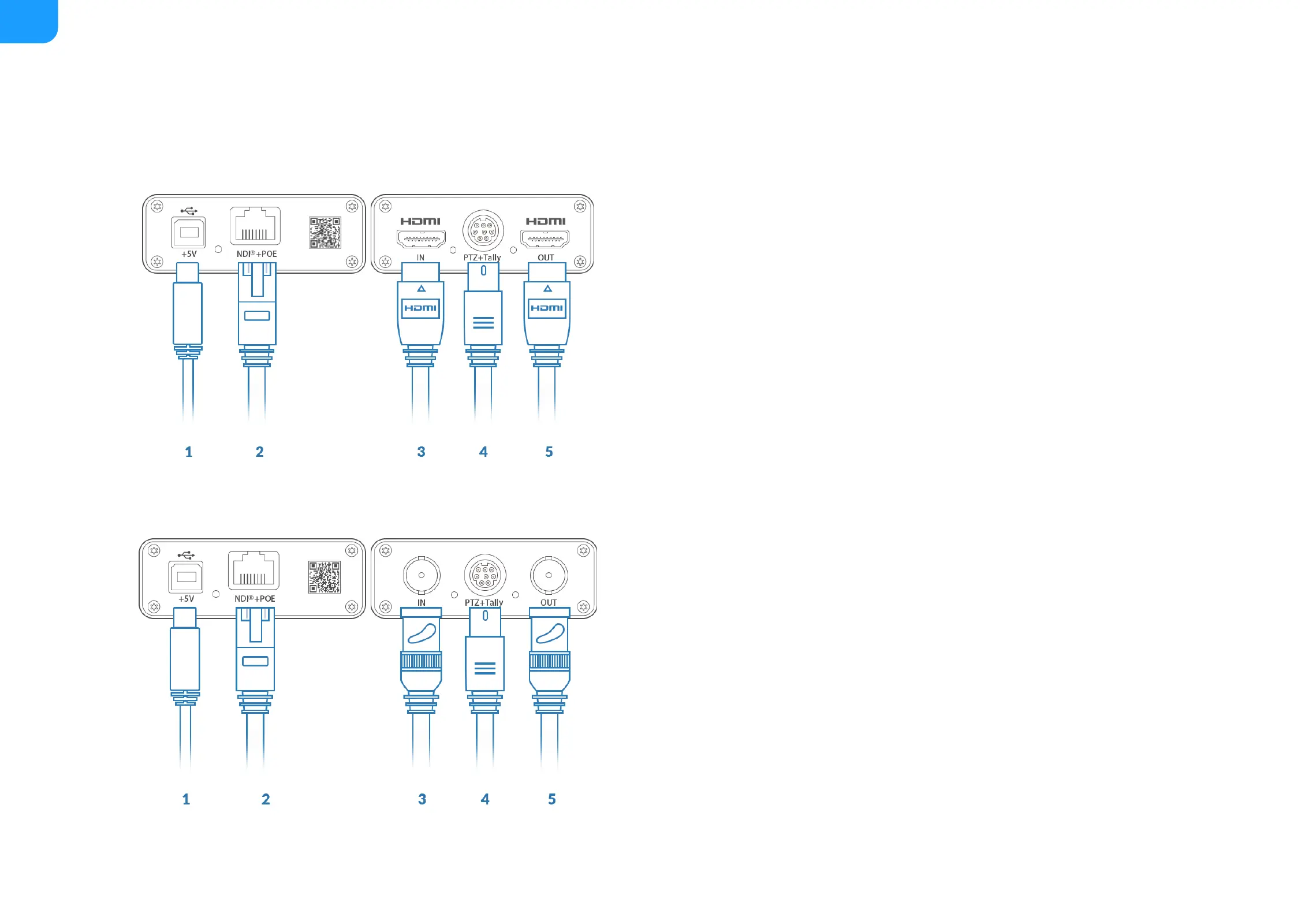

Figure1. Pro Convert HDMI 4K Plus/Pro Convert HDMI Plus

Figure2. Pro Convert 12G SDI 4K Plus/Pro Convert SDI 4K Plus/Pro Convert SDI Plus

1. Plug in the USB cable.

2. Plug in the Ethernet cable.

3. Plug in the HDMI/SDI cable to connect to the input signal source.

4. Plug in a PTZ cable to connect to a PTZ camera, an external Magewell

Tally light, or a LED matrix screen.

5. Plug in another HDMI/SDI cable to loopthrough the signal (if needed).

There is not an output interface in the Pro Convert HDMI/SDI TX devices.

Connections

Interfaces and cables varies according to signal supported by Pro Convert. Here takes Pro Convert HDMI 4K Plus as an example to describe the cabling.

For power supply: Connect the other end of the USB cable to the

power adapter.

■

For Ethernet over USB (RNDIS/ECM): Connect the other end of the USB

cable to your computer.

■

For PoE: Connect the other end of the Ethernet cable to a PoE switch

or a PoE adapter for power and Ethernet connection.

■

For Ethernet connection: To ensure high speed transmission, it is

recommended to connect the Pro Convert unit to a gigabit network.

■
