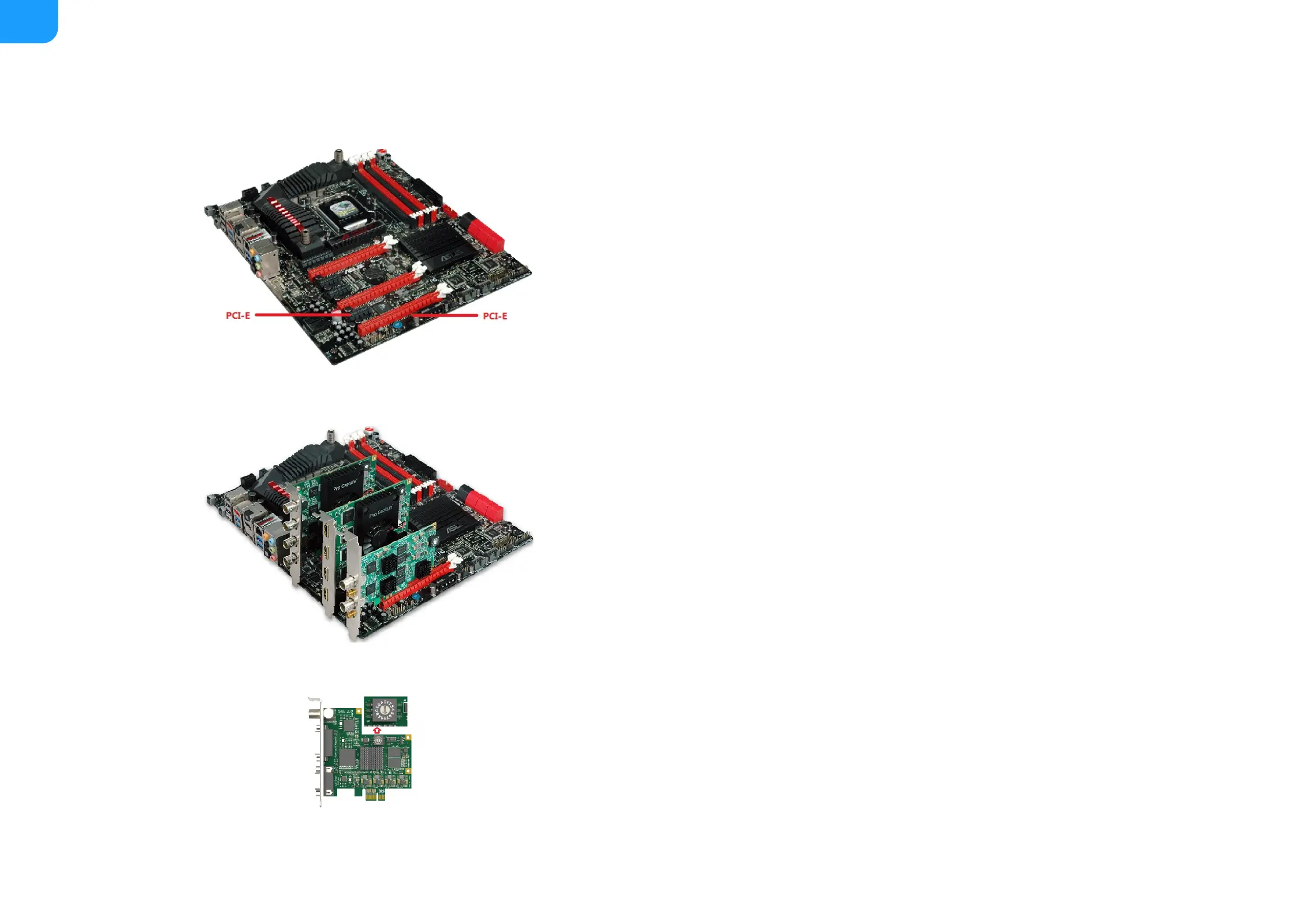

(a) Sample Motherboard inside the chassis

(b) Motherboard inside the chassis with capture cards installed

Procedure

1. Turn off the computer power and unplug the power cables.

2. Remove the chassis cover and locate the PCI Express slot(s), as shown in

figure (a).

3. Move the retaining clip to the open position (usually by pushing down on

it) on the PCIe slot into which you are going to insert the card.

4. Plug the video capture card into the slot and make sure it is firmly seated,

as shown in figure (b).

5. Screw the card onto the rear panel of the chassis.

6. If multiple cards are to be installed, we suggest that you set card number

of each card before installation. There is a rotary switch on each card

marked in hexadecimal from 0 to F which enables you to set specific

number for each card according to their needs, as shown in figure (c).

After the ID numbers are set, users can install the cards according to steps

3-5.

7. Restore the chassis cover.

8. For DVI cards and others with analogue inputs, use the included breakout

cable to connect the video source and the video capture card.

9. Reconnect all the power cables.

Hardware Installation
