Connections
All connections are clearly indicated on the module.
Bi-directional ports can be congured in the yelloGUI (see below).
Operation Modes
Following 2-SI (two sample-interleaved) conversion modes are available:
• 12G Single Link > 4 x 3G Quad Link
• 4 x 3G Quad Link > 12G Single Link
• 6G Single Link > 4 x 1.5G Quad Link
• 4 x 1.5G Quad Link > 6G Single Link
Conversion Mode settings can be changed in the yelloGUI:
www.lynx-technik.com > support > download area > yelloGUI
Power / Prog Setting LED
Green = Power OK and no internal programmed settings are present
Yellow (Red*)= Power OK and internal programmed settings are present
* Some module‘s case print may describe the color of the LED as “Red “ instead of “Yellow “ but it has the
same functionality of representing “Power Ok and internal programmed settings are present.“
Power
The module requires a 12V DC power input and the LED conrms when
power is connected. A power supply is provided, however, if you use
your own power supply, please provide a clean 12V DC power source
between 7 and 24VDC.
Optical Interface
The optical port (SFP slot) is for use with a 12Gbit/s SFP.
Please only use the SFP provided by LYNX Technik AG: OH-TR-12G-LC

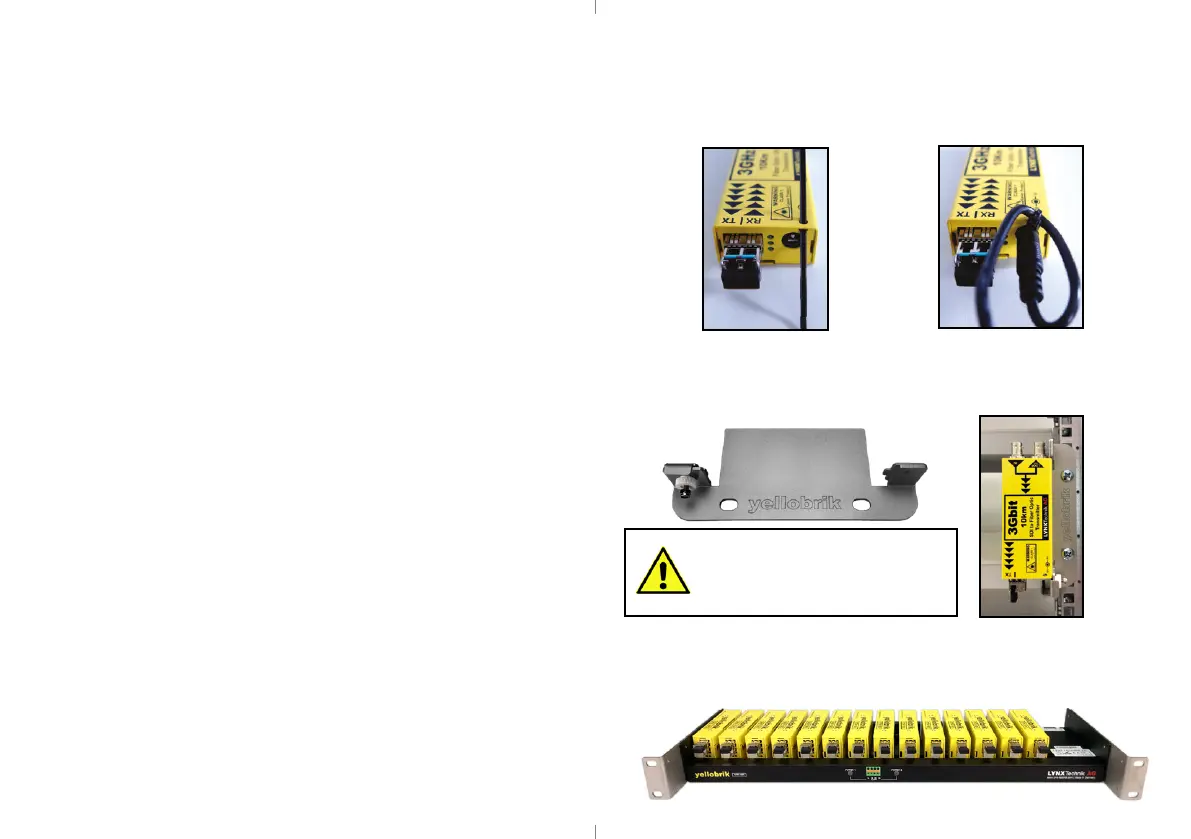

Power Lead Strain Relief
The module (dierent module shown here) has a small hole in the case
located above the power connection. This prevents the power lead from
being accidentally pulled out. Use the supplied tie-wrap and secure the
lead, as shown below.
Optional Mounting Solutions
The optional RFR 1001 mounting bracket can be used to permanently
mount the module on any surface or on 19” rack rails.
The optional RFR 1000-1 rack mount can be used to mount up to 14
yellobrik modules permanently. In addition, the RFR 1000-1 can provide
full power redundancy for all mounted yellobriks.
RFR 1000-1 rack mount
In order to mount the CQS1441 in an RFR 1000-1, please remove the bar
between two rack frame slots and the black plug from the hole right
beside the power connection of the CQS1441.
Do not obstruct ventilation holes of the CQS 1441
when using the mounting bracket.
The mounting bracket is for use in standard 19“
mounting cabinets. Please use screws supplied
with the 19“ cabinets.
