yellobrik
®
LYNXTechnik AG
www.lynx-technik.com
We are constantly adding additional yellobrik modules.
Please visit our website for the latest product updates.
www.lynx-technik.com
Connections and Adjustments
All connections and adjustments are clearly indicated on the module
and self explanatory. Settings can be changed with the module
powered on or o. The ber SDI output is optional and can be added at
any time if needed using the socket provided (plug in SFP module).
Basic Operation
The CHD 1802-1 will auto-detect the connected HDMI input and the
HDMI Present LED will illuminate when a valid signal is detected. The
HDMI is converted to an SDI signal in its native resolution (no scaling).
Two identical electrical SDI outputs (not dual link) are provided as well
as an optional ber SDI output. Any audio present on the HDMI signal
will be automatically embedded into the SDI outputs.
Audio
Up to 8 channels of audio present on the HDMI input is automatically
embedded into the SDI outputs (AES channels 1, 2, 3, 4). Note: One AES
channel = two channels of audio.
The HDMI audio is not modied or decoded. If encoded audio is
present such as Dolby Digital then this encoded stream will be
embedded (transparently) into the SDI output. The module
automatically disables the sample rate converters if encoded audio is
detected.
Fiber Output (Optional)
An SDI ber output is provided via a removable SFP ber stick. This can
be a standard SDI Transmitter (1310nm) or if needed CWDM versions
are also available (18 wavelength choices). Please contact LYNX Technik
for more details on the ber options compatible with this module.
HDCP Copy Protection
The CHD 1802-1 WILL NOT convert any HDCP encrypted content. If a
HDMI source is connected and the “HDMI present” is OUT then the
HDMI content is most likely protected with HDCP.
yelloGUI Software Tool
The CHD 1802-1 is fully compatible with the yelloGUI software
application. This provides access to a variety of additional internal
settings and features. (Including setting 3D conversion mode, setting
frame sync delay and audio conguration)
Technical Specifications
HDMI Input
3D compatible input using type A connector
For a detailed list of supported formats please refer to the article in our knowledge base
( www.lynx-technik.com > support > tech.support )
Up to 8 channels embedded audio in HDMI is passed transparently
SDI Outputs
Power
+12VDC @ 4W nominal - ( supports 10 - 14VDC input range )
2 x SDI video, 75 Ohm BNC. (both have the same signal - NOT dual link)
SMPTE 424M, SMPTE 292M, SMPTE 259M
3G Level A & B-DL & B-DS according to SMPTE ST 425-1 and ST 425-2 (3D) with
image formats 1280 x 720 and 1920 x 1080
For a detailed list of supported formats please refer to the article in our knowledge base
( www.lynx-technik.com > support > tech.support )
Electrical Return Loss: >15dB from 5MHz to 1.5GHz, >10dB from 1.5GHz to 3GHz

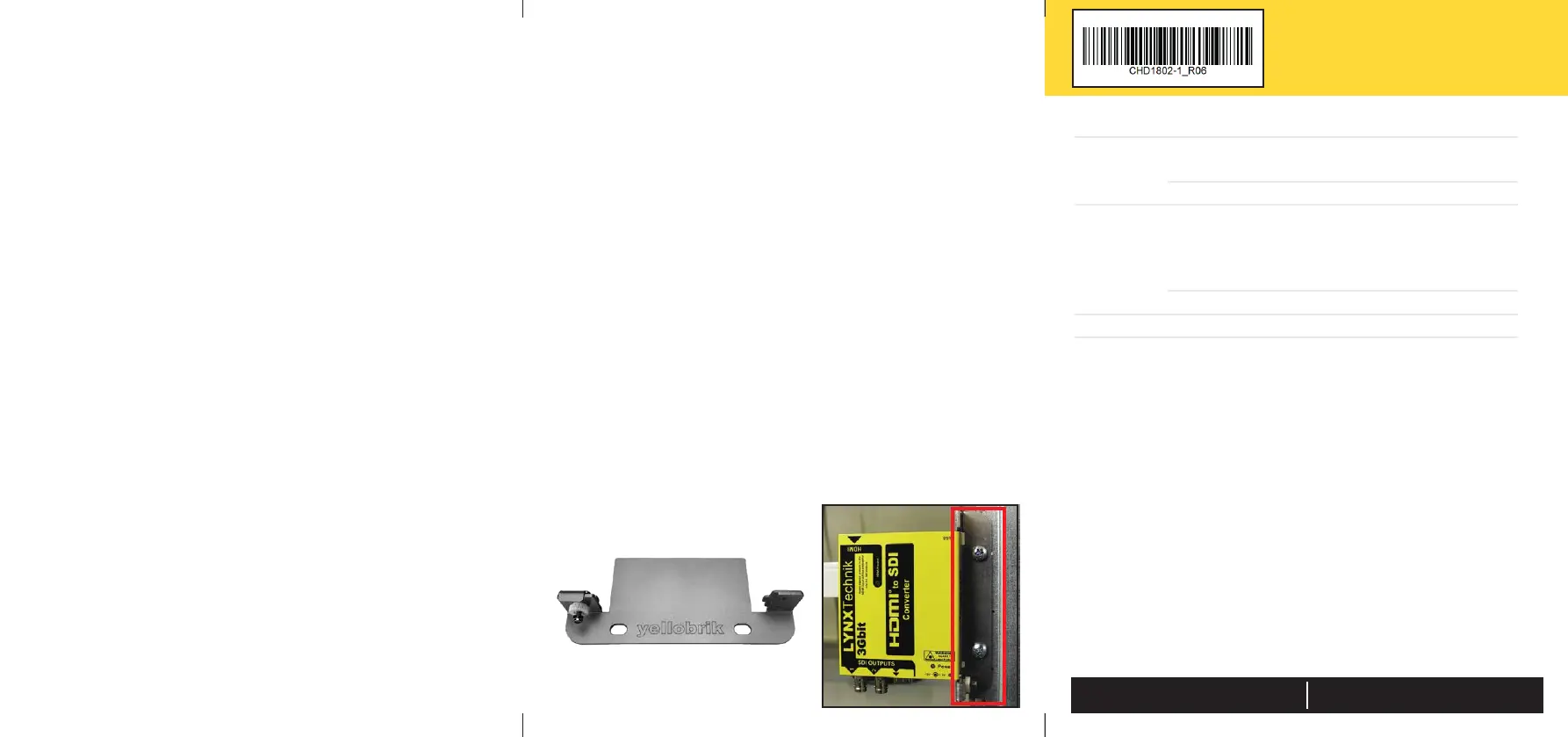

Optional Mounting Bracket
The optional RFR 1001 mounting bracket can be used to permanently
mount the module on any at surface or on 19” rack rails.
