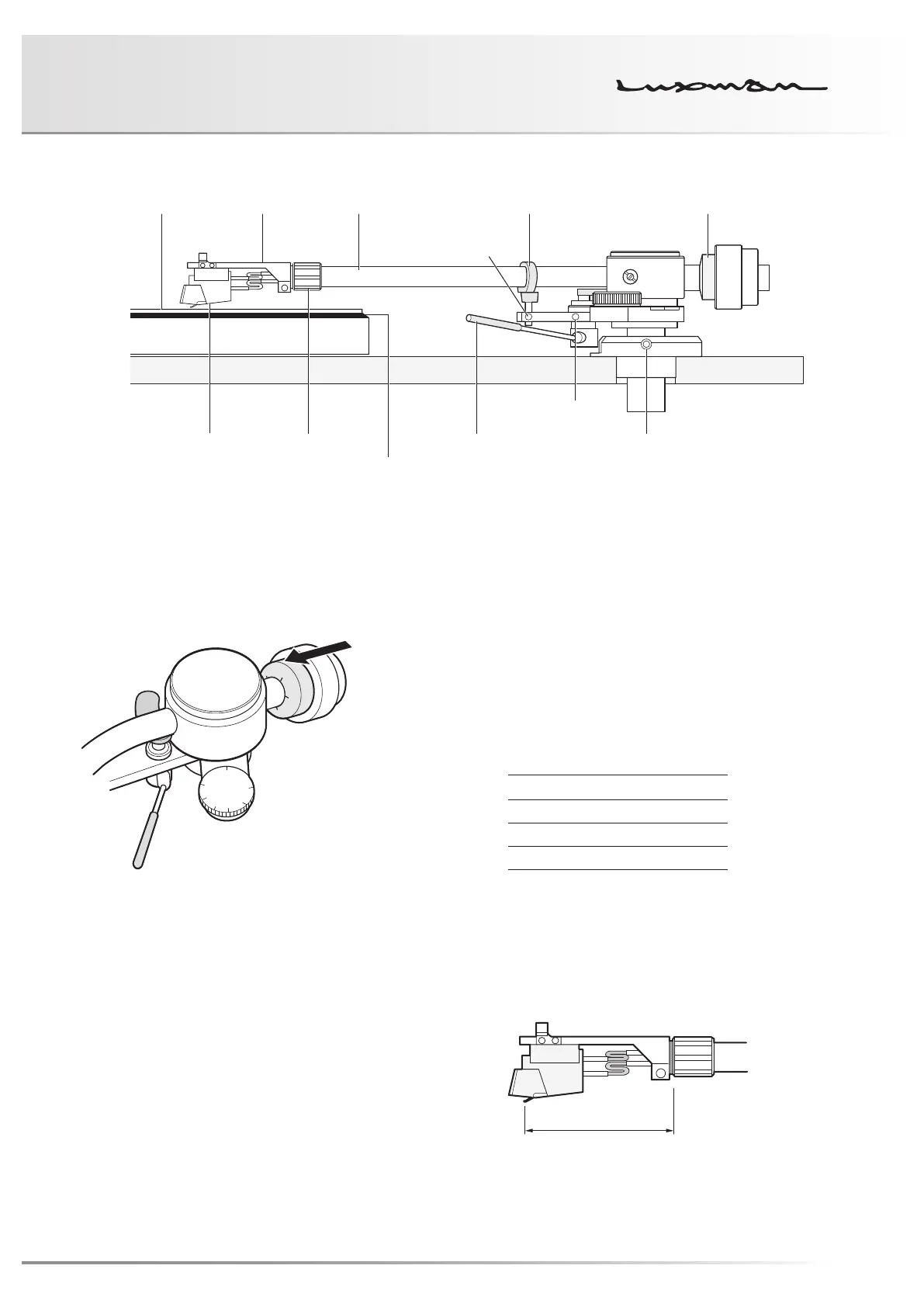

BELT DRIVE ANALOG PLAYER PD-151
11
5. How to mount counterweight
Face the stylus pressure gauge forward and insert the coun-
terweight into the back side of the tone arm until it clicks.
6. How to mount cartridge on headshell
No cartridge is included in this unit. Mount your cartridge
on the headshell.
Connect the lead wires (see the table below) to your car-
tridge and firmly secure the cartridge to the headshell of this
unit with the screws and nuts supplied with the cartridge. If
the cartridge is loosely secured, hum noise may be gener-
ated. Refer to the operating instructions for your cartridge
regarding terminals to be connected.
White Lch+
Blue Lch−
Red Rch+
Green Rch−
Mount your cartridge so that the distance from the connec-
tion face between the headshell and tone arm to the tip of
the stylus is 52 mm. Secure the cartridge by moving the
cartridge straight along the side face of the headshell and
making the cartridge parallel to the headshell.
The overhang distance of the tone arm mounted on this unit
is 15 mm.
0
0.5
2.5
1
0
1
2
3
52 mm
Stylus pressure gauge
Platter
Record surface
Arm restArm pipe
Arm lifter
Headshell
Plug-in nut
Rubber mat
Cartridge
Tone arm height adjustment
screw
Arm lifter height
adjustment screw
（ ）
Arm rest height
adjustment screw
（ ）
