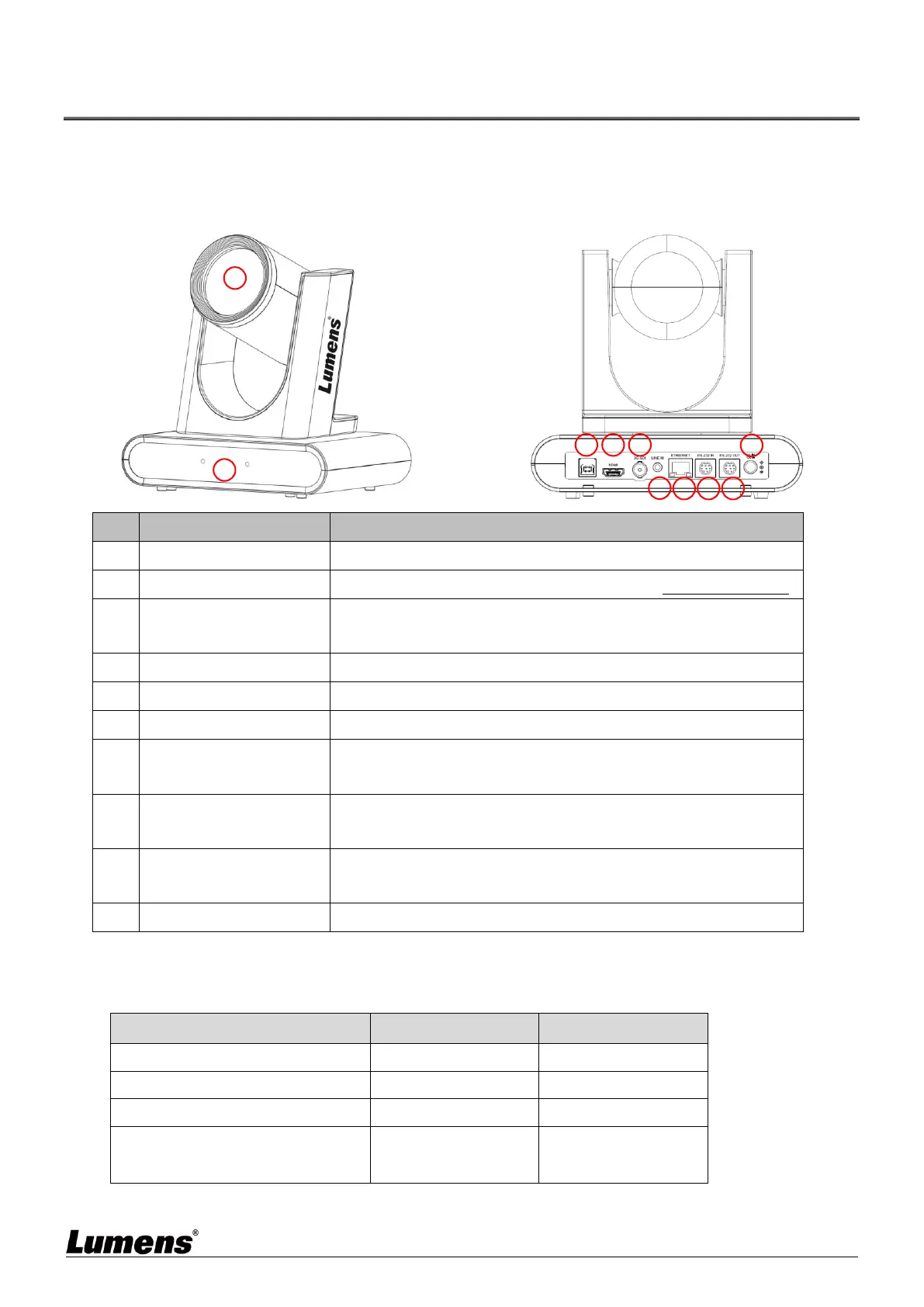

Chapter 2 Product appearance
2.1 I/O functions Introduction
NO.
Item
Function Descriptions
1.
Main camera lens
HD camera lens
2.
LED indicators
Displaying the camera status, please refer to 2.2 LED Indicator
3.
USB3.0 Port
The USB port is for connecting to the USB port of the
computer and providing USB signal images
4.
HDMI output
HDMI output (Audio output supported)
5.
3G-SDI output
3G-SDI output(Audio output supported)
6.
Audio In
3.5 mm LINE IN
7.
Network port
Network cable port, supporting PoE (IEEE802.3af) power
supply
8.
RS-232 input
RS-232 input port, at most 7 cameras can be connected in a
serial connection
9.
RS-232 output
RS-232 output port, at most 7 cameras can be connected in a
serial connection
10.
DC 12 V power Port
DC supply connecting port
2.2 Description of LED indicator
Status
Power
Standby
Startup in progress
Green
Orange
In use
Green
Off
In standby mode
Off
Orange
Privacy mode
Orange
Off
Front View
Back View
1
2
4
5
6
7
8
9
10
USB
3
