5
www.lofrans.com
UK

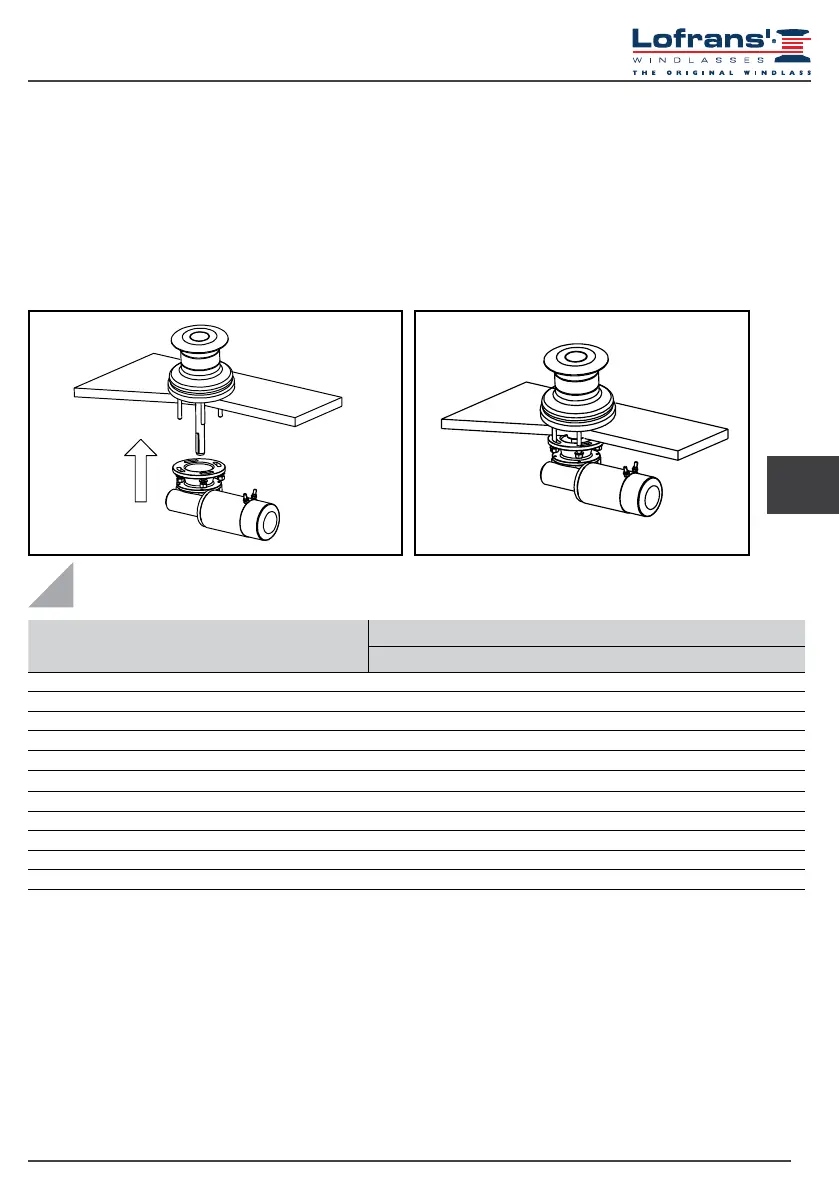

3.7 Under deck installation
1. Grease the main shaft
2. Join the reducer to the upper part by
3. Screw washers and related nuts to the studs by fastening them appropriately.
4. Connect the cables coming from the battery to the electric motor by following the indications of the wiring diagram.
5. The installer is responsible to properly protect the motor and the electrical components (such as the control box) from direct water
contact. Water damage to the electrical components due to water ingress will void the warranty.
6. For the ST4000 model the main shaft is integrated inside the gearbox, therefore the gearbox will need to be mounted rst on the deck
and after it is xed and sealed the upper deck capstan can be installed. The standard deck thickness is 150mm. For different deck
thickness please contact Lofrans’.
4.1 Electrical cable section
In order to obtain the maximum performances from the capstan and safeguard the electrical system, it is essential that the capstan be
wired with cables of sufcient section as suggested in the table.
4.2 Solenoid valves (Control Box)
Place it in a dry place near the capstan. The control box or switchboard must be installed in a dry area in which it will not have direct
water contact
4.3 Circuit breakers
The circuit breakers recommended by Lofrans have an intervention curve and not a simple plate value. The switches selected for each
model guarantee the correct operation of the system.
4 ELECTRICAL SYSTEM
Motor Power (W) Voltage (V) Contactor (A)
Cable sizing according length of cable (positive + negative)
15-25 m 50-75 ft
500/700 12 70 25 mm
2
3 AWG
700 24 35 16 mm
2
4 AWG
1000 12 100 35 mm
2
2 AWG
1000 24 70 25 mm
2
3 AWG
1500 12 100 50 mm
2
2 AWG
1500 24 70 35 mm
2
3 AWG
1700 12 125 50 mm
2
2 AWG
1700 24 100 35 mm
2
3 AWG
2300 24 100 50 mm
2
2 AWG
2500 24 100 50 mm
2
2 AWG
3000 24 125 50 mm
2
2 AWG
3500 24 250 70 mm
2
2/0 AWG
