www.lofrans.com
UK

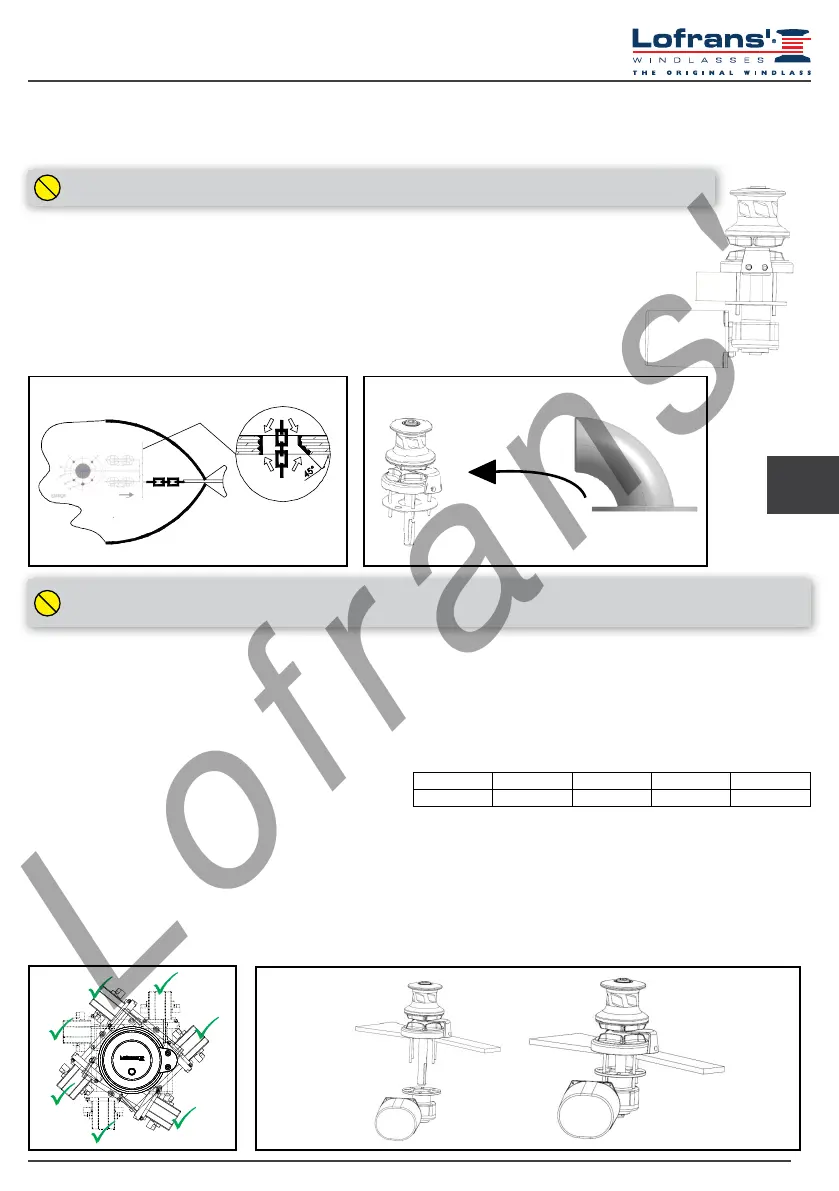

3.5 Prevention from electrolysis
For aluminium boats, it is essential that the anchor windlass be insulated from the deck through a non-conductive gasket (not supplied).
In addition, it is important that also the anchor and the chain be insulated from the hull, including chain locket and xing systems.
3.6 Deck thickness
The area of the deck where the capstan is mounted must be solid and resistant
so to be able to support the stresses due to the recovery of the anchor. The series
studs allow an admissible range of deck thickness from 50 to 70 mm. Upon request,
different deck thicknesses may be provided.
3.7 Deck installation
3.8 Under deck installation
1. Place carefully the drilling template on the deck, by ensuring
the correct alignment with the bow.
2. Mark and drill as indicated in the gure. Let the edges of the
holes sharp, while the edge side of the holes of the chain
towards the bow must be smoothed for an angle of 45° degree.
3. Clean and place the provided gasket
4. Place carefully the upper part of the anchor windlass on the
deck.
1. Grease the main shaft
2. Join the reducer to the upper part by aligning the motor far from the chain hole.
3. Screw washers and related nuts to the studs by fastening them appropriately.
4. Connect the cables coming from the battery to the electric motor by following the indications of the wiring diagram
5. For models up to 1500W the package of the windlass will include an IP cover, which protects the motor from direct water contact and
provides the IP67 rating. The IP cover must be installed, in order for the windlass to have a valid warranty.
Note:
It is recommended to seal the base of the anchor windlass to the deck
by means of silicone glue. Do not use a permanent glue to x the
base of the anchor windlass to the deck since this will make difcult
the removal in case of maintenance or intervention.
Without these precautions, the electrolysis phenomenon will lead to a rapid corrosion of the anchor windlass.
Chain pipe installation is suggested in order to guide the chain properly aligned to the chain locker and keep windlass
efciency high*
Deck thickness:
50-70mm / 1.96-2.76”
3
4
1 2
*Chain Pipe Selection
Code 636311 636312 636313 636314
for windlass SX2 & SX3 SX3,5 SX4 SX5
