4
CAPSTANS

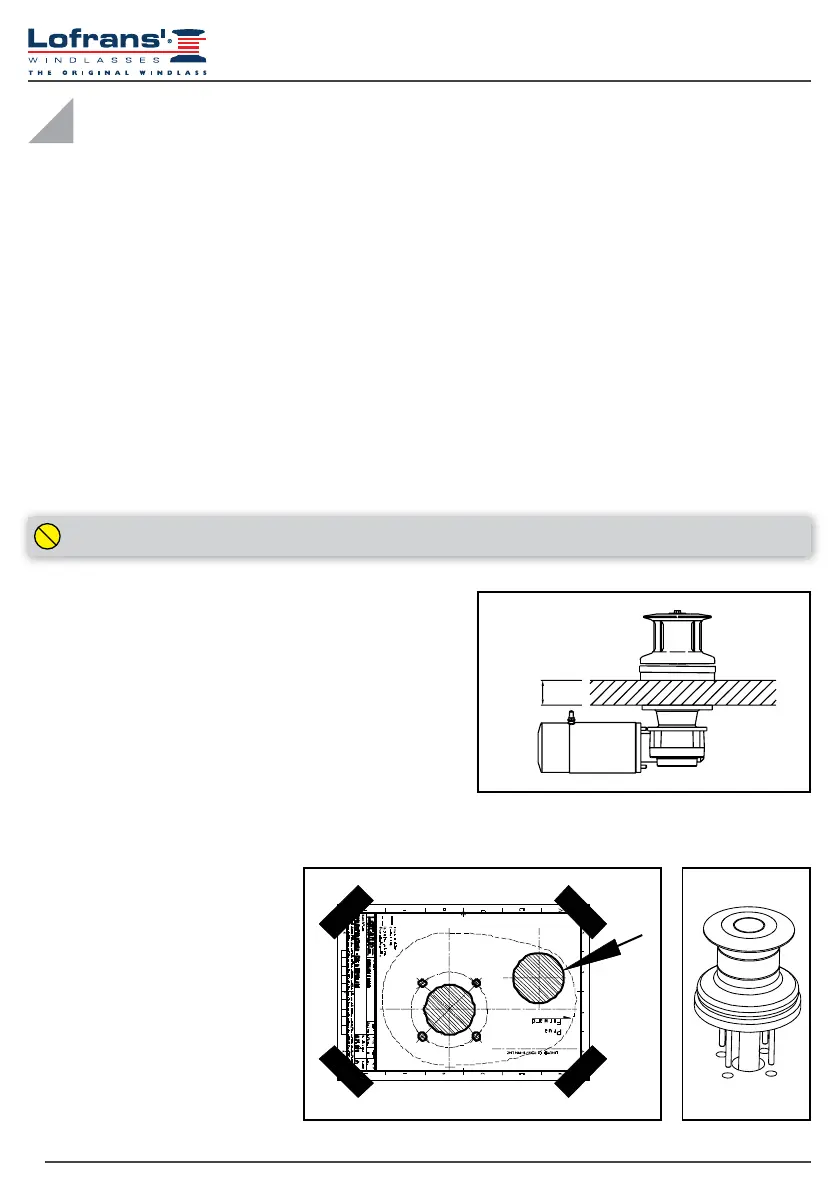

3.5 Deck thickness
The area of the deck where the capstan is mounted must be solid
and resistant so to be able to support the stresses during the mooring
operations.
The minimum thickness of the single rolling deck must be of at least:
T500: 18-30 mm
T700/T1000/ ST1000: 20-40 mm
ST1500/ST1700/T1500/T1700: 50-70 mm
ST2000/T2000: 60-90 mm
ST2500/T2500: 90-130 mm
ST3000: 60-90 mm
ST4000: 150 mm
Upon request, different deck thicknesses may be provided.
3.6 Deck installation
3 INSTALLATION
1. Place carefully the drilling template on
the deck
2. Mark and drill as indicated in the gure.
3. Place carefully the upper part of the
capstan on the deck.
Note: It is recommended to seal the base
of the capstan to the deck by means of
silicone glue. Do not use a permanent glue
to x the base of the capstan to the deck
since this will make difcult the removal in
case of maintenance or intervention.
3.1 Contents of the package
In addition to the present manual, the package contains:
3.2 Equipment necessary for installation
3.3 Recommended accessories
Use exclusively original Lofrans accessories and spare parts, designed and manufactured to ensure performances, duration and for
keeping valid the warranty. For information on available spare parts, contact your local reseller or visit website www.lofrans.com
3.4 Prevention from electrolysis
For hulls that conduct electricity, it is essential that the capstan be insulated from the deck through a non-conductive gasket (not
supplied). If the motor has 2 terminals then the installer must ground the capstan by connecting a bonding wire to the cathodic protection
onboard, in order to protect the windlass from electrolysis.
Capstan complete with gearbox and motor
Control box (for DC variants)
Drilling template
Fixing deck studs
Drill
For dimensions consult the corresponding deck template
Without these precautions, the electrolysis phenomenon will lead to a rapid corrosion of the anchor windlass or the capstan.
A
