IRIS II

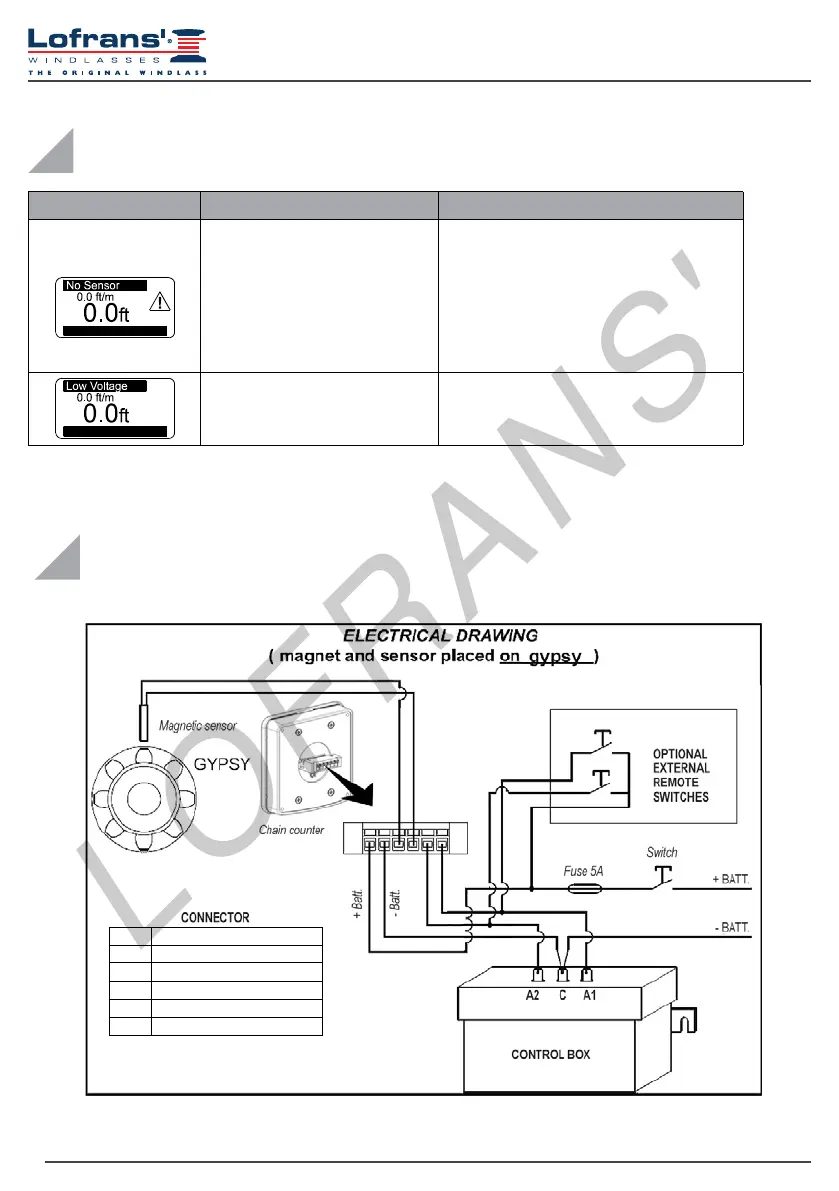

6 TROUBLESHOOTING
FAULT CAUSE CORRECTIVE ACTION
Though UP or DOWN keys
are pressed, the instrument
doesn’t receive any signal from
the magnetic sensor for more
than 5 seconds.
Check the sensor electric connections.
Check if sensor operates properly.
If not, replace it.
Check the position of sensor and magnet on
gipsy and their distance.
Check the operation of electric
installation or anchor windlass.
The instrument’s power
supply voltage is lower than10Vdc.
Verify the battery charge or
operation of the electrics system.
V=11.6 Vdc
V= 7.9 Vdc
7 WIRING DIAGRAM
PIN SIGNAL
1 + battery
2 - battery
3 & 4 Magnetic sensor
5 UP command
6 DOWN command
LOFRANS'
