SECTION 2: INSTALLATION PROCESS
Installation Planning Before installing the heating foil, make a sketch or drawing of the installation.
Plan where the thermostat should be placed. The thermostat should not be placed in direct sunlight.
It must be convenient for the user and near to the electrical supply, at a height of 1.5 m approx. Plan
where the wiring and the connection to the electrical supply should be placed. Plan the layout for
each heating foil panel. The heating foil must be placed side by side with no gaps. The heating foil
must cover as much floor area as possible

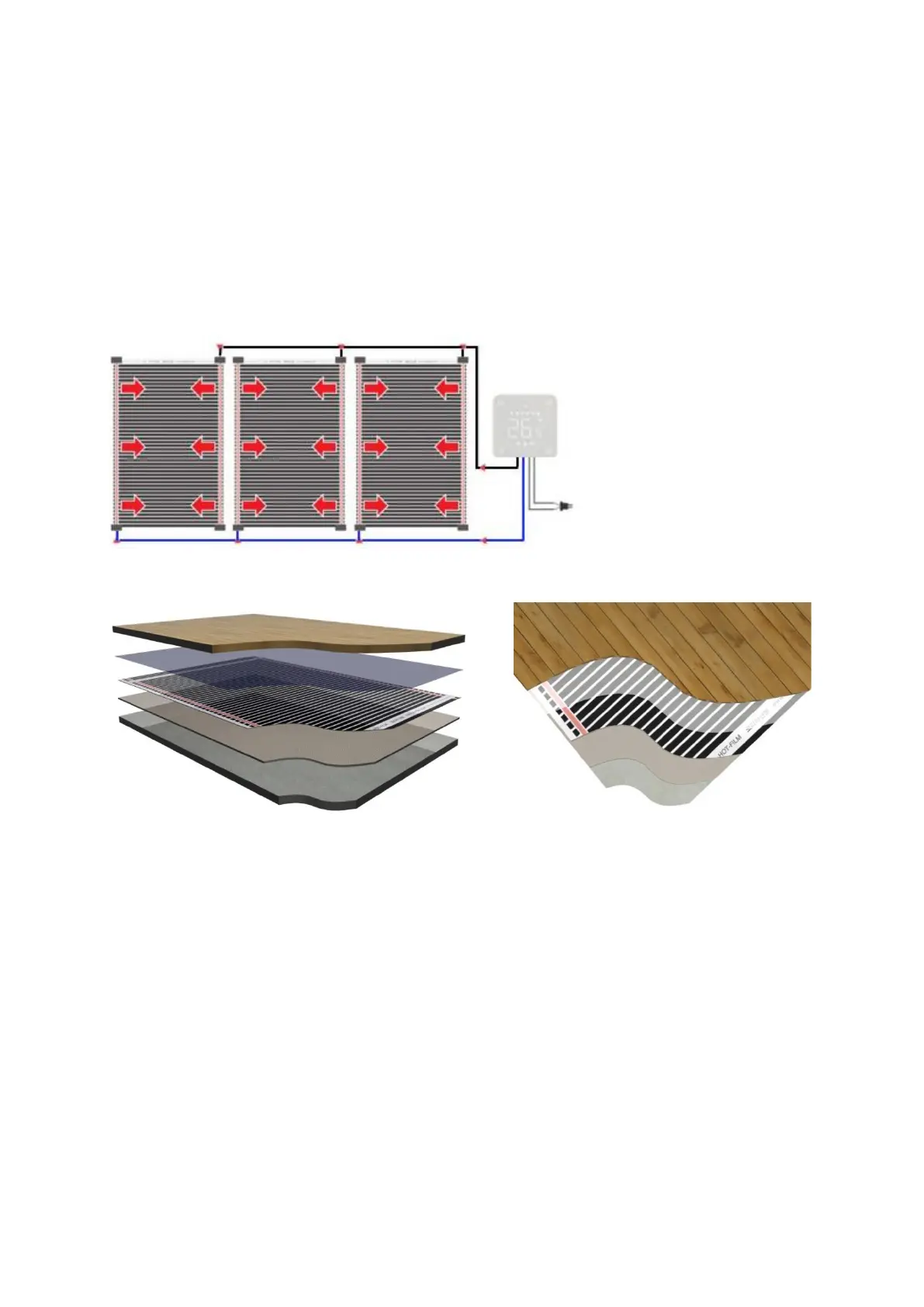

2.1 Figure of installation
① Base Floor
(Cement)
② Insulating
underfloor
③ Heating
FILM
④ Vapour barrier
foil
⑤ Finishing Materials
(Wooden floors, laminate,
parquet and click PVC)
2.2 Heating film installation process
Step 1: Measure the voltage
Step 2: Floor cleaning
Step 3: Insulating underfloor cutting
Step 4: Insulating underfloor setting
Step 5: Heating film cutting
Step 6: Heating film fixating
Step 7: Electric wire connection
Step 8: Insulation tape treatment
Step 9: Power consumption calculation
Step 10: Thermostat connection
Step 11: Test operation
Step 12: Covering of heating film protecting material
Step 13: Finishing material installation
⑤
④
③
②
①
Diameter of the wire: Ø2.5 mm²
The IN terminal of the thermostat -
power, OUT terminal – Film
For each film circuit be connected in
parallel.
When cutting the film, the cutting line
on the copper foil, wrap with insulation
tape.
