ViewingtheConnections

NOTE: When connecting a device via the Side AV input, you must use the supplied connection cables to enable connection. See the

illustrations above. | YPbPr can be used only when you connect a device that has a YPbPr output through the PC input with YPbPr to PC cable

(YPbPr to PC cable is not supplied). When the connection is made, switch to YPbPr source. To enable PC audio, you will need to use PC/YPBPR

AUDIO CONNECTION WHITE & RED inputs. | If an external device is connected via the SCART socket, the TV will automatically switch to AV

mode.| When receiving DTV channels (Mpeg4 H.264) or while in Media Browser mode, output will not be available via the scart socket. | When

using the wall mounting kit (optional), we recommend that you plug all your cables into the back of the TV before mounting on the wall. | Insert or

remove the CI module only when the TV is SWITCHED OFF. You should refer to the module instruction manual for details of the settings. Obtain

the Conditional Access Module (CAM) and the viewing card by subscribing to Digiturk or D-Smart. Insert the CAM and then the viewing card to

the slot that is located in the terminal cover at the rear side of the TV. The module should be correctly inserted, it is impossible to insert fully if

reversed. The CAM or the TV terminal may be damaged if the CAM is forcefully inserted.

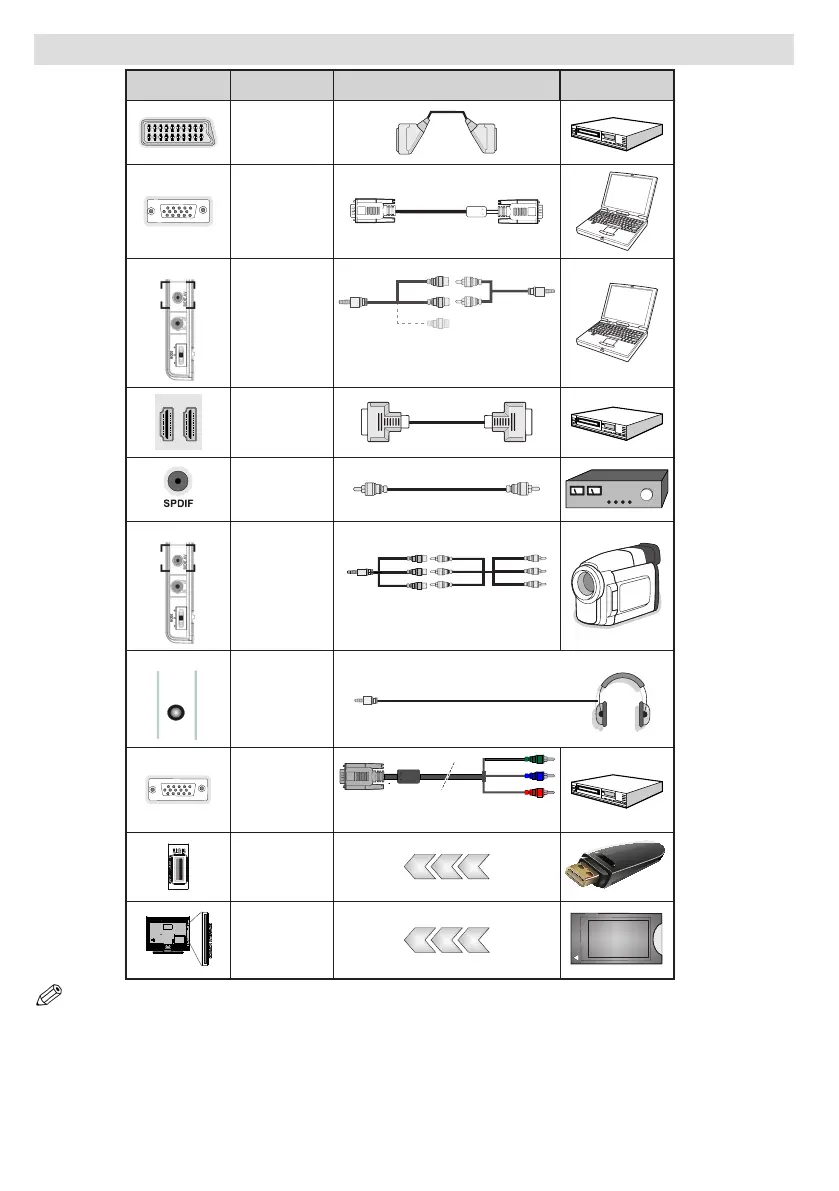

Connector Type Cables Device

Scart

Connection

(back)

VGA

Connection

(back)

SIDEAV

PC/YPbPr

Audio

Connection

(side)

Side Audio/Video

Connection Cable

(Supplied)

PC Audio Cable

(Not supplied)

HDMI

Connection

(back)

SPDIF

Connection

(back)

SIDEAV

SideAV

Connection

(side)

AV Connection Cable

(supplied)

HEADPHONE

Headphone

Connection

(side)

YPbPrVideo

Connection

(side)

YPbPr Connection

Cable (Not supplied)

USB

Connection

(side)

Connection

(side)

CAM

module
