12 Part Number 20000095 Rev J 5/15
Installation Section 2

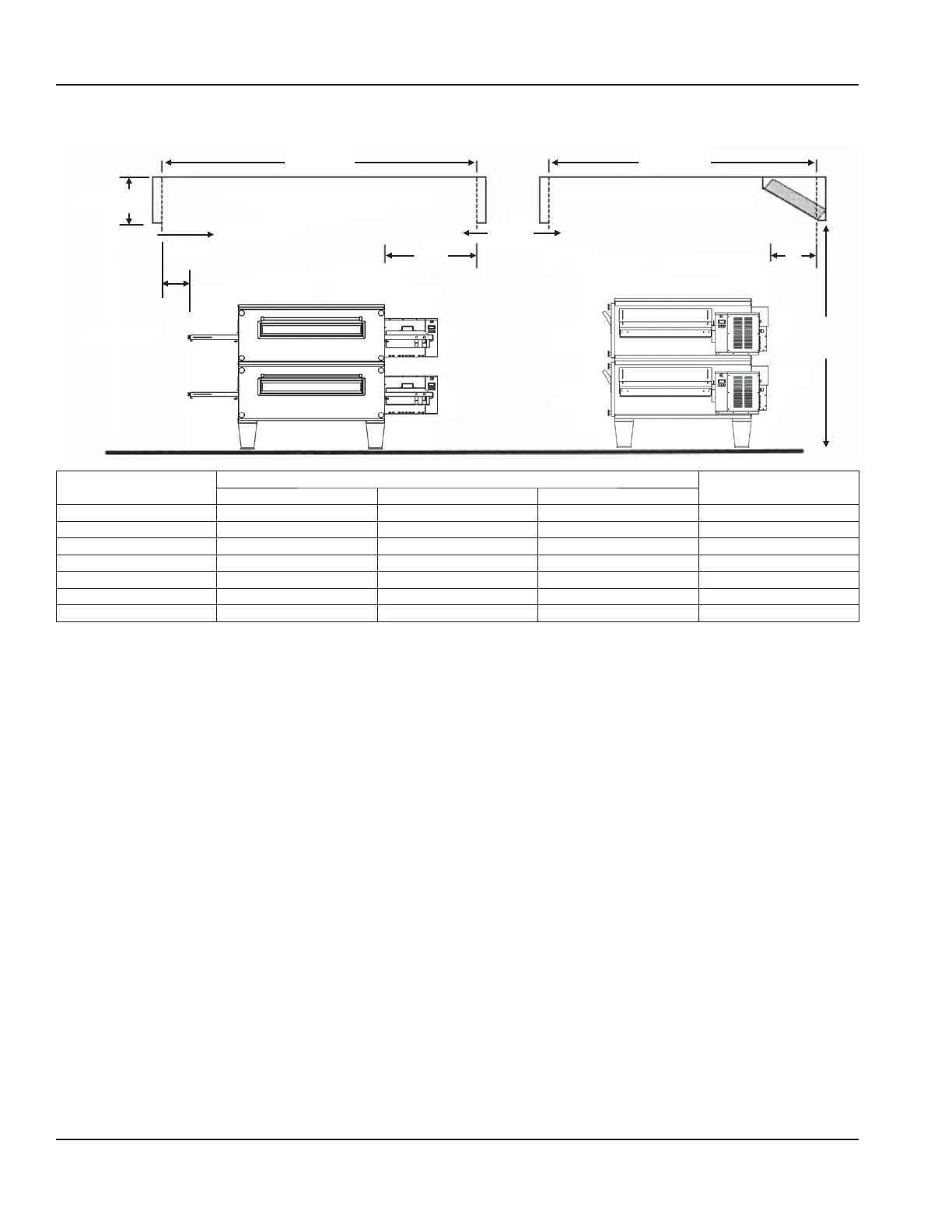

Canopy Ventilation Recommendations
E
C
B
A
F
D
18"-24"
457 mm - 610 mm
Capture Area Capture Area
Capture
Velocity
Capture Velocity
Dimension
Single or Double Stack
Triple Stack *
3240 3255 3270
A 96 in (2438 mm) 108 in (2743 mm) 120 in (3048 mm) 10 ft (3039 mm)
B 8 in (203 mm) 8 in (203 mm) 8 in (203 mm) 22 in (559 mm)
C 22 in (559 mm) 22 in (559 mm) 22 in (559 mm) 22 in (559 mm)
D 80 in (2032 mm) 80 in (2032 mm) 80 in (2032 mm) 6 ft 8 in (2020 mm)
E 12 in (305 mm) 12 in (305 mm) 12 in (305 mm) 12 in (304 mm)
F 80 in (2032 mm) 80 in (2032 mm) 80 in (2032 mm) 6 ft 6 in AFF (1981 mm)
Exhaust Flow 1400 – 1600 CFM 1600 – 2000 CFM 1800 – 2400 CFM —
AFF = Above Finished Floor
* Hood dimensions shown are for island mount - Size reductions may be possible for wall mount units.
NOTE: Hood dimensions and the positioning of the hood
over the oven will vary with hood manufacturers.
NOTE: Lincoln can provide oven spec sheets that show
the dimensions of the oven, kW or BTU ratings and other
information that will be useful to both the ventilation hood
supplier and the HVAC contractor.
