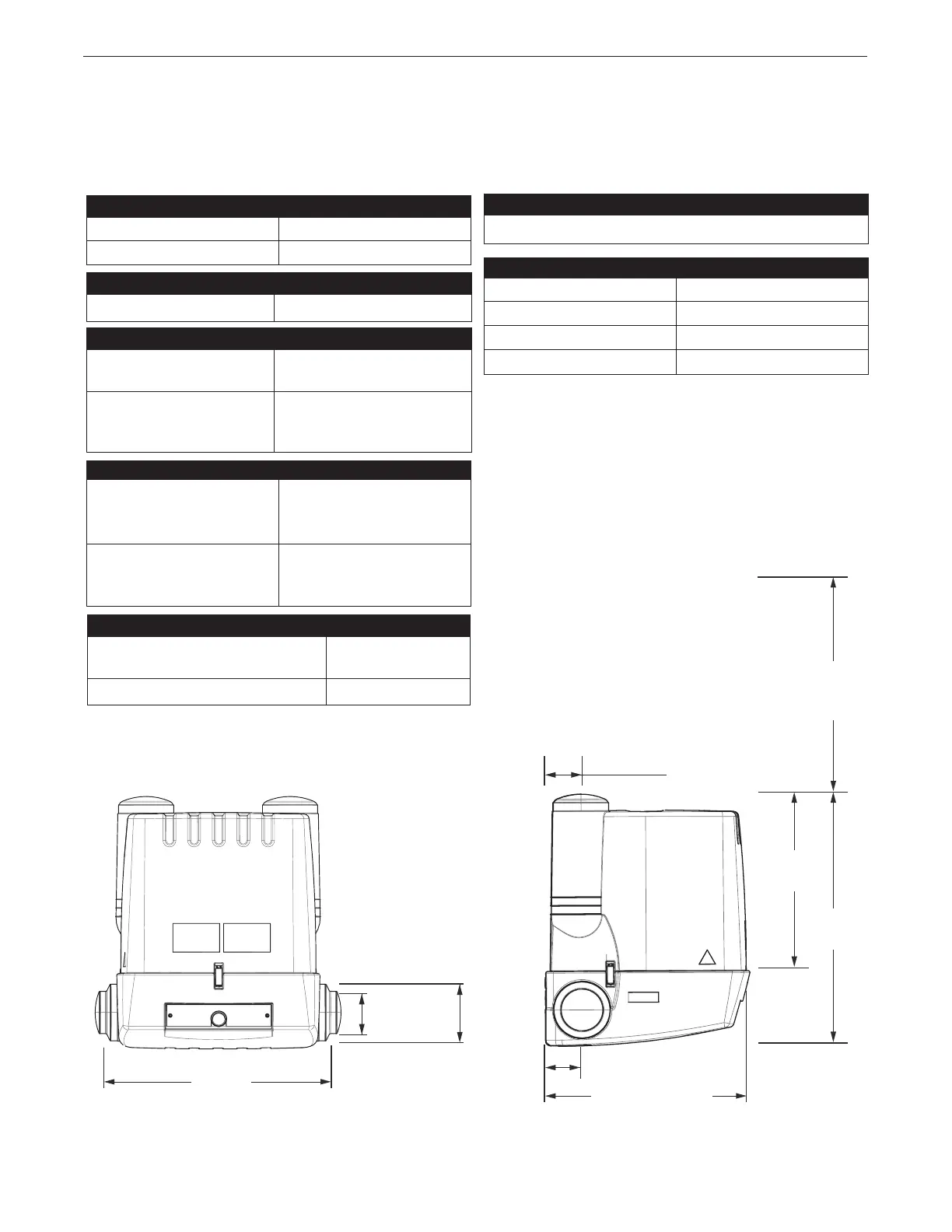

TECHNICAL SPECIFICATIONS -

K1654-4 - Single Arm Base Unit

K1654-5 - Dual Arm Base Unit

K1654-6 - High Efficiency Single Arm Base Unit

K1654-9 - High Efficience Dual Arm Base Unit

A-1

INSTALLATION

DIMENSIONS

AMBIENT CONDITIONS

MINIMUM TEMPERATURE 41ºF (5ºC)

NOMINAL 68º F (20º C)

MAXIMUM TEMPERATURE 113ºF (45ºC)

MAXIMUM RELATIVE HUMIDITY 80%

FILTER CLASS (ACCORDING TO ASHRAE 52.2)

PRISM WALL MOUNT SINGLE/DUAL ARM

UNTREATED: MERV 11

TREATED: MERV 14

PRISM WALL MOUNT HE SINGLE/DUAL ARM

MERV 16

FILTER SURFACE AREA

538 FT

(50 M

)

AIRFLOW RATE

PRISM WALL MOUNT

SINGLE ARM

MAX. 735 CFM (1,250 M

/H)

PRISM WALL MOUNT DUAL ARM

MAX. 1,200 CFM (2,040 M

/H) AT

SIMULTANEOUS USE OF TWO

PRISM 2400

OPERATING CAPACITY

EXTRACTOR TYPE LOW VACUUM; HIGH VOLUME

WEIGHT

SINGLE ARM 90 LBS (41 KGS)

DUAL ARM 102 LBS (46 KGS)

FILTER TYPE

PRISM WALL MOUNT SINGLE/

DUAL ARM BASE UNIT:

DISPOSABLE CELLULOSE

LONGLIFE FILTER CARTRIDGE

WITH PRECOAT

PRISM WALL MOUNT HE

SINGLE/DUAL ARM BASE UNIT:

DISPOSABLE CELLULOSE /

POLYESTER BLEND

LONGLIFE FILTER

28.74 in (730 mm)

35.43 in

(900 mm)

25.20 in

(640 mm)

31.89 in

(810 mm)

5.12 in (130 mm)

Ø7.67 in

(Ø195 mm)

Ø6.10 in

(Ø155 mm)

PRISM

WALL MOUNT

32 IN MIN OVERHEAD

CLEARANCE TO

TO REPLACE FILTER
