GENERAL DESCRIPTION

The Oil Guardian is a limestone dosing system to be installed between

Spark Guardian™ (spark arrester) and Statiflex

Filter Bank. The

integrated limestone reservoir is refilled from the top. Two agitator

mechanisms and a screw conveyor driven by three separate motors,

arrange administration and dosing of the limestone. The control box is

incorporated inside the front door. A separate booster fan provides

the required airflow to transport the limestone through the vertical

duct to the main duct.

Components:

The product consists of the following main components and elements:

A. Booster fan

B. Fan support

C. Limestone outlet duct

D. Limestone refill lid

E. Limestone reservoir

F. Agitator mechanism

G. Screw conveyor

H. Top cover

I. Control box (inside door)

TECHNICAL

SPECIFICATIONS

INSTALLATIONOIL GUARDIAN

™

GENERAL - OIL GUARDIAN

WEIGHT

LIMESTONE FEEDER

(NET; WITHOUT LIMESTONE):

379 LBS. (172 KGS.)

BOOSTER FAN + FAN SUPPORT:

60 LBS. (27 KGS.)

PACKED BULK DENSITY

(ISO 787/11)

MINIMUM: 1.5 G/ML

PREFERRED: 1.6 G/ML

pH VALUE (ISO 787/9) MINIMUM / PREFERRED: 9

OIL ABSORPTION (ISO 787/5) MINIMUM: 10 G/100 G

PREFERRED: 11 G/100 G

BUILT IN ACCORDANCE WITH

IEC 60204

UL 508A

PROTECTION CLASS

CONTROL BOX

IP 55, NEMA TYPE 1

SOUND LEVEL LIMESTONE FEEDER - 64 DB(A)

BOOSTER FAN DB(A)

AVAILABLE CONNECTION

VOLTAGES

400V/3 PHASE/50HZ

480V/3 PHASE/60HZ

600V/3 PHASE/60HZ

LIMESTONE

CONTENTS 18.5 GALLON (70 LITERS) -

EQUAL TO 165 LBS. (75 KGS.)

OF LIMESTONE

LIMESTONE ALARM LEVEL < 55 LBS. (25 KGS.)

LIMESTONE QUALITY CARBONATE CONTENT : > 95%

LIMESTONE CONSUMPTION DEFAULT: 12.5 G PER FILTER

CARTRIDGE PER HOUR

AMBIENT CONDITIONS

MINIMUM OPERATING

TEMPERATURE

41ºF (5ºC)

NOMINAL OPERATING

TEMPERATURE

68ºF (20ºC)

MAXIMUM OPERATING

TEMPERATURE

104ºF (40ºC)

MAXIMUM RELATIVE HUMIDITY 80%

MOTOR POWER (50 AND 60 HZ)

UPPER (AGITATOR) 250 W, 1/3 HP, 0.72 A

MIDDLE (AGITATOR) 375 W, 1/2 HP, 1.11 A

LOWER (SCREW CONVEYOR) 90 W, 1/8 HP, 0.52 A

BOOSTER FAN 750 W, 1 HP

AIRFLOW

DISTANCE TO MAIN DUCT MAXIMUM 32.81 FT. (10 M)

REQUIRED AIRFLOW IN

MAIN DUCT

MINIMUM 29.53 FT./S (9 M/S)

NOTE: Technical Specifications are subject to change without prior notice.

Specifications and guarantees are valid only when specified spare

parts and filters are used.

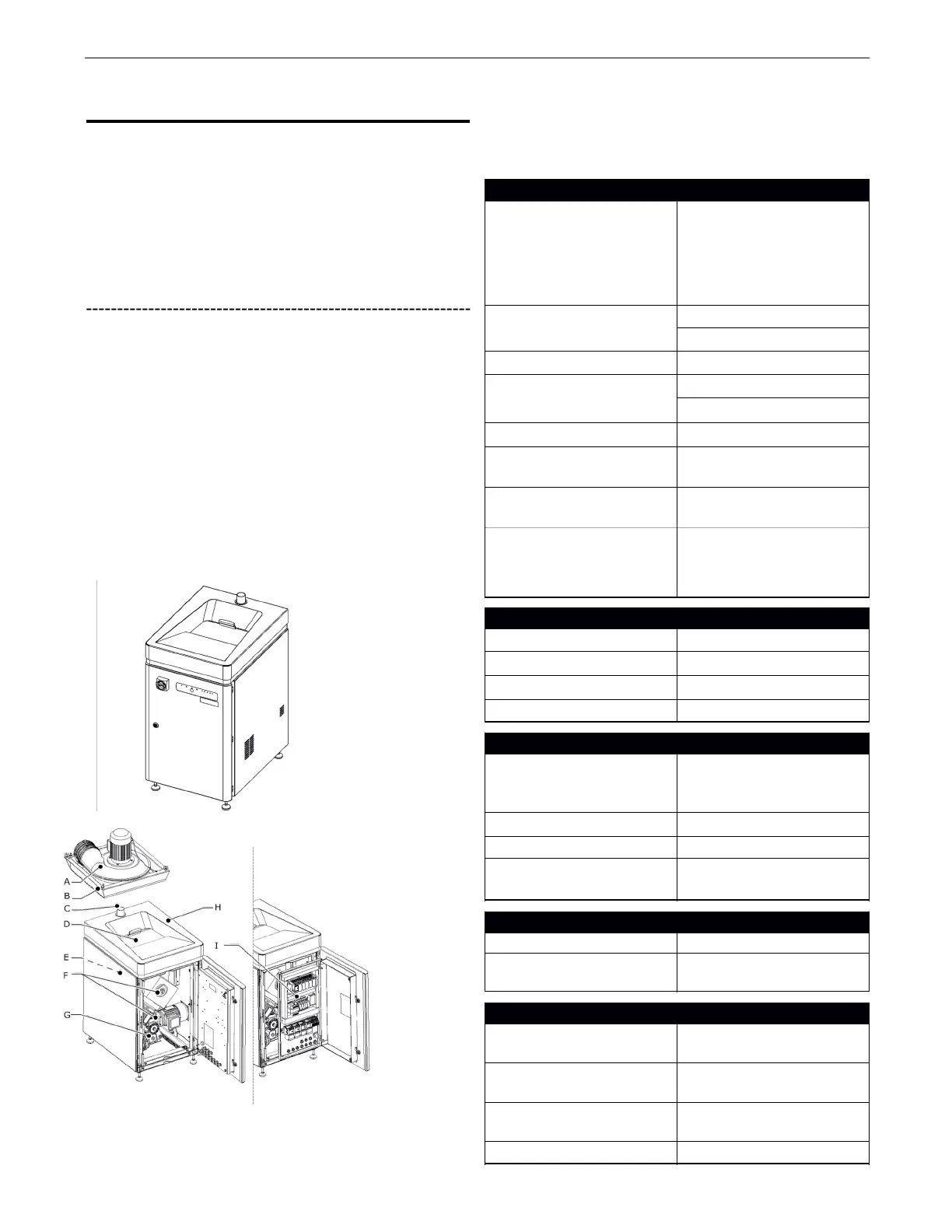

FIGURE 1 – OIL GUARDIAN™

FIGURE 2
