A-25

INSTALLATION

FUME EXTRACTION ARMS

MOUNTING THE CRANE RAIL EXTENSION

K1671-2, 14 ft. Extension Crane

(See Figure A.38)

5) Lift the extension part (I) and align it with the base (O).

6) Insert a bolt 3/4-10 UNC, 7.00” long (C) subsequently

through:

- steel plate (B)

- composite washer (D)

- upper synthetic bearing, applied to extension piece (N)

- base (O)

- lower synthetic bearing, applied to extension piece (M)

- nylon washer (J)

- steel washer (K)

8) Both tubes contain a supply wire, each attached with a

tie wrap. Cut both tie wraps.

9) Fold back 2/3 of both rubber seals (F).

10)

11)

Place the flexible hose over the tubes. To secure the

hose, at least one metal ring of the hose should be

applied over the ridges at the tubes.

12) Fold back both rubber seals and place them over the

hose. The rubber seals should cover the red plastic ring

0.5-1 in.

EB C D F

LKJNO

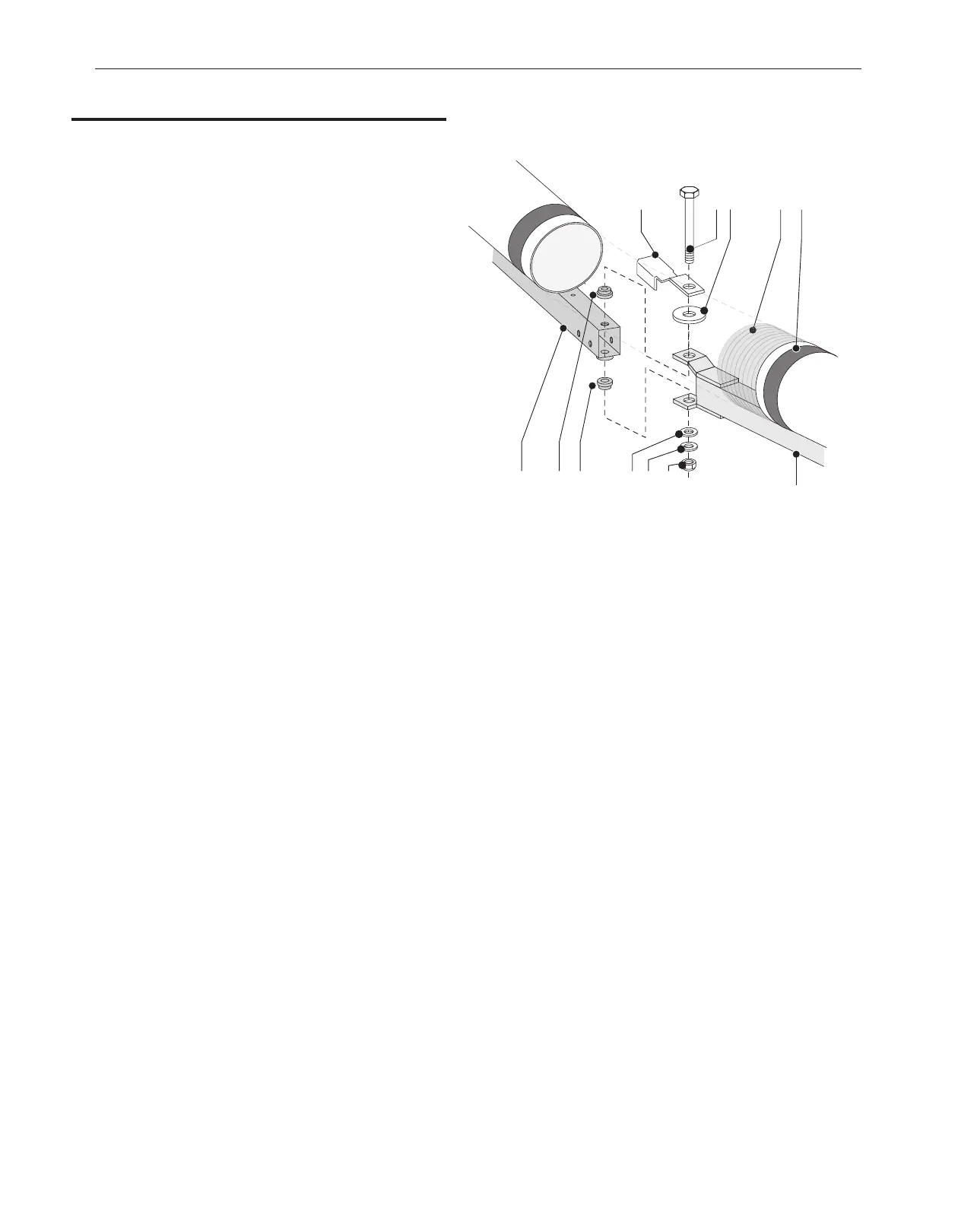

Figure A.38

Secure bolt with selflocking nut 3/4" (L).

Cut the wrap of the flexible hose (E).
