INSTALLATIONFUME EXTRACTION ARMS

0.0

1.0

2.0

3.0

4.0

5.0

6.0

7.0

0 200 400 600 800 1000 1200

STATIC PRESSURE (in. WG)

AIRFLOW (CFM)

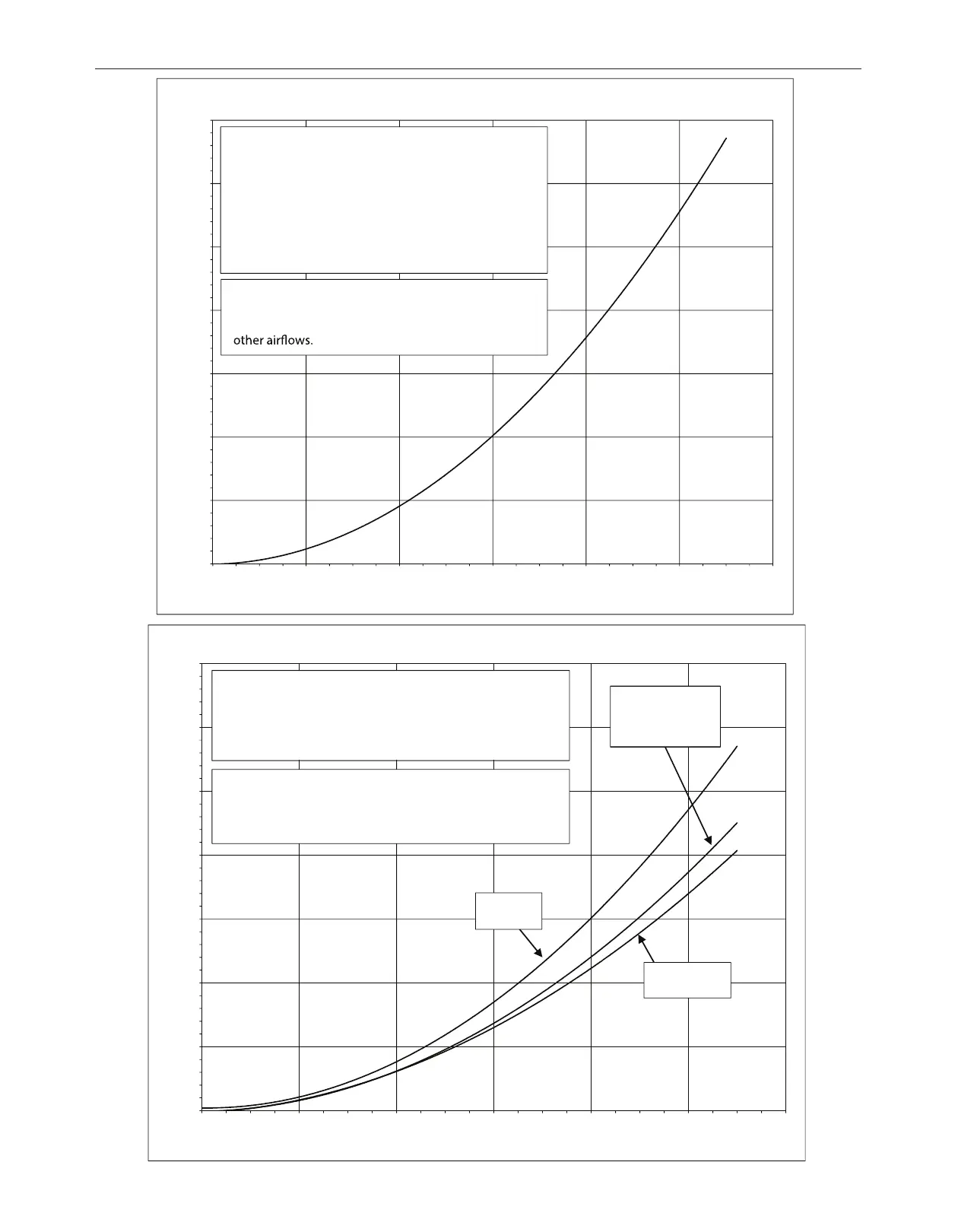

Pressure Drop for 10 ft and 13 ft Extraction Arms

Applies to the following Extraction Arms:

K1655-8 Prism Wall Mount 10 ft Flexible

K1655-9 Prism Wall Mount 13 ft Flexible

K1655-13 Prism Wall Mount 13 ft Flexible Low Ceiling

K2633-5 Prism Mobile 10 ft

K2633-6 Prism Mobile 13 ft

K2633-7 Prism Mobile 10 ft with Arc Sensor/Lamp Kit

K2633-8 Prism Mobile 13 ft with Arc Sensor/Lamp Kit

-For Extraction Arms with Arc Sensor/Lamp Kit

installed, add 0.2 in. WG at 650 CFM.

-Use Arc Sensor/Lamp Kit pressure drop curve for all

0.0

1.0

2.0

3.0

4.0

5.0

6.0

7.0

0 200 400 600 800 1000 1200

STATIC PRESSURE (in. WG)

AIRFLOW (CFM)

Pressure Drop for 5 ft and 7 ft Extraction Arms

Applies to the following Extraction Arms:

K1655-10 Prism Wall Mount 3-4.5 ft Telescopic

K1655-12 Prism Wall Mount 7 ft Flexible

K1655-14 Prism Wall Mount 5-8 ft

Telescopic Counter Weight

-For Extraction Arms with Arc Sensor/Lamp Kit installed,

add 0.2 in. WG at 650 CFM.

-Use Arc Sensor/Lamp Kit pressure drop curve for all

other airows

K1655-10

3-4.5 ft Telescopic

K1655-14

5-8 ft Telescopic CW

K1655-12

7 ft Flex

K1655-15 Prism Wall Mount 4-6 ft Telescopic Counter Weight

K1655-15

4-6 ft Telescopic CW
