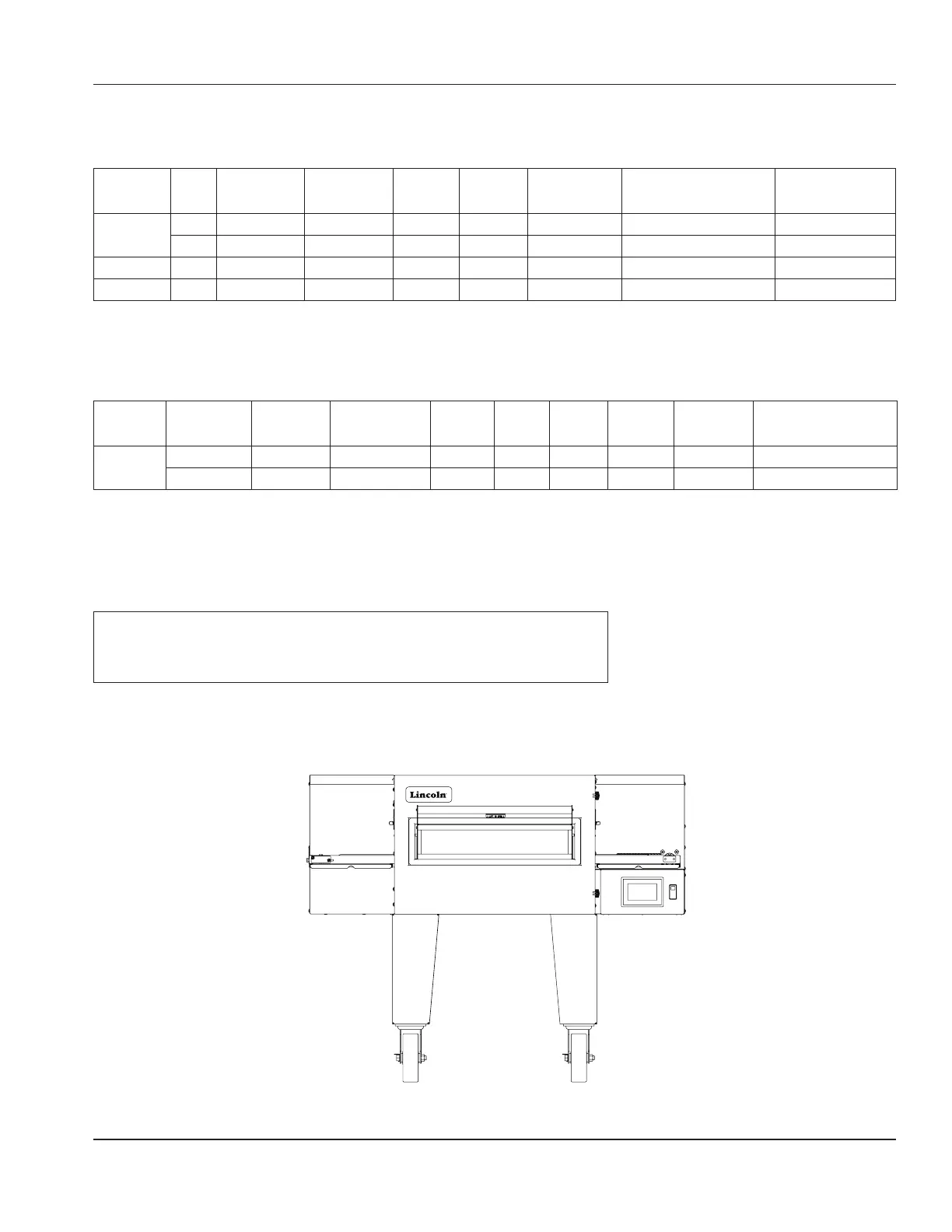

Section 2 Installation
Document #: LIN_EOGO_IOM_24APERION_4605890_Rev1 - 01/24 9
Utility Specifications
Electric Ovens
Region Phase Configuration Voltage (VAC)
Current
(A)
Power
(kW)
Frequency (Hz)
Recommended Electrical
Specification
Circuit Breaker
Rating (A)
US/Canada
3 ##24-SU 208 - 240 38.5 - 44.3 13.9 - 18.5 60 4 Wire, 3 Poles + G 50/60
3 XX24-LU 208 - 240 26 - 29.9 9.4 - 12.5 60 4 Wire, 3 Poles + G 35/40
US 1 XX24-LU 208 - 240 37 - 42.5w 7.7 - 10.2 60 3 Wire, 2 Poles + G 50
Canada 1 XX24-LU 208 - 240 37 - 42.5 7.7 - 10.2 60 3 Wire, 2 Poles + G 50/60
## - 16, 20, 24, 28
XX – 16, 20, 24
Gas Ovens
Region Configuration Fuel Max Input Rate
Burner
Pressure
Voltage Current Phase Frequency
Electrical Input
Configuration
US/Canada
##24-GUP LP Gas 60,000 BTU/hr 10" W.C. 120 VAC 9 A 1 60 Hz 3 Wire, L + N + G
##24-GUN Natural Gas 60,000 BTU/hr 4" W.C. 120 VAC 9 A 1 60 Hz 3 Wire, L + N + G
** NOTE: For proper operation, the gas valve requires a nominal inlet pressure of 7 inches of H
2
O for natural gas and 11 inches of H
2
O column for L.P gas.
A minimum inlet pressure of 1.0 inch of H
2
O column above the manifold setting (NAT. manifold 4” H
2
O, L.P manifold 10” H
2
O) must be maintained with no
pressure drop from the no load to full load condition. The maximum inlet pressure must be maintained at or below 1/2 PSIG (14.5 inches H
2
O column). Refer to
the chart in Section 1 for pressure conversions.
All ovens require separate service and dedicated neutral.
Notice
Do not install the (these) oven(s) in any area with an ambient temperature in
excess of 95°F / 35°C. Doing so will cause damage to the unit.
Optional Half Pass Window
