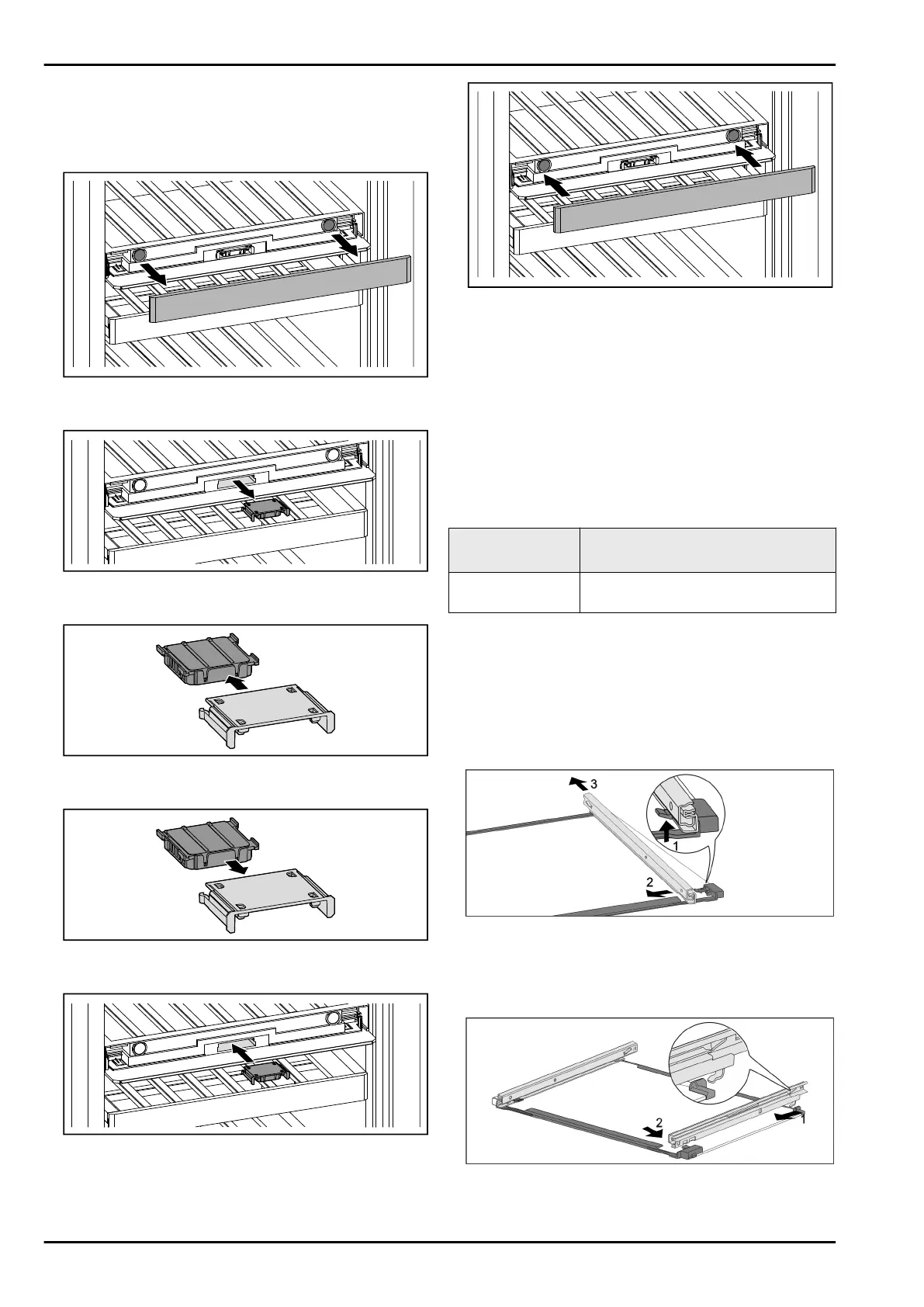

9.1.1 Replacing the FreshAir activated charcoal
filter
Must be carried out multiple times depending on the equip‐
ment.
Fig.99
u
Remove the panel.
Fig. 100
u
Pull the drawer out.
Fig. 101
u
Pull out the filter.
Fig. 102
u
Insert the new filter.
Fig. 103
u
Push the drawer in.
Fig. 104
u
Set the panel back in place.
9.2 Disassembling / assembling pull-
out systems
9.2.1 Notes on disassembly
You can disassemble some of the pull-out systems for
cleaning. Your appliance can contain a variety of pull-out
systems.
The following pull-out systems can be disassembled or
cannot be disassembled:
Pull-out system
can be disassembled/
cannot be disassembled
Freezer section
partial pull-out
can be disassembled (see Partial pull-
out freezer compartment)
9.2.2 Drawer on telescopic rails
Partial pull-out freezer compartment
Disassembling pull-out system
Make sure the following prerequisites are met:
q
Drawer has been removed.
q
Glass shelf has been removed.
Fig. 105 Glass shelf with rails
u
Push up front click-in hooks. Fig. 105(1)
u
Move the pull-out rails to the side Fig. 105 (2) and to the
rear Fig. 105(3).
Installing pull-out system
Fig. 106 Glass shelf with rails
u
Hook in rail at the back. Fig. 106(1)
u
Hook in rail at the front. Fig. 106(2)
Maintenance
* Depending on model and options 23
