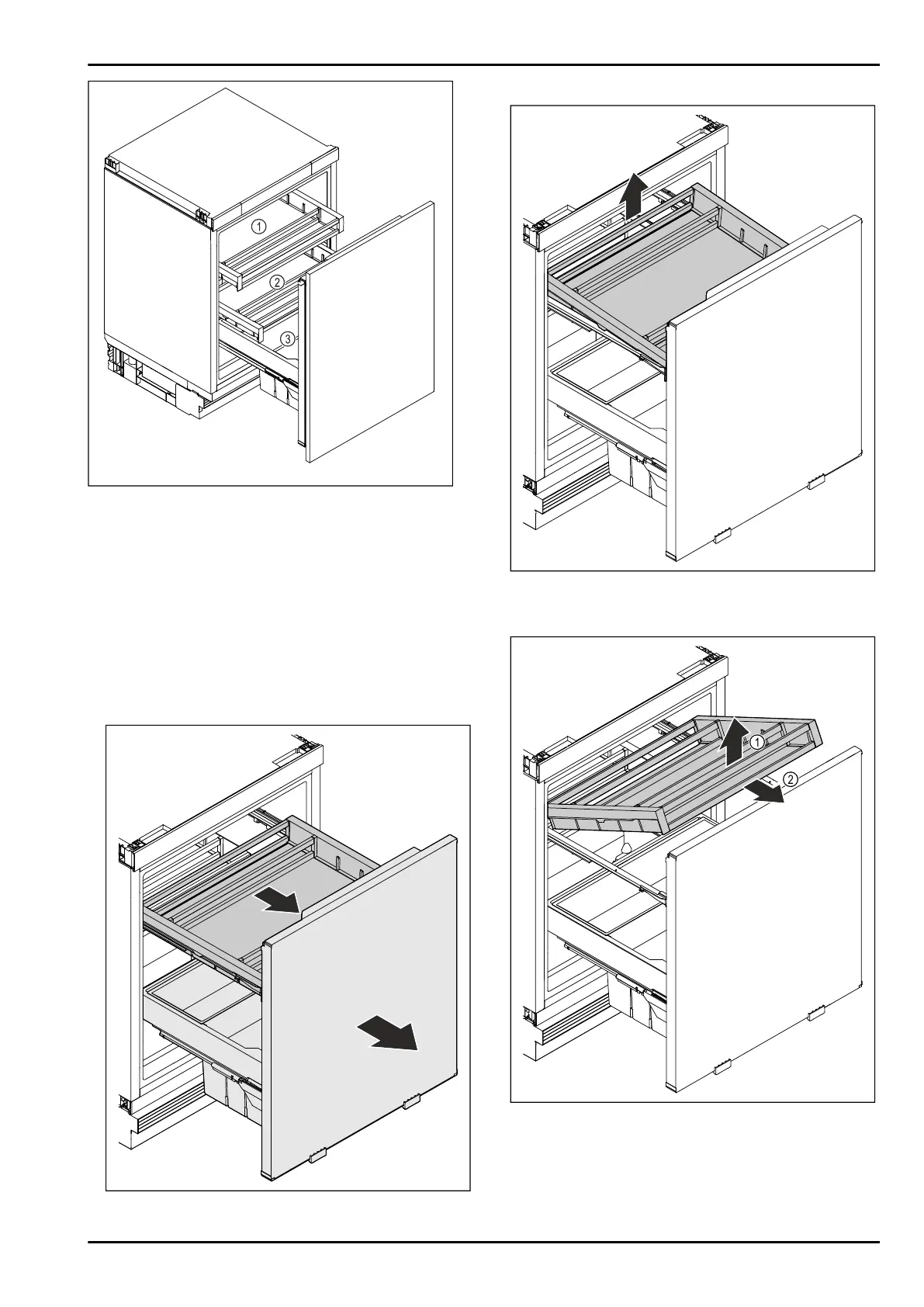

Fig. 82 Example illustration
(1)
Top drawer with
compartment divider
(3) Container with fruit
and vegetable box and
compartment divider
(2) Bottom drawer with
compartment divider
Removing the drawer
Remove the individual drawers in the telescopic unit in the
same way.
Ensure that the following requirements are met:
❑
Drawer is emptied.
❑
Telescopic unit is pulled out as far as it will go.
Fig. 83 Example illustration
►
Pull the drawer out as far as it will go.
Fig. 84 Example illustration
► Pull the rear drawer up.
▷ Drawer detaches from the rails.
1
2
Fig. 85 Example illustration
► Pull the drawer out forwards at an angle.
▷ The drawer has been removed.
Removing the compartment dividers
You can move the individual compartment dividers in the
telescopic unit in the same way.
Maintenance
20 * Depending on model and options
