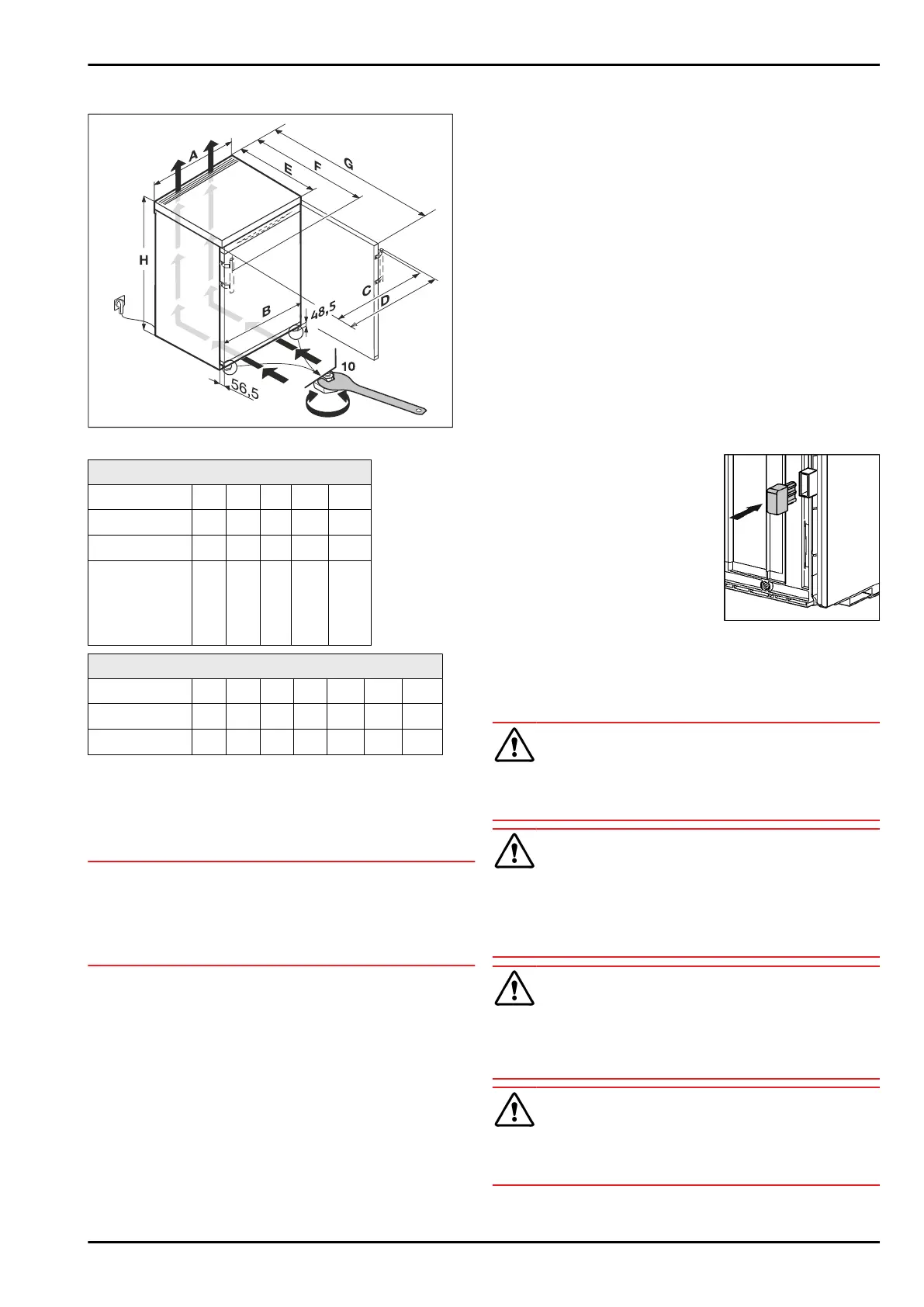

4.4 Installation dimensions
Fig.7
Dimensions without lever handle (mm):*
H A C E G
F..10.. 680 550 547
607
x
1106
x
F..14.. / FN..14.. 850 550 547
607
x
1106
x
TG 14Ve04
TG 14Vd04
TG 14Vc04
TGN 14Ve04
850 550 547
607
x
1106
x
Dimensions with lever handle (mm):*
H A C D E F G
F..14.. / FN..14.. 850 550 545 589
607
x
648
x
1112
x
TG14Vddg04 850 550 545 589
607
x
648
x
1112
x
x
This dimension increases by 35 mm on appliances with
attached wall spacer brackets. (see 4.7 Mounting wall
spacers)
4.4 Ventilation requirements
NOTICE
Danger of overheating due to insufficient air ventilation!
The compressor may be damaged if there is insufficient air
ventilation.
u
Take care to ensure adequate air ventilation.
u
Observe the ventilation requirements.
If the appliance is integrated into a fitted kitchen, the
following ventilation requirements must be adhered to:
-
As a rule, the larger the ventilation space the more effi‐
ciently the appliance can run.
4.5 Transporting appliance
Note when transporting the appliance:
u
Transport the appliance upright.
u
Use two people to transport the appliance.
During first use:
u
Transport the appliance packaged.
When transporting appliances after initial commissioning
(e. g. moving or cleaning):
u
Empty the appliance.
u
Secure the door against unintentional opening.
4.6 Unpacking the appliance
Before you connect the appliance, report any damage imme‐
diately to the delivery company.
u
Check the appliance and the packaging for damage
during transport. Contact the supplier immediately if you
suspect any level of damage.
u
Remove all materials from the back or the side walls
of the appliance that may prevent proper installation or
ventilation.
u
Remove all protective films from the appliance. Do not
use sharp or pointed objects for this.
4.7 Mounting wall spacers
With wall spacers, your device achieves the declared energy
consumption and no condensation forms in high ambient
humidity. The device is fully functional without the spacer
brackets, but its energy consumption will be slightly higher.
If you insert the wall spacers, then the device depth
increases by approx.35mm.
u
Appliance with enclosed wall spacers: Insert the wall
spacers on the rear of the appliance at the bottom left
and right.
4.8 Setting up the appliance
CAUTION
Risk of injury due to heavy appliance!
u
Have two people transport the appliance to its installa‐
tion site.
WARNING
Risk of fire due to short circuit!
u
When you set the appliance up: do not kink, jam or
damage the mains cable.
u
The appliance must not be operated with a defective
mains cable.
WARNING
Danger of injury and damage due to the appliance being
unstable!
The appliance can topple over.
u
Secure the appliance as described in the instructions.
WARNING
Fire hazard and danger of damage!
u
Do not place appliances emitting heat e.g. microwaves,
toasters etc. on the appliance!
Installation conditions
8 * Depending on model and options
