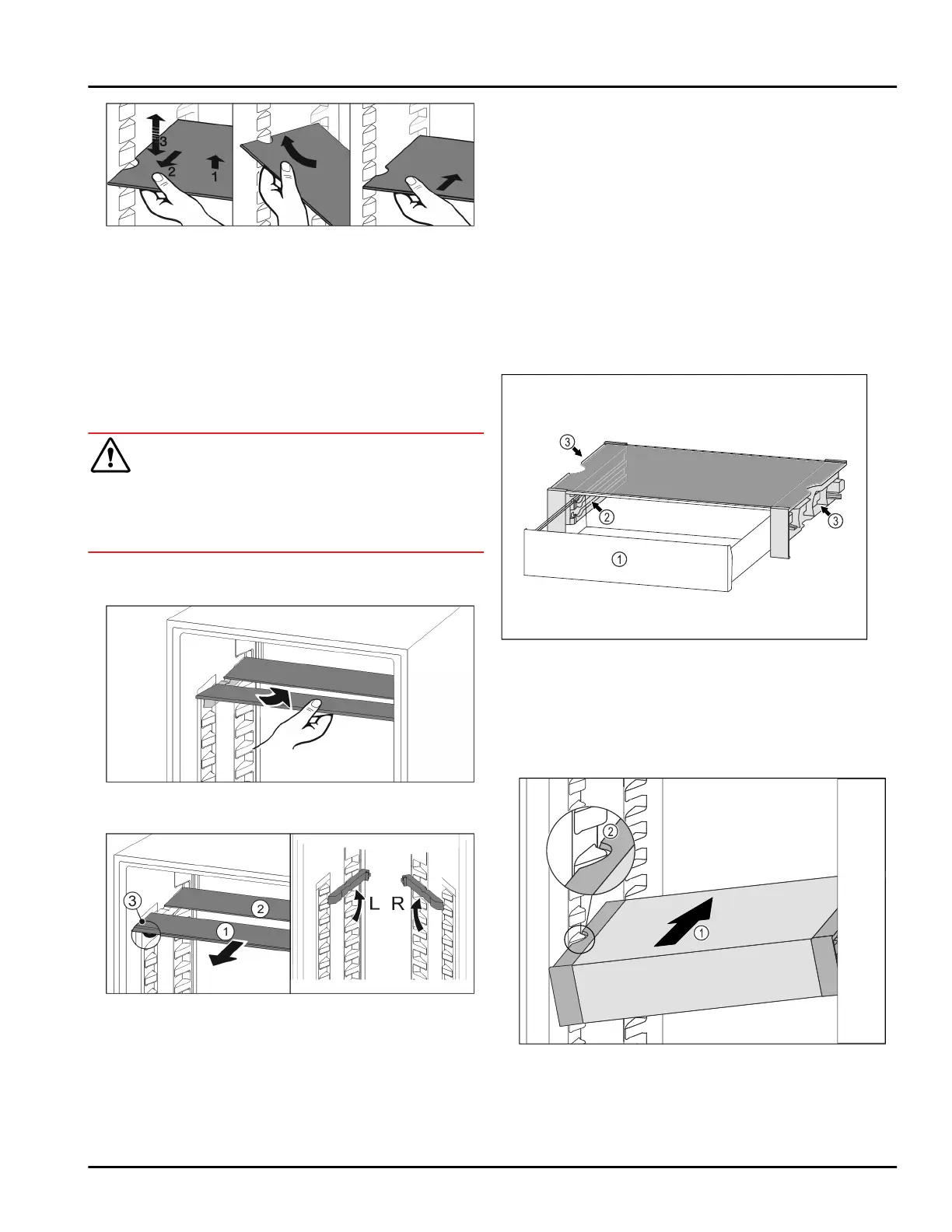

Fig.131
u
Take out the shelf completely: Pull out to the front.
u
Easier removal: Set the shelf at an angle.
u
Reinsert the shelf: Push it in to its stop limit.
w
Pull-out stoppers are pointing down.
w
Pull-out stoppers are behind the front shelf.
8.3 Split shelf
8.3.1 Using the split shelf
CAUTION
Broken shelves!
Danger of cuts.
u
Only remove storage shelves when there is nothing
on them
Extension stops secure the shelves against being acci‐
dentally pulled out
Fig.132
u
Push the split shelf underneath as in the illustration
Fig.133
Adjusting heights:
u
Pull the glass panels out Fig. 133 (1) from the front,
one at a time.
u
Pull the support rails out of their retainers and snap
into place at the height you want them.
u
Slide in the glass panels one at a time.
w
Flat pull-out stoppers at the front, right behind the
support rail.
w
Taller pull-out stoppers at the back.
Using both shelves:
u
Hold the bottom glass panel with one hand and pull
it to the front.
w
The glass panel Fig.133(1) with the trim strip is at the
front.
w
The stops Fig.133(3) point downward.
8.4 VarioSafe
The VarioSafe offers space in the refrigerator compart‐
ment for small groceries, packages, tubes and jars, for
example.
Fig.134
(1)
VarioSafe drawer (3) Recesses on the left
and right side panel
(2) Side panels with ribs
for VarioSafe drawer
8.4.1 Inserting the VarioSafe
Fig.135
u
Insert the VarioSafe into the refrigerator compart‐
ment at an angle Fig. 135 (1) until the recesses in the
side Fig.135(2) of the VarioSafe are at the level of the
support rib in the refrigerator compartment.
Equipment
36 * Depending on model and options
