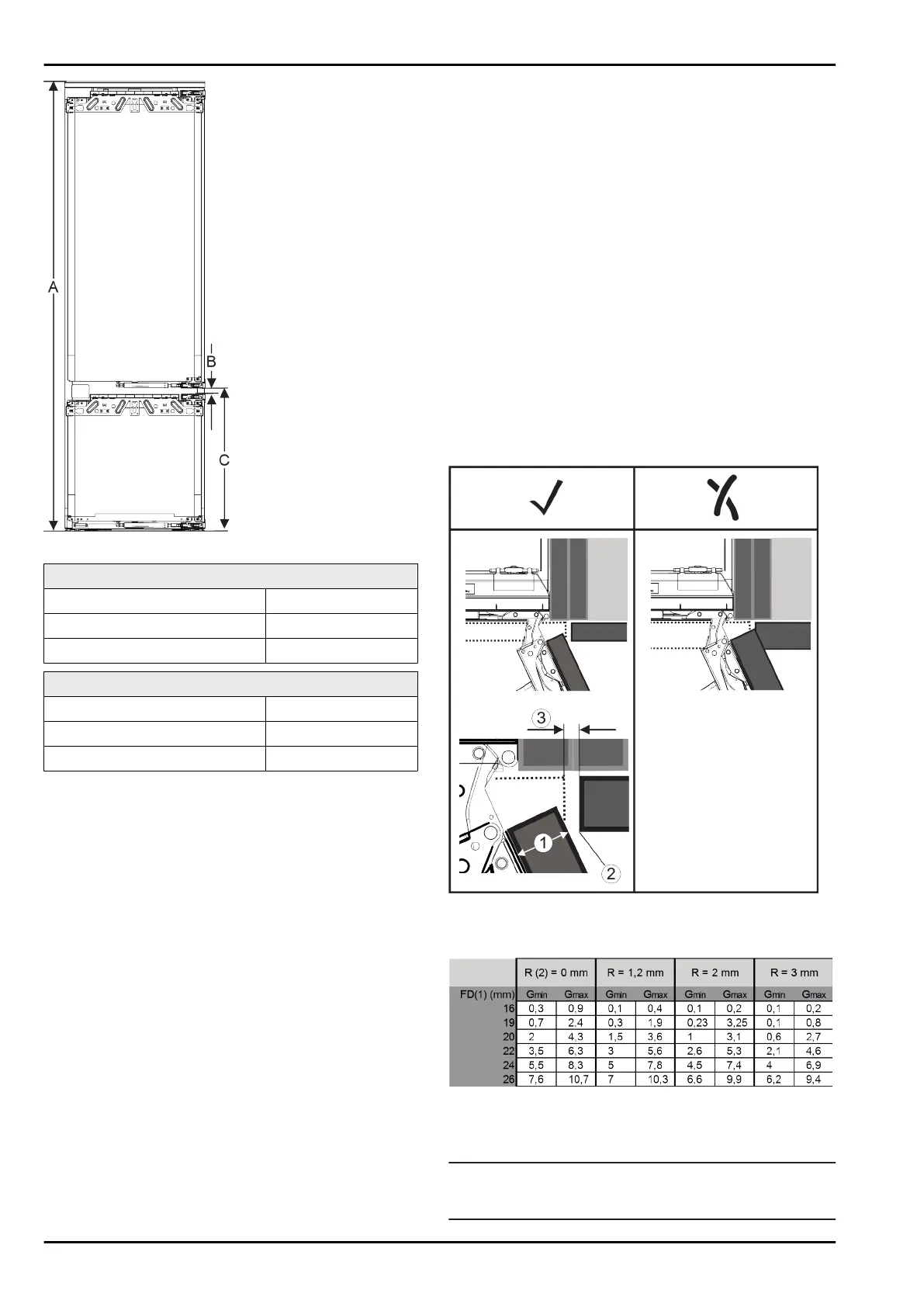

Fig. 68 Clearances for a 2-door cabinet door*
Recess height 178-2 drawers*
Appliance height (A) (mm) 1770
Distance (B) (mm) 15
Clearance (C) door-on-door (mm) 549+15 (21 5/8 + 5/8)
Recess height 178-3 drawers*
Appliance height (A) (mm) 1770
Distance (B) (mm) 15
Clearance (C) door-on-door (mm) 695+15 (27 3/8 + 5/8)
Other cabinet door above, below or next to it:
-
The vertical gap between custom panels must be 4mm.
-
The horizontal gap between custom panels must
be 4 mm. Check the risk of them clashing here.
(see 17.3 Setting the clearance to avoid collision)
Weight and hinges:
-
With heavy furniture fronts, the stress on the hinge is
very high. The hinge may be damaged. Please note the
maximum weight specification for your appliance in the
chapter Furniture front weights (see 6 Custom panel
weights) .
-
If the cabinet front exceeds the maximum permitted
weight, an appliance with door-tracking device can help
by loading the weight over several concealed hinges on
the cabinet.
-
If you use long unit fronts that protrude far above the
appliances, we recommend an additional door hinge (e.g.
Kamat), which must have the same pivot point as the
fixed door hinge used with your appliance. By using
another hinge (Kamat), the weight is shared over several
points. The use of a milled compensating fastening is
recommended for high unit fronts to counteract warping
(convex/concave).
17.2 Mounting the cabinet front(s)
When installing, note:
- Cabinet front must be installed symmetrically to the
refrigerator door.
- Adjoining cabinet front is exactly level.
- Adjoining cabinet front has the same edge radius as the
front of the appliance.
- Cabinet front is flat and tension-free.
- The front panel has a minimum depth setting of approx.
2mm to the body.
u
Install the appliance in the recess. (see 16 Installing the
appliance in the recess)
u
Fasten the front panel to the appliance door.
(see16 Installing the appliance in the recess)
u
Check that the front panel can close unobstructed.
(see 17.3 Setting the clearance to avoid collision)
17.3 Setting the clearance to avoid colli‐
sion
After installing the cabinet front(s), check that the cabinet
fronts do not collide.
Fig. 69
(1)
Front thickness (FD) (3) Clearance (S)
(2) Edge radius (R)
Fig. 70 Table of clearance limits
G
min
= min. clearance in mm
G
max
= max. clearance in mm
Note
When making adjustments, always make sure that the
cabinet front suits the general appearance.
Cabinet fronts
* Depending on model and options 19
