GR20-Series Assembly
The GR20 quick disconnect
assembly is designed to allow
easy installation and removal
of the pump. When installed
correctly, the guide rail
assembly creates a tight
discharge seal and provides a
means to lift the pump
without disconnecting any of
the discharge piping. Ensure
that installation is done per
instructions.

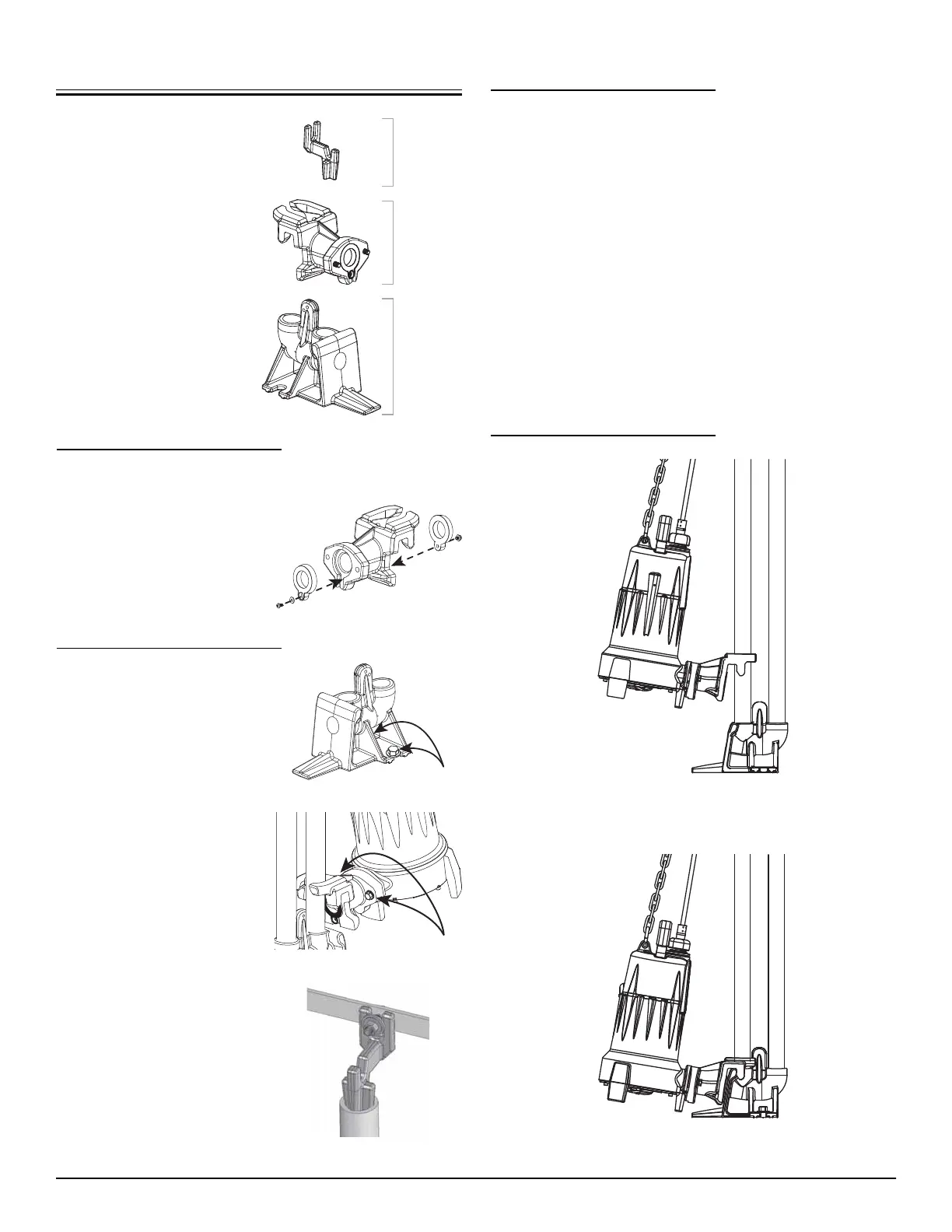

The guide rail system consists
of three parts: Upper Rail
Support Bracket, Mounting
Claw, and Base.
Preparation
The claw has sealing grommets that provide the seal between the
claw and base and also the seal between the claw and the pump.
1. Insert grommets into
mounting claw.
2. Apply a light amount of
sealing grease (provided) to
the face of the grommets.
Installation
1. Mount the base to the floor of
the tank, referring to the Base
Mounting Template
measurements. Secure the
base to the basin floor at the
base slots with 1/2” bolts
(stainless steel recommended).
2. Using supplied bolts, mount
the claw onto the pump
discharge.
3. Insert upper rail support
bracket into guide rail pipe
and secure to tank.
Note: a heavy guide rail pipe
of 1-1/4” galvanized or
stainless steel is
recommended.
Pump Connection
1. Using a lifting chain, slip the pump claw over the upper guide
rail support bracket.
2. Lower the pump at an angle down the guide rail into the tank
(basin).
As the pump nears its final position, the straightening rib
squares the pump bracket with the guide bracket ears. When
the pump bracket ears hook the guide bracket ears, the chain
will slacken.
3. Grasp the lifting chain and shake the pump to ensure a good
seat with the gasket.
The pump is suspended by the bracket ears. The weight of
the pump compresses the gasket against the mating flange of
the guide bracket base.
4. The lifting chain may be removed from the hoist and hooked
near the upper rail support bracket.
Operation
Upper
Rail
Support
Bracket
Mounting
Claw
Base
Disconnected Position
Guide Rail Pipe
Discharge
Operational Position
Discharge
Guide Rail Pipe
