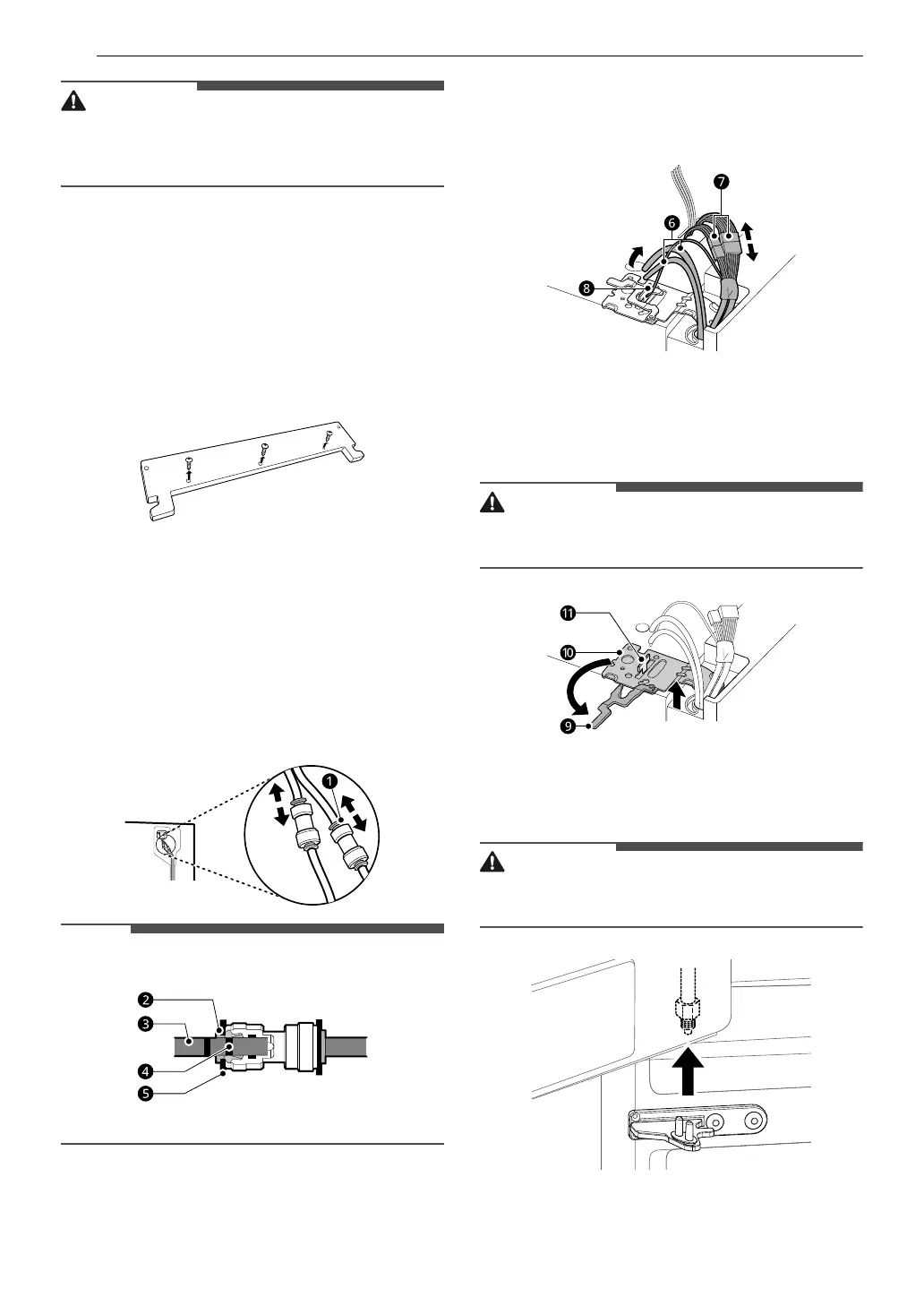

16 INSTALLATION
WARNING
• Do not hold the handle when removing or
replacing the doors and drawers as the handle
may come off.
• Tools Needed
- Phillips screwdriver
- Flat-head screwdriver
Removing the Hinge Cover
Remove the screws from the hinge cover at the top
of the refrigerator. Lift the hook (not visible),
located at the bottom of the front side of the cover
with a flat-head screwdriver.
Removing the Left Refrigerator
Door
1 The water supply is connected to the upper
right part of the rear surface of the
refrigerator. Remove the clip in the joint area.
Hold the water supply connection and gently
push the collet
a to detach the water supply
line as shown.
NOTE
• Disassembling/Assembling the Water Lines
b Collet c Tube d Insert line e Clip
2 Pull out the water supply lines f. Disconnect
all the wire harnesses g . Unscrew the
ground wire
h.
3 Rotate the hinge lever i counterclockwise.
Lift the top hinge
j free of the hinge lever
latch
k.
CAUTION
• When lifting the hinge free of the latch, be
careful that the door does not fall forward.
4 Lift the door from the middle hinge pin and
remove the door.
CAUTION
• Place the door, inside facing up, on a
nonscratching surface.
