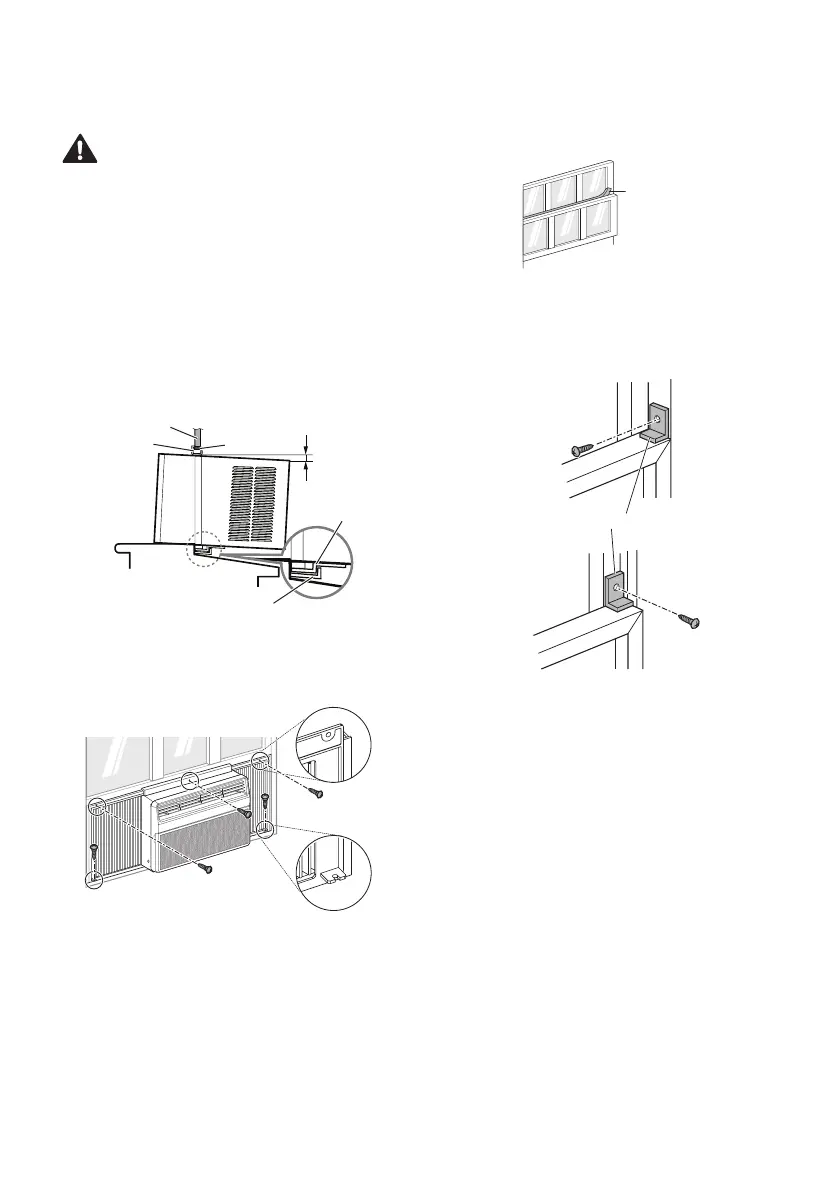

Unit Installation
CAUTION
• During the following step, hold unit firmly until
window sash is lowered to top channel behind
side panel frames. Personal injury or property
damage may result if unit falls from window.
1
Set the air conditioner in the window so that
is centered. Place the air conditioner so that
front edge of the bottom guide is against the
back edge of the sill.
Bring the window down so that the front edge
of the upper guide is in front of the window.
Make sure that air conditioner is level or tilting
slightly to the outside.
About 1/4”About 1/4”
SealSeal
Window FrameWindow Frame
Bottom GuideBottom Guide
Upper GuideUpper Guide
L BracketL Bracket
2
Extend the guide panels to fill the window
opening and use 5 type B screws to secure
them to the window.
Screws Screws
(Type B)(Type B)
NOTE
• The feature may be changed according to the
type of model.
3
Cut the non-adhesive foam strip to the proper
length and insert it between the upper window
sash and the lower window sash.
Foam Strip Foam Strip
(Non-adhesive)(Non-adhesive)
4
To prevent broken glass or damage
to windows, on vinyl or other similarly
constructed windows, attach the L bracket with
a type A screw.
Screw Screw
(Type A)(Type A)
L BracketL Bracket
VinylVinyl
Screw Screw
(Type A)(Type A)
WoodWood
