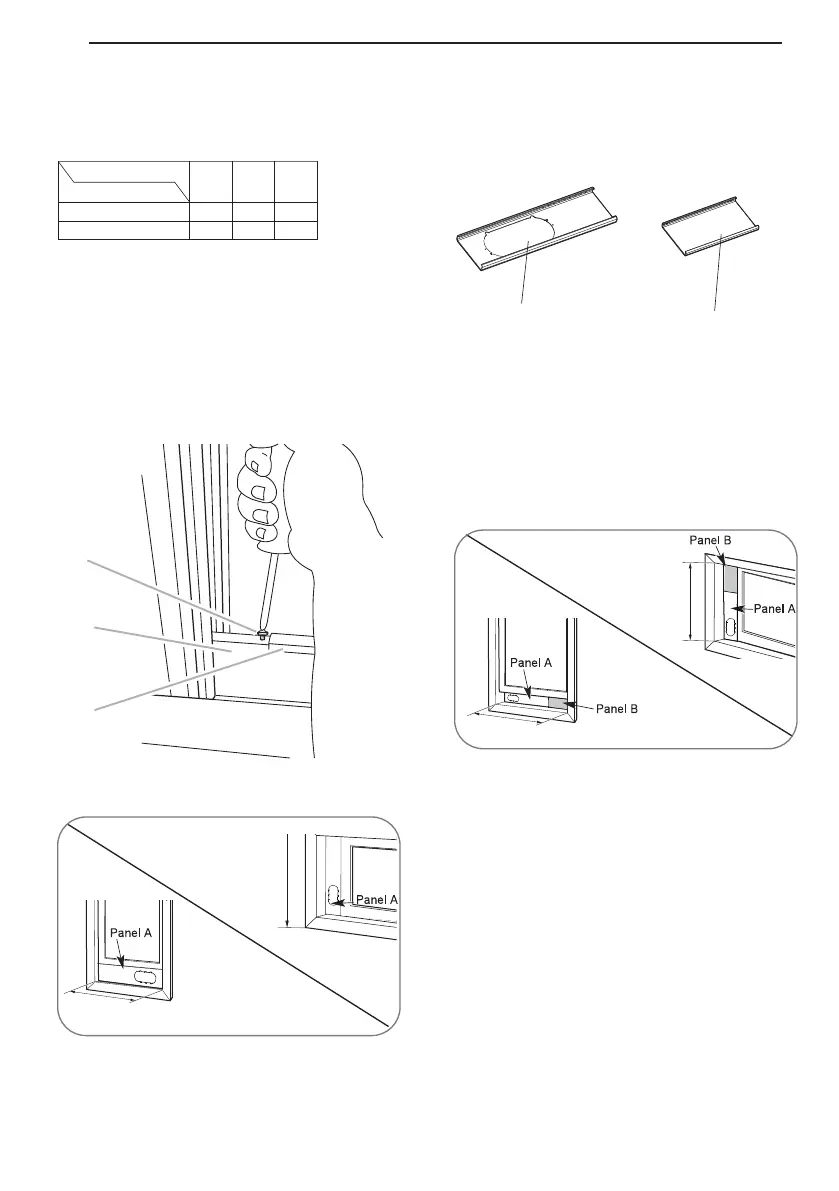

Window Vent Panel and Extensions(LP0825WSB)
The window installation kit allows you to install the air conditioner in most vertical-sliding windows
25″ to 47″ wide, or horizontal-sliding windows from 25″ to 47″ high.
Fig. b
Fig. a
Window Installation Kit
(Includes 1 window vent panel and 1 Extension Panel)
Panel A (25″)
Panel B (25″)
25″
25″
26″ – 47″
26″ – 47″
1 Extension Panel
1 Window Vent Panel
Panel
Window opening
A
25″
B
25″
Fig.
25″
√
26″ - 47″
√ √
1. Select the panels required based on the
window opening, as shown above.
2. For longer window openings, assemble and
adjust the panels to fit the window opening.
Use screws (included) to fix the panels
together at the proper length.
For window openings from 26″ to 47″, use the
window vent panel (Panel A) and extension
Panel B.
For an 25″ window opening, use the window
vent panel (Panel A) by itself.
a
b
C
B
A
INSTALLATION
14
I
