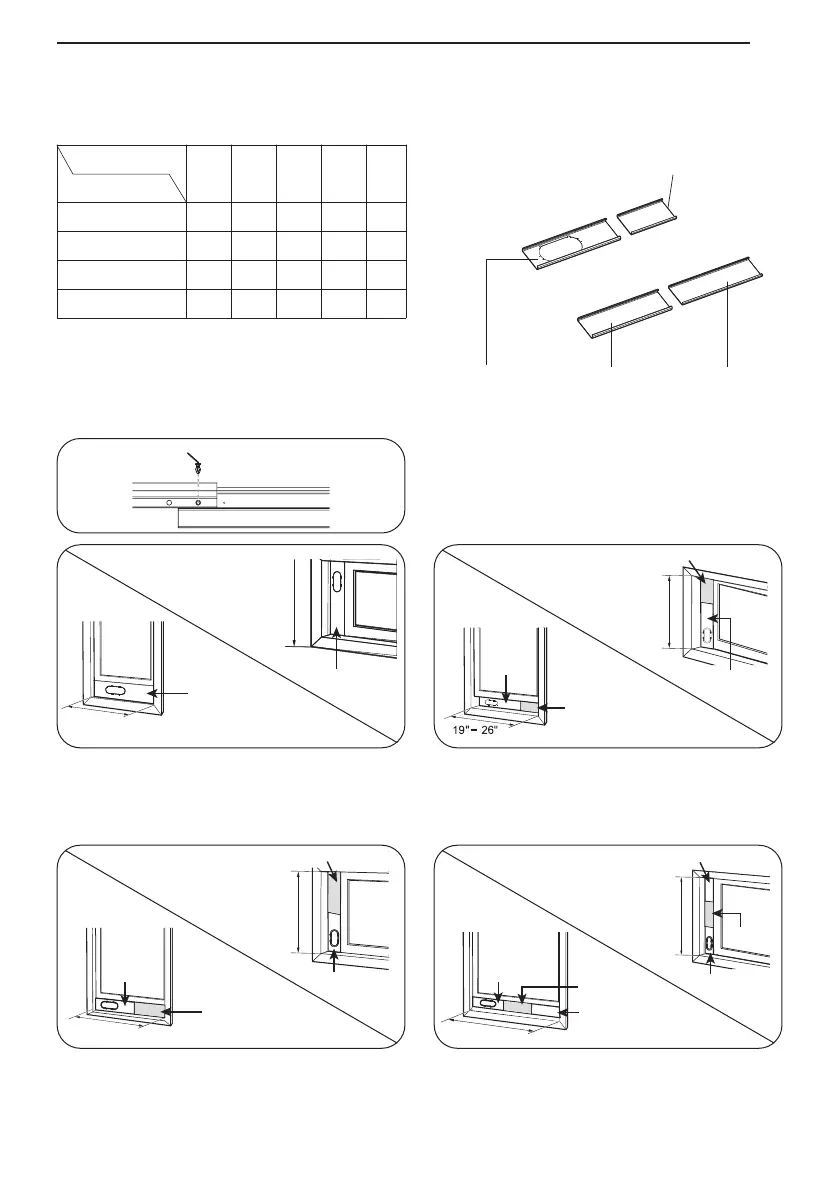

Window Vent Panel and Extensions(LP1025WSSM)
The window installation kit allows you to install the air conditioner in most vertical-sliding windows 18″
to 50″ wide, or horizontal-sliding windows from 18″ to 50″ high.
1. Please check your window size and choose
the fit from the above table.
2. lf your window size requires more than 2
panels, after adjusting the length, please
secure the panels with rivets, E.
Panel Length
Window Length
HIJK
Fig.
18ʺ 9
11
/
16
ʺ 18ʺ 18ʺ
18ʺ √ a
19ʺ - 26ʺ √ √ b
27ʺ - 34ʺ √ √ c
35ʺ - 50ʺ √ √ √ d
For an 18" window opening, use the window vent
panel (Panel H) by itself.
Fig. "a"
For window openings from 19" to 26", use the
window vent panel (Panel H) and extension
Panel I.
Fig. "b"
For window openings from 27" to 34", use the
window vent panel (Panel H) and extension
Panel J.
Fig. "c"
For window openings from 35" to 50", use the
window vent panel (Panel H) and extension
Panel J and Panel K.
Fig. "d"
Panel I (9
11
/16")
Panel H (18") Panel K (18")
Panel J (18")
Panel H
Panel H
18"
18"
Rivet E
Panel H
Panel I
Panel I
Panel H
19" - 26"
Panel J
Panel J
Panel H
Panel H
27" - 34"
27" - 34"
Panel K
Panel J
Panel H
Panel K
Panel J
Panel H
35" - 50"
35" - 50"
K
