14 INSTALLATION
NOTE
• The number of wire harnesses may vary
depending on the model.
• Ground wire is only present on some models.
4 Set the hinge cover g in place. Insert and
tighten the cover screw h.

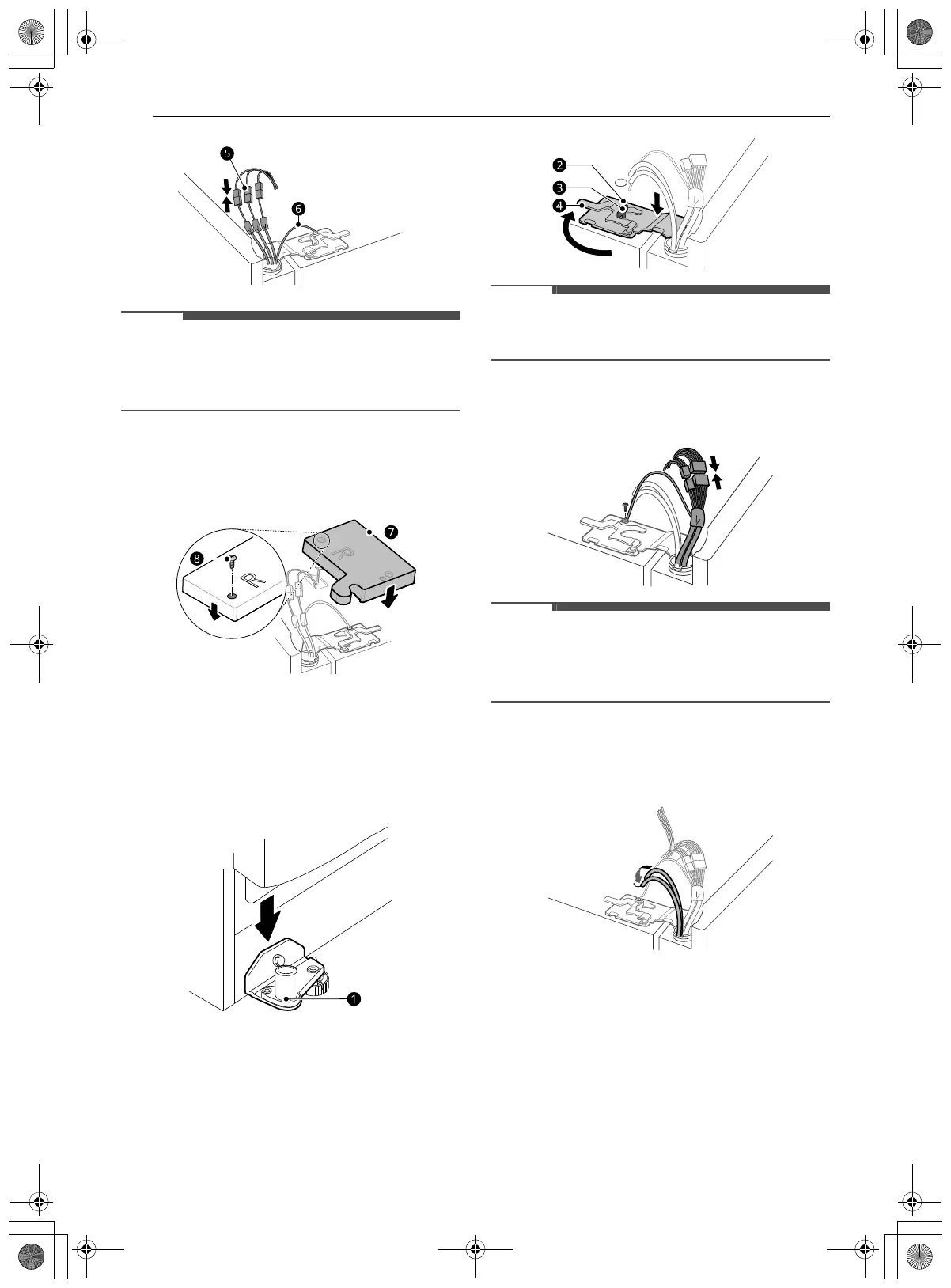

Assembling the Freezer Door
1 Install the freezer door onto the bottom hinge
pin a.
2 Fit the hinge b over the hinge lever latch c
and slot it into place. Rotate the lever d
clockwise and fasten the hinge.
NOTE
• Align the freezer door with the cabinet to help fit
the top hinge in place.
3 Connect all the wire harnesses and the
ground wire.
NOTE
• The number of wire harnesses may vary
depending on the model.
• Ground wire is only present on some models.
4 Push the water supply lines into the hole on
the top case and pull them through the
backplate.
5 Hold the water supply connection and gently
push in the collet
e to connect the water
supply lines as shown. Insert the tube at least
5/8 inch (15 mm) into the connector. Insert
the clip on the joint to fasten the tubes in
place.
en-us_main.book.book Page 14 Wednesday, August 13, 2025 10:09 AM
